Integration Module (Printer, ASCII, C-Bus)

PDX-PRT3
AVAILABLE TO ORDER
Integration Module (Printer, ASCII, C-Bus)

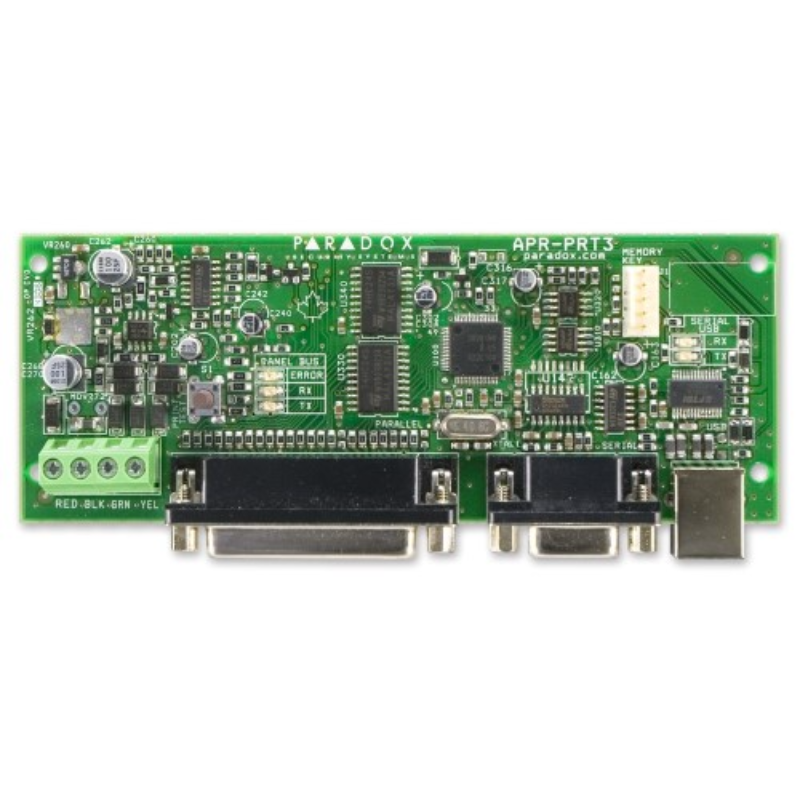

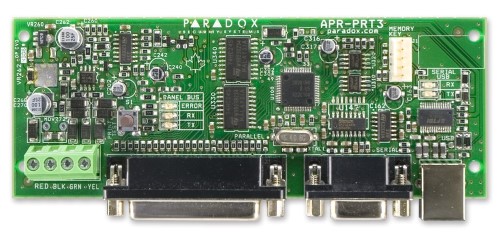

The Paradox PRT3 Integration Module is a printer module that allows you to automatically print live and stored events. It provides an interface between an EVO control panel and third party peripheral systems as well as including a USB port for direct PC connections. The PRT3 is also able to be upgraded in the field using the CV4USB converter kit.

  • In-field firmware upgradeable via a CV4USB and the In-field Firmware Upgrade Software
  • Supports ASCII/C-BUS protocols
  • 16 virtual inputs to trigger an action in the EVO control panel based on an event received from the peripheral system using ASCII or C-BUS protocol
  • 30 virtual PGMs to trigger an action in the peripheral system based on an event received from the EVO control panel using ASCII or C-BUS protocol
  • USB port for PC connections
  • Provides an interface between an EVO control panel and a third-party peripheral system
  • Automatically/manually prints reports of zone/system events via printer or PC
  • Parallel and serial port for printer connections
  • Assign to 1 or more partitions
  • 2,048 event buffer
  • Available in multiple languages
