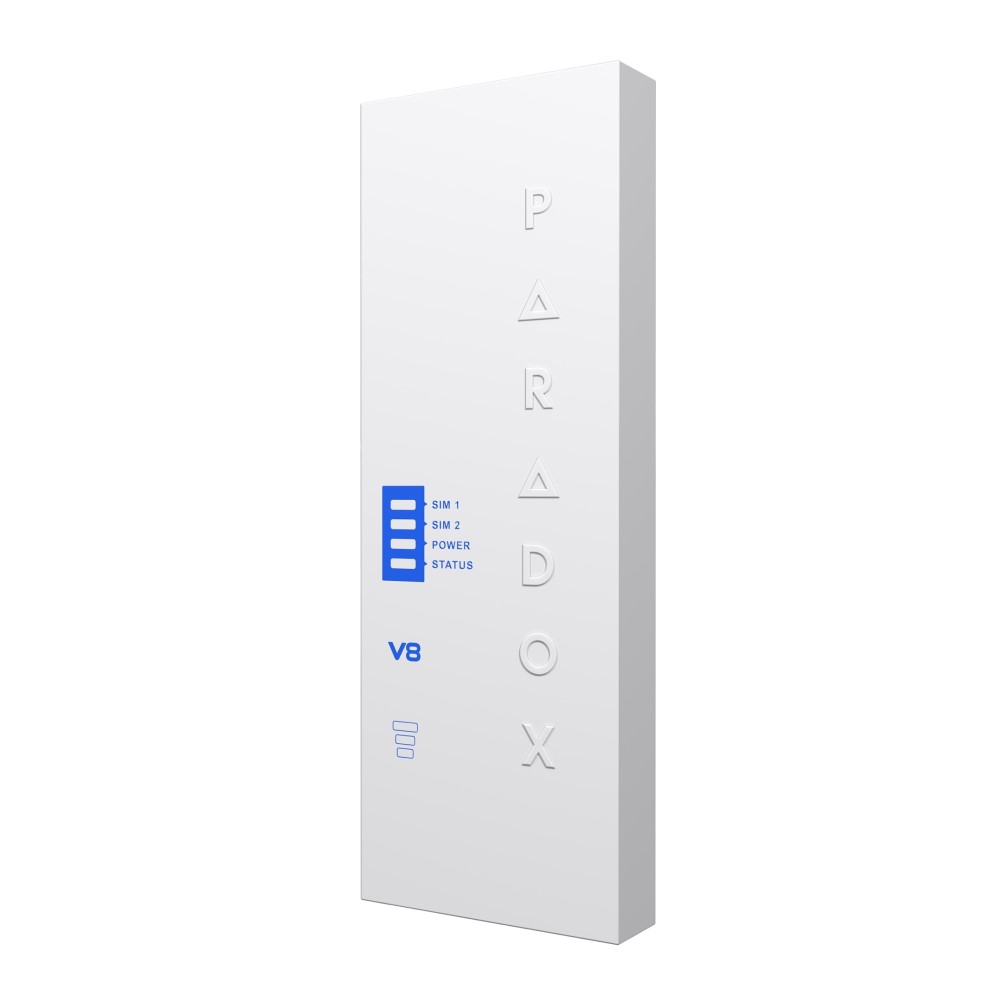

Paradox LTE MQTT Communicator Supports Neware, BabyWare, BlueEye, IPC10
The PDX-PCS265MQ Communicator Module provides access to Paradox alarm systems using the MQTT protocol on the LTE cellular network. It reports to an alarm monitoring station via Paradox IPC10 receivers only. The BlueEye smartphone application (Insite Gold is NOT supported) is supported for remote connection to the alarm system for arming and disarming and receiving push notifications. Mobile phone numbers for SMS text alerts can be setup by the end user from a touch screen keypad. Installer access for remote programming with BabyWare is also supported.
| Frequency | Bands | Provider |
| 700 MHz | B28 | Telstra, Optus, Vodafone |
| 850 MHz | B26 | Telstra |
| 850 MHz | B5 | Telstra, Vodafone |
| 1800 MHz | B3 | Telstra, Optus, Vodafone |
| 2100 MHz | B1 | Telstra, Optus, Vodafone |
| 2300 MHz | B40 | Optus |
| 2600 MHz | B7 | Telstra, Optus |
For a full list of cellular towers click here
- LTE
- Swan auto connection for BlueEye mobile application use
- Compatible with IPC10 back to base IP receiver
- Two SIM cards support for provider redundancy
- Control panel communication supervision
- Arm or disarm the system via text message (SMS)
- 4-wire serial connection to Panel
- Encrypted communication (128-bit)
- Dual tamper switch (wall and cover removal)
- Compatible with EVO Series, SP65, SP6000+, MG5050+
- Bands: B1/ B3/ / B5/ B7/ B8/ B20/ B28/ B40/ B41/ B38
- Antenna Bandwidth: 5 bands, wideband
- RF Power: Class 4 (2W) @ 850/1900 MHz, Class 2 (1W) @ 1800/1900 MHz, UMTS 850/1900 @ 0.25W (America), UMTS 900/2100 @ 0.25W (Europe}
- Voltage Input: 12 VDC nominal
- Current Consumption: 60 mA standby, 300 mA maximum
- Encryption: 128-bit (AES)
- SMS Protocol: 7-bit (GSM: 3GPP TS 23.038/GSM03.38) or 16-bit (UCS2 ISO/IEC10646)
- SIM Cards: LTE ONLY
- Humidity: 0 - 90% non-condensing
- Operating Temperature: -20 to 50 degrees Celsius
- Dimensions: 208 x 75 x 20 mm
- Certifications Class: II EN 50131-10 ATS Category SP5, AS/CA S042.1-2022, AS/CA S042.4-2022
The PDX-PCS265MQ Communicator Module provides access to Paradox alarm systems using the MQTT protocol on the LTE cellular network. It reports to an alarm monitoring station via Paradox IPC10 receivers only. The BlueEye smartphone application (Insite Gold is NOT supported) is supported for remote connection to the alarm system for arming and disarming and receiving push notifications. Mobile phone numbers for SMS text alerts can be setup by the end user from a touch screen keypad. Installer access for remote programming with BabyWare is also supported.
| Frequency | Bands | Provider |
| 700 MHz | B28 | Telstra, Optus, Vodafone |
| 850 MHz | B26 | Telstra |
| 850 MHz | B5 | Telstra, Vodafone |
| 1800 MHz | B3 | Telstra, Optus, Vodafone |
| 2100 MHz | B1 | Telstra, Optus, Vodafone |
| 2300 MHz | B40 | Optus |
| 2600 MHz | B7 | Telstra, Optus |
For a full list of cellular towers click here
- Bands: B1/ B3/ / B5/ B7/ B8/ B20/ B28/ B40/ B41/ B38
- Antenna Bandwidth: 5 bands, wideband
- RF Power: Class 4 (2W) @ 850/1900 MHz, Class 2 (1W) @ 1800/1900 MHz, UMTS 850/1900 @ 0.25W (America), UMTS 900/2100 @ 0.25W (Europe}
- Voltage Input: 12 VDC nominal
- Current Consumption: 60 mA standby, 300 mA maximum
- Encryption: 128-bit (AES)
- SMS Protocol: 7-bit (GSM: 3GPP TS 23.038/GSM03.38) or 16-bit (UCS2 ISO/IEC10646)
- SIM Cards: LTE ONLY
- Humidity: 0 - 90% non-condensing
- Operating Temperature: -20 to 50 degrees Celsius
- Dimensions: 208 x 75 x 20 mm
- Certifications Class: II EN 50131-10 ATS Category SP5, AS/CA S042.1-2022, AS/CA S042.4-2022
