Paradox LTE MQTT Communicator Supports Neware, BabyWare, BlueEye, IPC10

PDX-PCS265MQ
AVAILABLE TO ORDER
Paradox LTE MQTT Communicator Supports Neware, BabyWare, BlueEye, IPC10

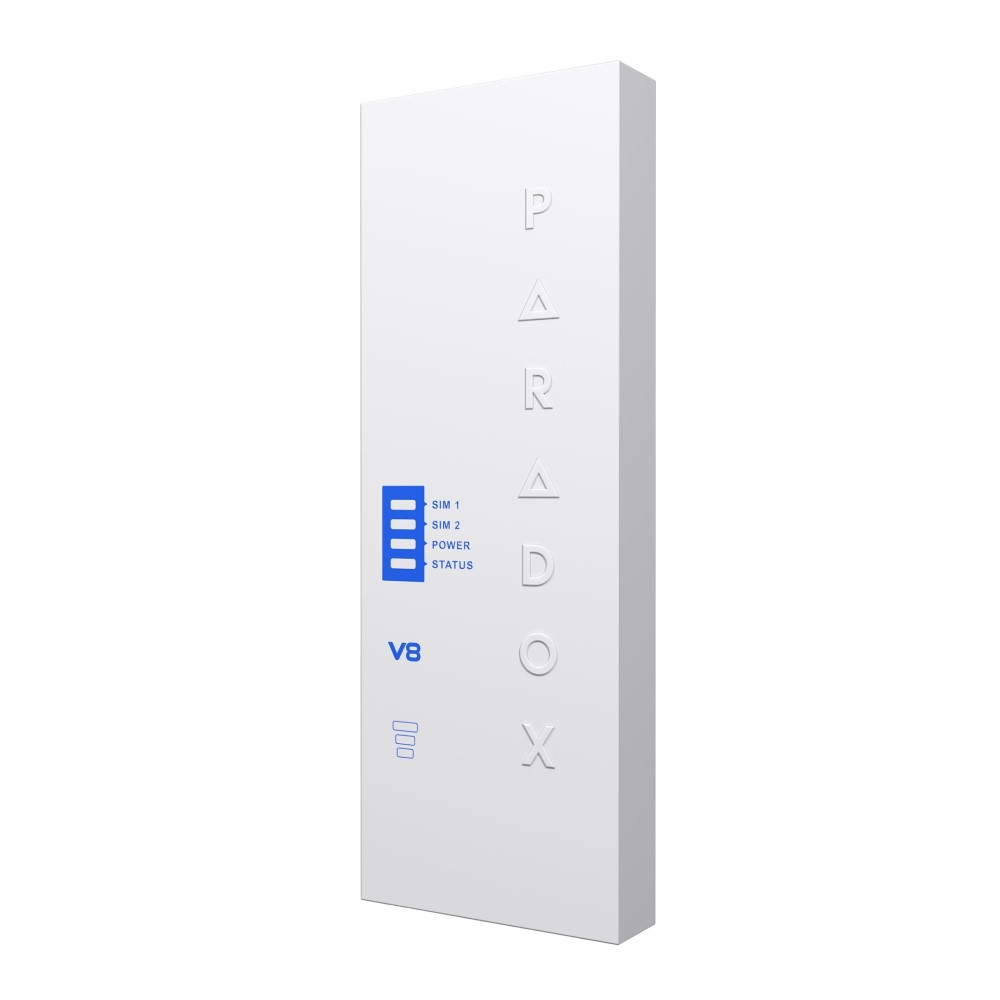

The PDX-PCS265MQ Communicator Module provides access to Paradox alarm systems using the MQTT protocol on the LTE cellular network. It reports to an alarm monitoring station via Paradox IPC10 receivers only. The BlueEye smartphone application (Insite Gold is NOT supported) is supported for remote connection to the alarm system for arming and disarming and receiving push notifications. Mobile phone numbers for SMS text alerts can be setup by the end user from a touch screen keypad. Installer access for remote programming with BabyWare is also supported.

Frequency Bands Provider
700 MHz B28 Telstra, Optus, Vodafone
850 MHz B26 Telstra
850 MHz B5 Telstra, Vodafone
1800 MHz B3 Telstra, Optus, Vodafone
2100 MHz B1 Telstra, Optus, Vodafone
2300 MHz B40 Optus
2600 MHz B7 Telstra, Optus



For a full list of cellular towers click here

  • LTE
  • Swan auto connection for BlueEye mobile application use
  • Compatible with IPC10 back to base IP receiver
  • Two SIM cards support for provider redundancy
  • Control panel communication supervision
  • Arm or disarm the system via text message (SMS)
  • 4-wire serial connection to Panel
  • Encrypted communication (128-bit)
  • Dual tamper switch (wall and cover removal)
  • Compatible with EVO Series, SP65, SP6000+, MG5050+

  • Bands: B1/ B3/ / B5/ B7/ B8/ B20/ B28/ B40/ B41/ B38
  • Antenna Bandwidth: 5 bands, wideband
  • RF Power: Class 4 (2W) @ 850/1900 MHz, Class 2 (1W) @ 1800/1900 MHz, UMTS 850/1900 @ 0.25W (America), UMTS 900/2100 @ 0.25W (Europe}
  • Voltage Input: 12 VDC nominal
  • Current Consumption: 60 mA standby, 300 mA maximum
  • Encryption: 128-bit (AES)
  • SMS Protocol: 7-bit (GSM: 3GPP TS 23.038/GSM03.38) or 16-bit (UCS2 ISO/IEC10646)
  • SIM Cards: LTE ONLY
  • Humidity: 0 - 90% non-condensing
  • Operating Temperature: -20 to 50 degrees Celsius
  • Dimensions: 208 x 75 x 20 mm
  • Certifications Class: II EN 50131-10 ATS Category SP5, AS/CA S042.1-2022, AS/CA S042.4-2022

add remove Description

No description available for this product

  • Bands: B1/ B3/ / B5/ B7/ B8/ B20/ B28/ B40/ B41/ B38
  • Antenna Bandwidth: 5 bands, wideband
  • RF Power: Class 4 (2W) @ 850/1900 MHz, Class 2 (1W) @ 1800/1900 MHz, UMTS 850/1900 @ 0.25W (America), UMTS 900/2100 @ 0.25W (Europe}
  • Voltage Input: 12 VDC nominal
  • Current Consumption: 60 mA standby, 300 mA maximum
  • Encryption: 128-bit (AES)
  • SMS Protocol: 7-bit (GSM: 3GPP TS 23.038/GSM03.38) or 16-bit (UCS2 ISO/IEC10646)
  • SIM Cards: LTE ONLY
  • Humidity: 0 - 90% non-condensing
  • Operating Temperature: -20 to 50 degrees Celsius
  • Dimensions: 208 x 75 x 20 mm
  • Certifications Class: II EN 50131-10 ATS Category SP5, AS/CA S042.1-2022, AS/CA S042.4-2022
