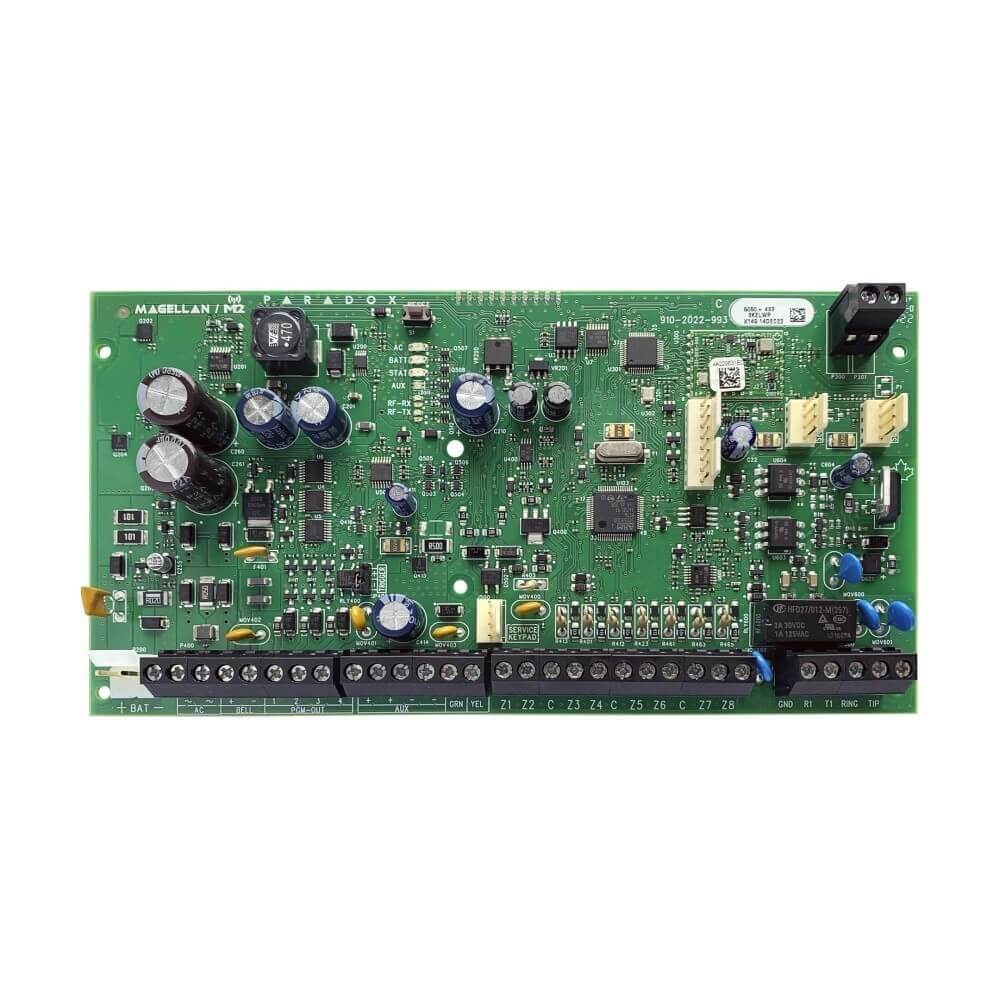

The Paradox PDX-MG5050+ is the successor to the MG5050 with a few enhancements, the main one being the increase to 8 on-board zones. The event memory has been increased to 512 events and the AUX output current has been increased to 1000mA, however, to obtain this output the CSD-T1630S-T 16VAC 3A transformer is required. If the standard 16VAC-1.5A plug pack is used, the AUX output current is limited to the standard 600mA. The MG5050+ also now includes a second serial port that is a backup IP reporting channel for the first serial port.

• Loaded with CSD default settings
• Supports zone doubling
• 1000mA AUX output
• 512 event history
• 2 Serial Ports & primary and backup IP reporting
• Touch screen keypads support installer quick menu programming
• Compatible with Insite Gold and BlueEye

User Manuals

• PDX-MG5050+ User Manual.pdf

• Power supply: 16VAC - 1.5A for 600mA output
• Power supply: 16VAC - 3A for 1000mA output
• Battery charger: 13.8V DC @700mA
• Zones: 8 doubled to 16 and expandable to 32
• PGM's: 5 expandable to 16
• User codes: 32
• Partitions: 2
