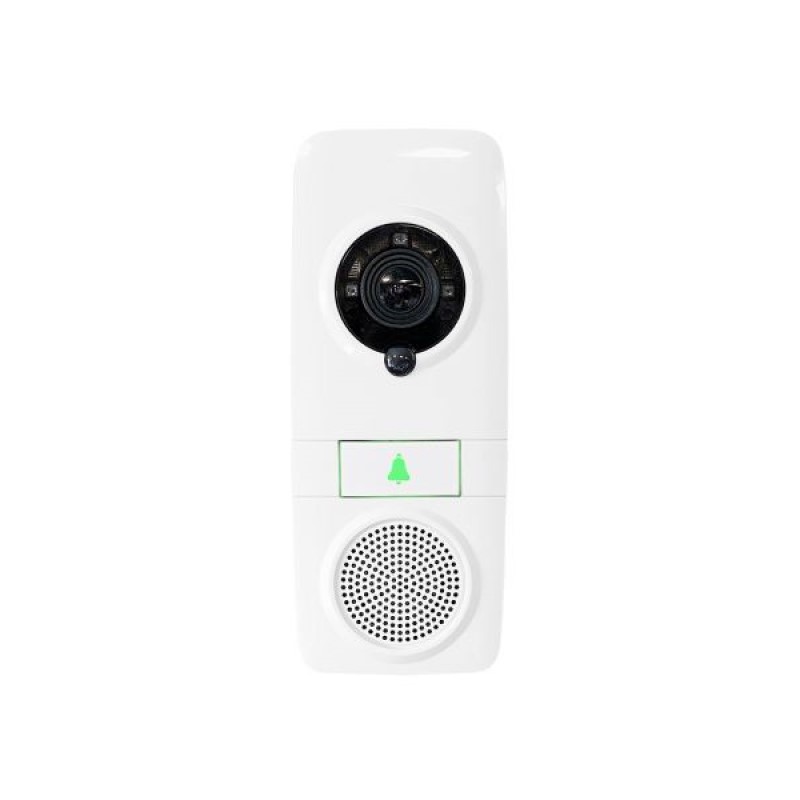

The Paradox PDX-DB7 Video Doorbell adds surveillance protection to your home or business security. Integrating security with style, it gives verification of every visitor to your property and allows you to clearly see and hear who is at your entrance 24/7. Coupled with Paradox Swan Servers, events can be stored for up to 60 days.

With Full HD video (1920 x 1080) and two-way communication speakerphone, the PDX-DB7 delivers crisp, high-quality conversations. Complimented by an IR illuminator, it continues to provide exceptional video into the night and in less-than-optimal lighting conditions. Push notifications will alert users of all visitors (even if the doorbell is not pressed) with its PIR sensor and video detection software.

The PDX-DB7 is not a standalone unit, it must be integrated with a Paradox alarm system. Door opening can be easily configured with a PGM or an ACM12 panel. Video and audio data is encrypted with AES. It uses H.264 video data compression to save bandwidth.

This item is not supported by Insite Gold, it will only work with BlueEye where all configuration is carried out.

Important Things You Need To Know

• The DB7 requires external power and a 2.4GHz Wi-Fi connection to the internet
• The alarm panel firmware should be at the latest available
• The alarm panel must be dated 2017 or later
• The Installer requires a Paradox login
• Insite Gold does not support the DB7
• The PC Password cannot contain zeros
• All configuration is done on BlueEye (BabyWare does not support the DB7

• Answer the doorbell on your smart phone from any location
• View and listen at any time
• Built-in, high-quality speakerphone
• Trigger the on-board siren from your smart phone to deter intruders
• Receive a motion notification when someone approaches the doorbell
• Record or take a snapshot manually
• Cloud storage with pre-event recording
• Day/Night mode with IR illumination
• Compatible with Paradox systems dated 2017 and later
• Requires a 16V AC plug pack
• Optional angle mount bracket

Datasheets

• PDX-DB7 Datasheet.pdf

• Power: 16V AC - 1.5A
• Internet Connection: IP150/+ V5 or higher
• Wi-Fi: 2.4GHz
• Max Units: 4 per site
• Environmental: IP54
• Smart Phone App: BlueEye only
