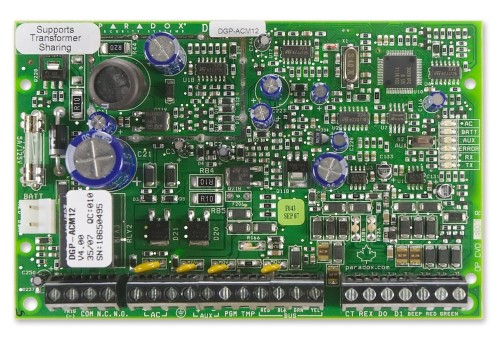

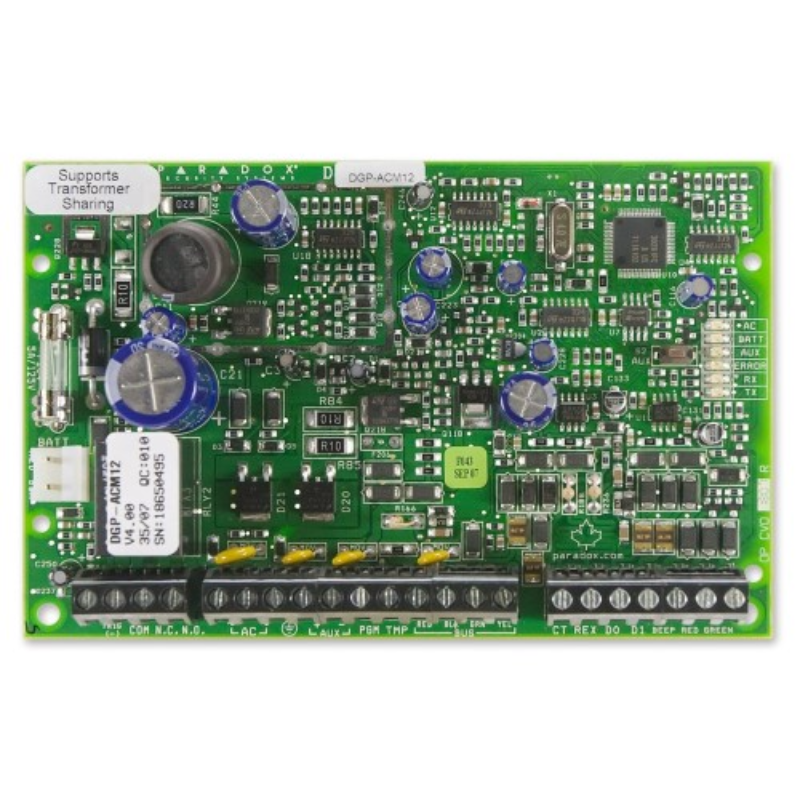

Paradox Single Door Access Control Module for EVO Panels Only
PDX-ACM12
AVAILABLE TO ORDER
Paradox Single Door Access Control Module for EVO Panels Only
The PDX-ACM12 provides the EVO system with sophisticated access control features including access schedules, Door Open too long, Door forced alarms and compatibility with Paradoxs 4 wire readers or industry standard wiegand readers
- Connections for 1 door (card reader, REX, door contact and lock output)
- In-field firmware upgradeable via CONV4USB and WinLoad
- Automatic unlocking schedule
- Door Left Open and Door Forced Open options
- Door unlock and extended delay timers
- Unlock door manually with button or PGM event
- Safe Mode option (local storage of specified credentials in the event of communication loss)
- Fits in a 20cm x 25.5cm x 7.6cm metal box
- Built-in supervised 1.5A switching power supply
The PDX-ACM12 provides the EVO system with sophisticated access control features including access schedules, Door Open too long, Door forced alarms and compatibility with Paradoxs 4 wire readers or industry standard wiegand readers
