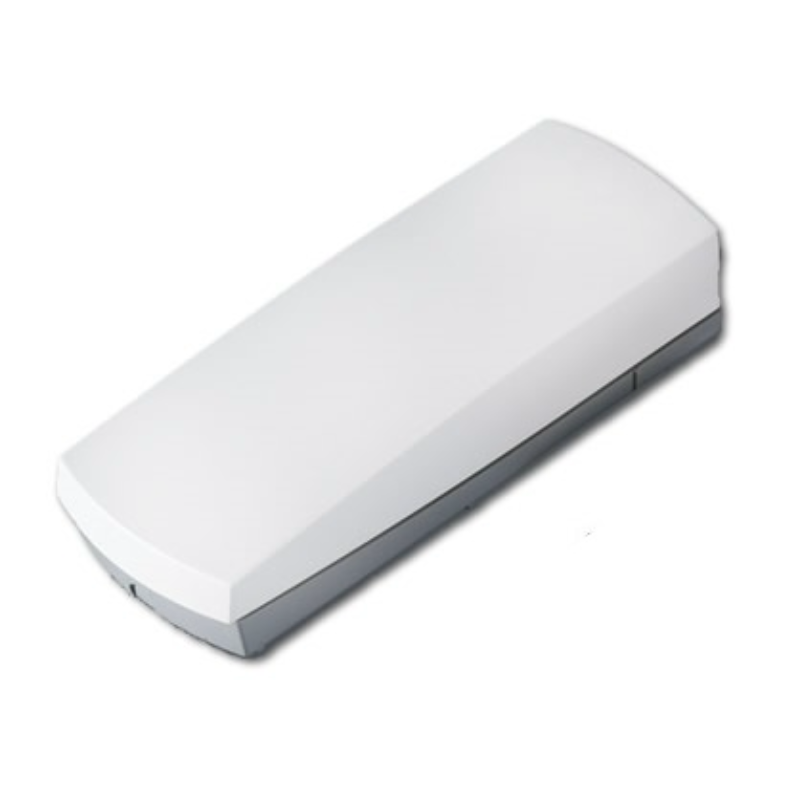

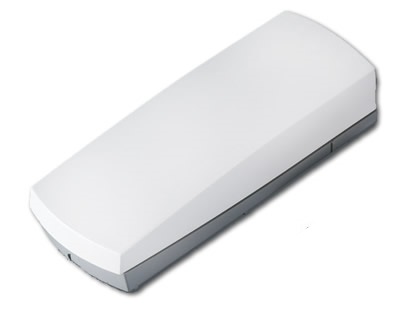

Paradox Wireless PGM, 2-Way, 433MHz

Home // Alarm Equipment // Paradox Alarms // Magellan Wireless // Wireless PGM // Access Control // Paradox EVO // Magellan Wireless // Wireless PGM // Wireless Systems // Paradox Magellan // Wireless Accessories // Paradox Wireless PGM, 2-Way, 433MHz

Code: PDX-2WPGM
Brand: Paradox
Product Details
Paradox Wireless PGM, 2-Way, 433MHz

Overview
Features
Specifications
Downloads

2-Way communication allows the 2WPGM to receive commands from Magellan Transceivers and then confirm the command. Backup Alarm Reporting option (activates PGM output if communication between the Magellan All-In-One- Consoles and the 2WPGM is lost)

1 fully programmable 5A relay output
Deactivate PGM after event or timer
Can be powered by the PA12
Universal transmitter input (N.O/N.C)
Typical wireless range with MG6160 and MG6250: 35m
Typical wireless range with MG5050 and RTX3: 70m
Universal transmitter input (N.O./N.C.)
Anti-tamper switch

Requires AC or DC input voltage (6V AC to 16.5V AC or 5V DC to 30V DC)
Wireless frequency: 433MHz
Dimensions: 12.5m x 4.6cm x 2.5cm
