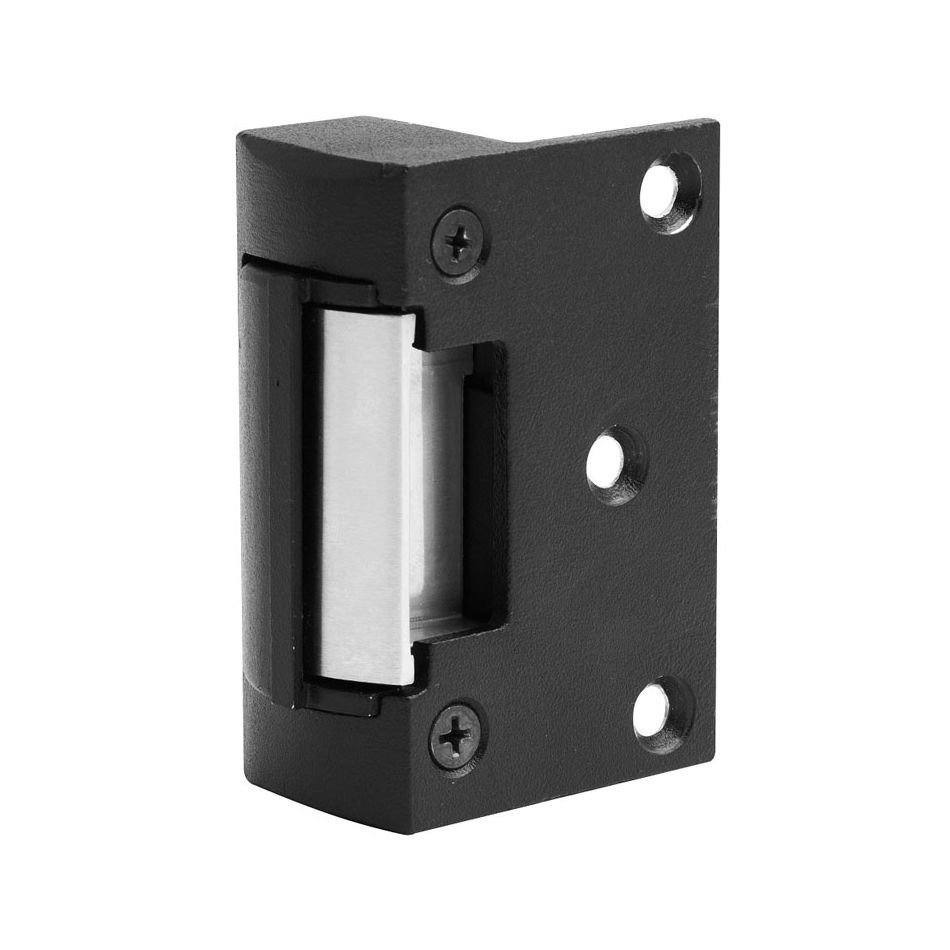

Lockwood ES150-1M Weather Resistant Strike, Surface Mount, 680kg, PTL/PLO, 12V DC
PD-ES150-1M
AVAILABLE TO ORDER
Lockwood ES150-1M Weather Resistant Strike, Surface Mount, 680kg, PTL/PLO, 12V DC
The Lockwood series ES150 is a surface mounted electric strike suitable for use with rim or surface type dead latches. This strike is easy to install and can be simply controlled by a keypad, keyswitch or integrated into any access control system.
- Configurable to fail safe or fail secure
- Easy installation and suitable for steel and wooden door frames
- Stainless steel striker for extra strength and durability
- Solenoid rated for continuous use
- IP56 weather resistant
- Voltage: 12V DC
- Current: 243 mA / 12Vdc
- Solenoid: Solenoids rated for continuous use
- Monitoring: None
- Holding Force: 680 kg static strength rating
- Endurance: Cycle tested to 1,000,000 operations
- Environment: Operational temperature range - 20 to to + 60 degrees celsius.
- IP Rating: IP56
- Body: Solid Stainless Steel Construction
- Keeper: Stainless Steel
- Latch: Suitable for 15mm latchbolt with 3mm door gap
Datasheets
The Lockwood series ES150 is a surface mounted electric strike suitable for use with rim or surface type dead latches. This strike is easy to install and can be simply controlled by a keypad, keyswitch or integrated into any access control system.
- Voltage: 12V DC
- Current: 243 mA / 12Vdc
- Solenoid: Solenoids rated for continuous use
- Monitoring: None
- Holding Force: 680 kg static strength rating
- Endurance: Cycle tested to 1,000,000 operations
- Environment: Operational temperature range - 20 to to + 60 degrees celsius.
- IP Rating: IP56
- Body: Solid Stainless Steel Construction
- Keeper: Stainless Steel
- Latch: Suitable for 15mm latchbolt with 3mm door gap
