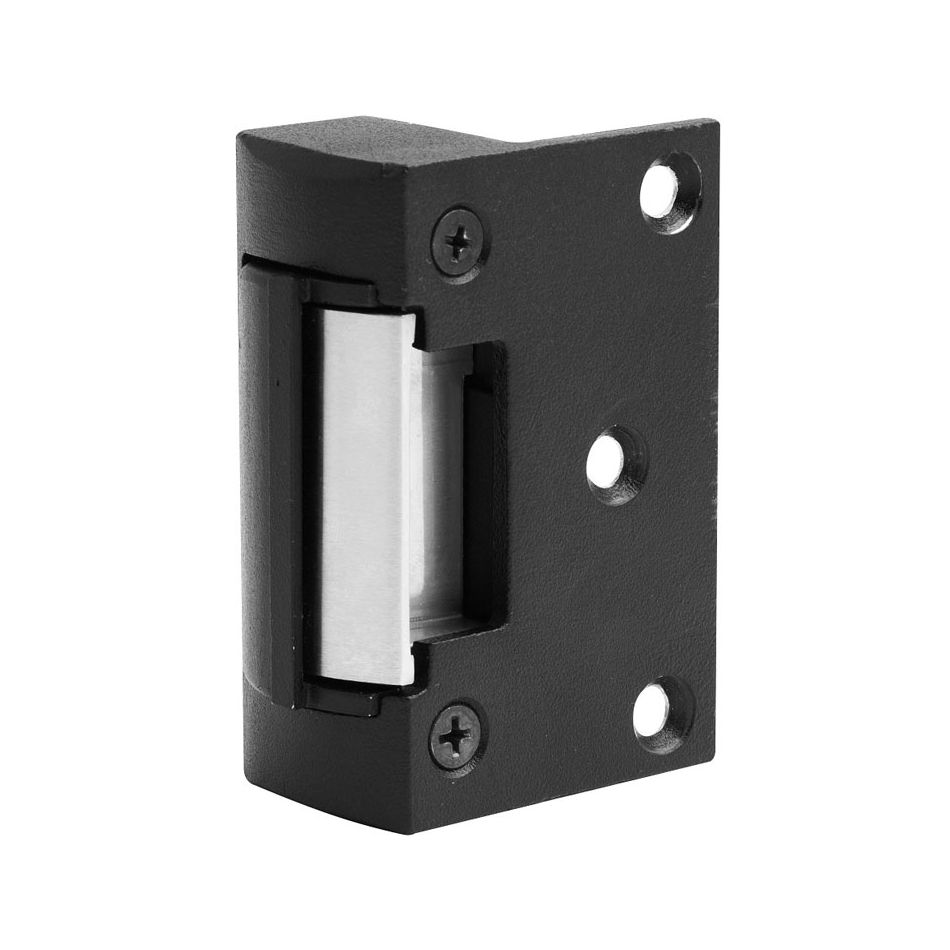

Lockwood ES150-1M Weather Resistant Strike, Surface Mount, 680kg, PTL/PLO, 12V DC

The Lockwood series ES150 is a surface mounted electric strike suitable for use with rim or surface type dead latches. This strike is easy to install and can be simply controlled by a keypad, keyswitch or integrated into any access control system.

• Configurable to fail safe or fail secure
• Easy installation and suitable for steel and wooden door frames
• Stainless steel striker for extra strength and durability
• Solenoid rated for continuous use
• IP56 weather resistant

Datasheets

• PD-ES150-1M Datasheet.pdf

• Voltage: 12V DC
• Current: 243 mA / 12Vdc
• Solenoid: Solenoids rated for continuous use
• Monitoring: None
• Holding Force: 680 kg static strength rating
• Endurance: Cycle tested to 1,000,000 operations
• Environment: Operational temperature range - 20 to to + 60 degrees celsius.
• IP Rating: IP56
• Body: Solid Stainless Steel Construction
• Keeper: Stainless Steel
• Latch: Suitable for 15mm latchbolt with 3mm door gap
