Lockwood EL110 Cabinet Lock, 150kg, PTO (Fail Secure), Non Monitored, 12V DC, 8m Cable

PD-EL110-2-8M
AVAILABLE TO ORDER
Lockwood EL110 Cabinet Lock, 150kg, PTO (Fail Secure), Non Monitored, 12V DC, 8m Cable

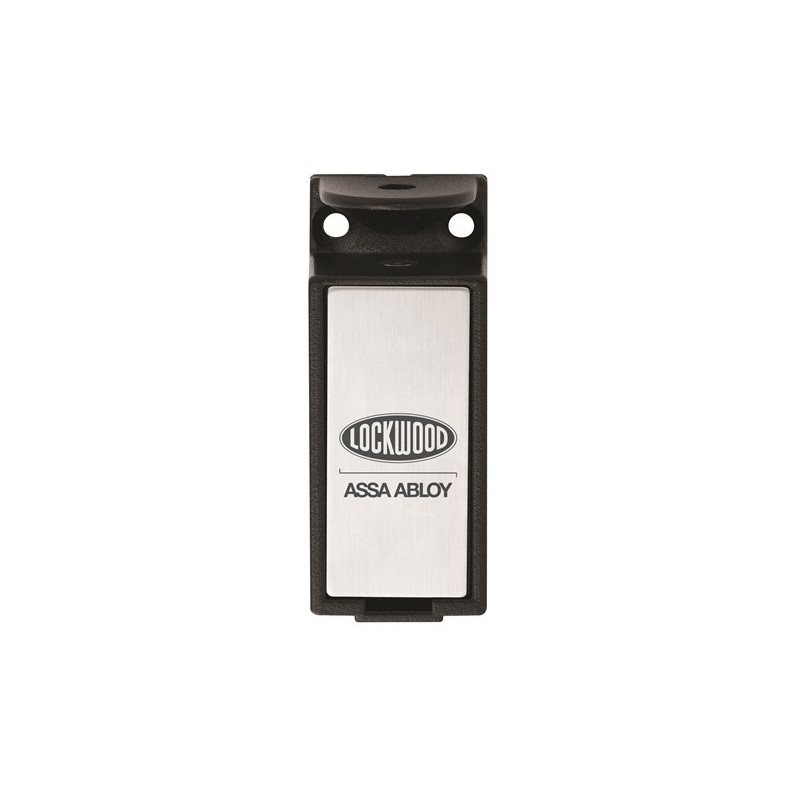

The Lockwood Padde Series EL110 Electric Cabinet Lock from Assa Abloy is a compact, cast aluminium lock specially designed for cabinets having either swing or sliding doors. The Cabinet Lock can be surface mounted either vertically or horizontally and offers maximum flexibility for ease of installation.

EL110 cabinet locks can also be controlled by any existing access control system which can complement Inner Range's Inception or Integriti systems. The EL110 is cost efficient, robust, easy to install and suitable for one or multiple cabinet applications.

Available in PTO (Power to Open)/Fail Safe or PTL (Power to Lock)/Fail Secure options, as well as an 8m cable option for large cabinet arrays that require long reach.

For more information visit Lockweb.com

  • Fail safe/fail secure changeable on site
  • Flexible alignment: has a 5mm XY adjustment after installation
  • Self latching in fail secure mode
  • Solenoid rated for continuous use

  • Voltage: 12V DC
  • Current: 187mA @ 12V DC
  • Holding force: 150kg
  • Configuration: Fail secure (site changeable)
  • Endurance: Cycle tested to 1,000,000 operations
  • Operational temperature: -20 to +60 degrees Celsius
  • Material: Cast Aluminium
  • Cable length: 8m

No description available for this product
  • Voltage: 12V DC
  • Current: 187mA @ 12V DC
  • Holding force: 150kg
  • Configuration: Fail secure (site changeable)
  • Endurance: Cycle tested to 1,000,000 operations
  • Operational temperature: -20 to +60 degrees Celsius
  • Material: Cast Aluminium
  • Cable length: 8m
