Lockwood CL-150S Cabinet Lock, 100kg, PTO, Monitored, 12/24V DC

PD-CL-150S
AVAILABLE TO ORDER

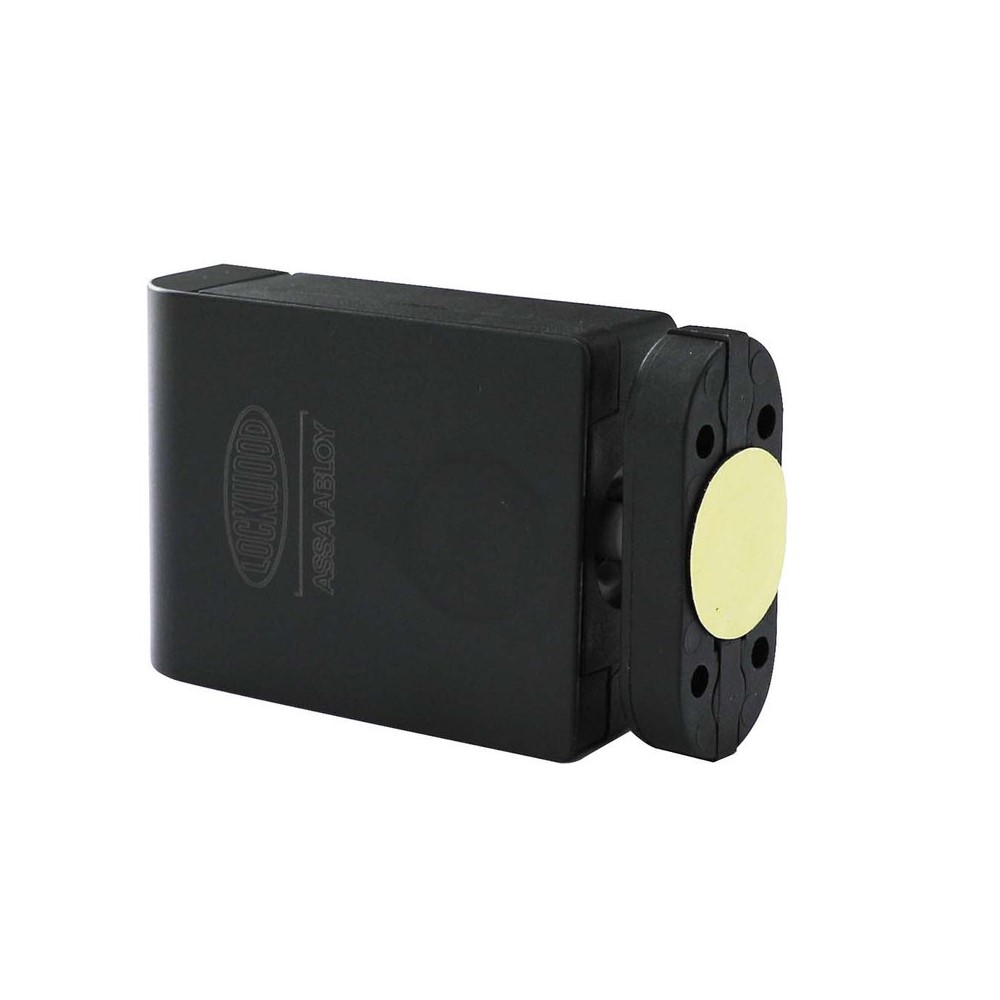

Lockwood CL-150S Cabinet Lock, 100kg, PTO, Monitored, 12/24V DC

The Lockwood PD-CL-150S electric cabinet lock is a compact and versatile locking solution for lockers, cupboards, drawers, and applications for light weight openings that swing or slide. It also provides a spring release function that pops open the door, removing the requirement for handles and keys. It includes lock state monitoring, operates on 12 or 24VDC and has a holding force of 100kg.

Environments such as universities, schools, hospitals, aged care, or medical centres that require select personnel to access items would find this lock to be a highly effective locking solution.

  • Spring load release
  • Lock status monitoring
  • Top or edge strike plunger position
  • Fail Secure

  • Power: 12 or 12V DC (jumper position defined)
  • Operating current: 900mA (12V), 450mA (24V)
  • Lock monitor output: COM/NC/NO relay
  • Holding force: 100kg
  • Minimum door width: 25cm
  • Weight: 110g
  • Dimensions: 67.5 L x 45 W x 21.5 H (mm - with plunger engaged)

No description available for this product
  • Power: 12 or 12V DC (jumper position defined)
  • Operating current: 900mA (12V), 450mA (24V)
  • Lock monitor output: COM/NC/NO relay
  • Holding force: 100kg
  • Minimum door width: 25cm
  • Weight: 110g
  • Dimensions: 67.5 L x 45 W x 21.5 H (mm - with plunger engaged)
