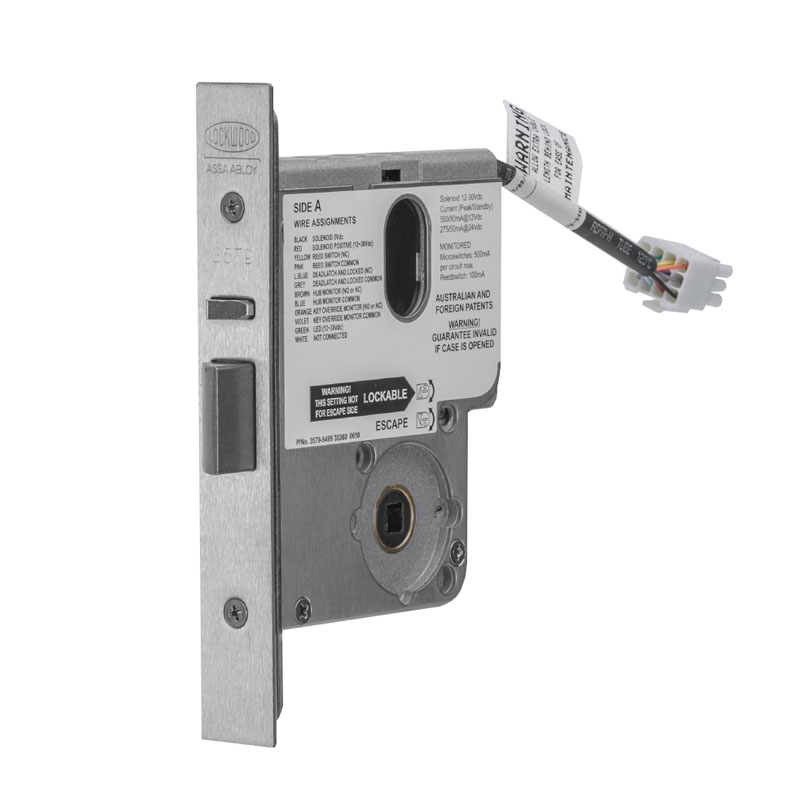

3579 Electric Mortice Lock, 60mm Backset, Monitored KOM, PTO/PTL, 12-24V DC (SCEC)

PD-3579ELM0SC
AVAILABLE TO ORDER
3579 Electric Mortice Lock, 60mm Backset, Monitored KOM, PTO/PTL, 12-24V DC (SCEC)

For use in high security government, institutional and commercial projects. The 3579 Series Mortice Lock has been successfully SCEC approved for secure area applications.

  • All handling type features of the lock (including hub selection, anti-lockout screw and reversible latch are accessible without removing the latch
  • 570 oval type cylinders and retaining pin can be used (cylinder must also be SCEC approved for secure area)
  • 2 x 1.2mm stainless steel plates fixed through lock provides increased strength to cylinder and latch areas of the lock
  • 12V / 24V DC
  • 500mA max, 80mA holding current @ 12V DC
  • 275mA max, 50mA holding current @ 24V DC
