Lockwood ES8100 V Lock, 1000kg, Monitored, PTL/PTO, 12-24V DC

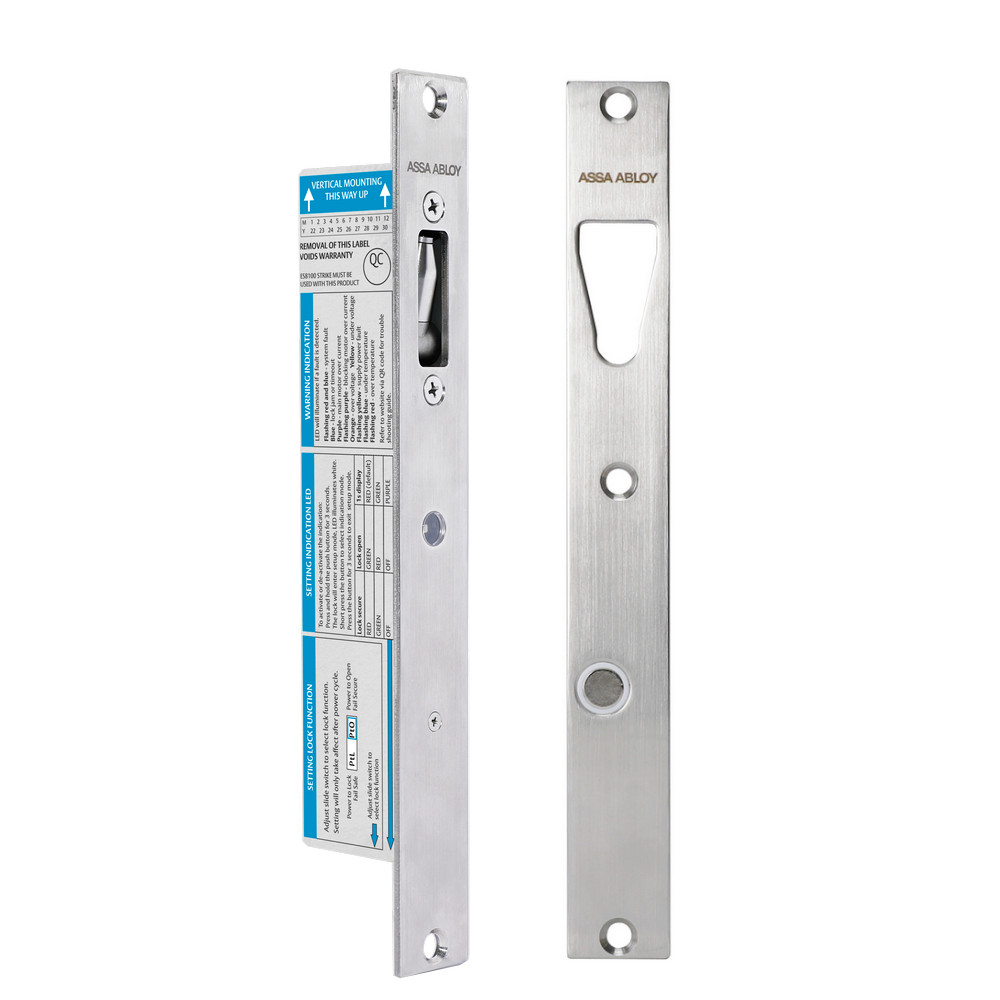

The Lockwood PD-108100-000 ES8100 V Lock is a redesign of the ES8000 V Lock. The PD-108100-000 has been engineered provide a higher preload rating from 25kg to 100kg, integrated system health status LED indication, increased door misalignment correction from 7mm to 12mm and a simplified PTL/PTO field configuration setting. It contains a high torque motor that drives the bolt in a hammer fashion into a V shaped cavity in the strike plate, automatically aligning the door when locking.
The PD-108100-000 can be mortice mounted and concealed from view or surface mounted, with the inclusion of an optional kit (PD-208000-000). A slim design with classic satin stainless-steel faceplate, makes this lock a product with great aesthetic appearance and easy installation.
- Unlocks under a Pre-Load of up to 100kg in 3-wire mode, 15kg in 2-wire mode
- IP53 rated for external environment applications
- Allows for door misalignment of up to 12mm total (+/-6mm)
- Door position and lock status monitoring
- LED indication for system health status
- Easy one-step, PTL/PTO field configuration selection
- Optional Surface / Glass mount Kit (PD-208000-000)
- Vertical or horizontal mounting options
- Power input: 11.4 - 26V DC
- Current draw: 1000mA @ peak, 35mA @ idle
- Holding capacity: 1,000kg
- Outputs: Lock position COM/NO/NC, door position COM/NC
- Weather proofing: IP53
- Operating temperature: -10 to +60 degrees Celsius
- Endurance: 500,000 operations
- Dimensions: Body: 210L x 24W x 42D (mm), Faceplate: 256L x 30W (mm), Strike Plate: 256L x 30W (mm)
Datasheets
- Power input: 11.4 - 26V DC
- Current draw: 1000mA @ peak, 35mA @ idle
- Holding capacity: 1,000kg
- Outputs: Lock position COM/NO/NC, door position COM/NC
- Weather proofing: IP53
- Operating temperature: -10 to +60 degrees Celsius
- Endurance: 500,000 operations
- Dimensions: Body: 210L x 24W x 42D (mm), Faceplate: 256L x 30W (mm), Strike Plate: 256L x 30W (mm)
