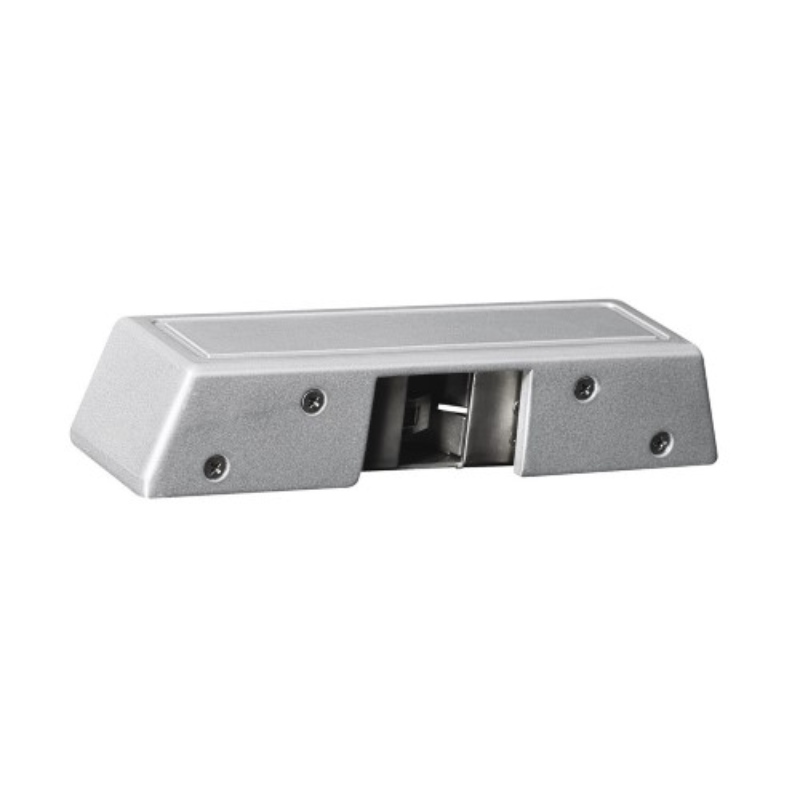

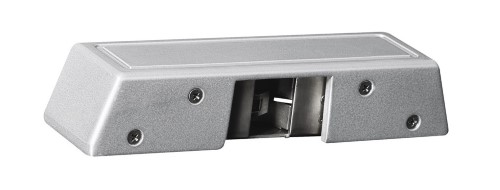

Lockwood ES6000S-1 Hook Lock, 680kg, Monitored, PTL, Surface Mount, 12/24V DC

The Lockwood ES6000 is suitable for sliding doors and can be installed to wood or steel door frames. ES6000 is heavy-duty, designed with its high pre-load (side load) capability of up to 680Kg, high holding force of up to 700Kg and up to 4 hour fire rating. Both power to open and power to lock models are available. The ES6000 is finished with elegant satin stainless steel faceplate. ES6000 can be mounted vertically or horizontally with self-latching ability without power, for fire applications.

• 680Kg Holding Force
• Power to open and power to lock versions available
• Pre-load (Side load) capable: operates freely with up to 300Kg of side pressure with 680Kg holding force
• Self latching: will self latch without power, for fire applications, Monitored: locked and unlocked
• Multi voltage: automatic selection 12V - 30V DC with back EMF protection and reverse polarity direction
• Multi orientation: may be mounted vertically or horizontally
• 12V - 30V DC
• 12V DC - 250mA after 1 sec (Initial inrush 830mA)
• 24V DC - 140mA after 1 sec (Initial inrush 530mA)

Datasheets

• PD-106001-0x0 Datasheet.pdf
