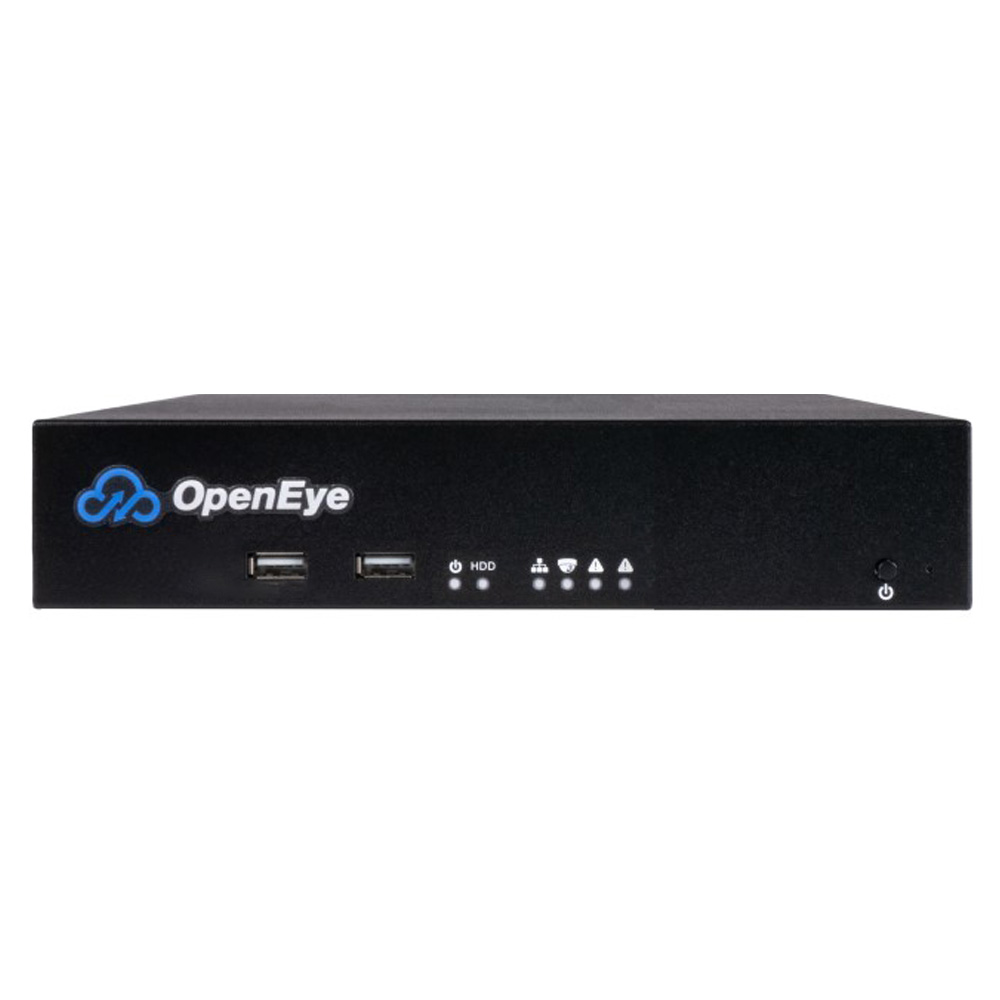

The OE-MDX0804 is a compact, cloud-managed appliance from OpenEye's MD-Series. It is designed to offer a cost-effective, IP recording solution with a built-in 8-channel PoE switch. The device features dual network ports, relay/sensor connections and runs a secure Linux operating system. A solid-state OS hard drive comes standard to improve reliability and provide faster boot times. The OE-MDX08 is fully integrated with OpenEye Web Services and offers centralized user management, single sign-on convenience, mobile apps, and a web client that allows for easy remote connection to your recorders.

• Fully integrated with OpenEye Web Services (OWS)
• Solid state OS drive for improved reliability and fast boot times
• Complete remote operation and administration with Web Connect
• Record up to 24 channels of IP video per server
• 8 channel on-board PoE
• Online User Management via OWS
• Cloud video export and sharing
• Cloud-based health monitoring and reporting with real time alerts
• Remote software updates with no need to be on-site
• Advanced cyber security including multi-factor authentication for remote access
• Support for all major Windows and Mac browsers with no plug-in to install
• Mobile apps available for Android and iOS
• Dual network ports allow use of an isolated camera network for added reliability and security

Datasheets

• OE-MDXxxxx Datasheet.pdf

User Manuals

• OE-MDXxxxx User Manual.pdf

• Max Channel Count: 24
• Max Recording Rate: 100Mbps
• Dimensions: 221 x 44 x 275mm
• Weight: 1.59kg
• Power Consumption: 135W
