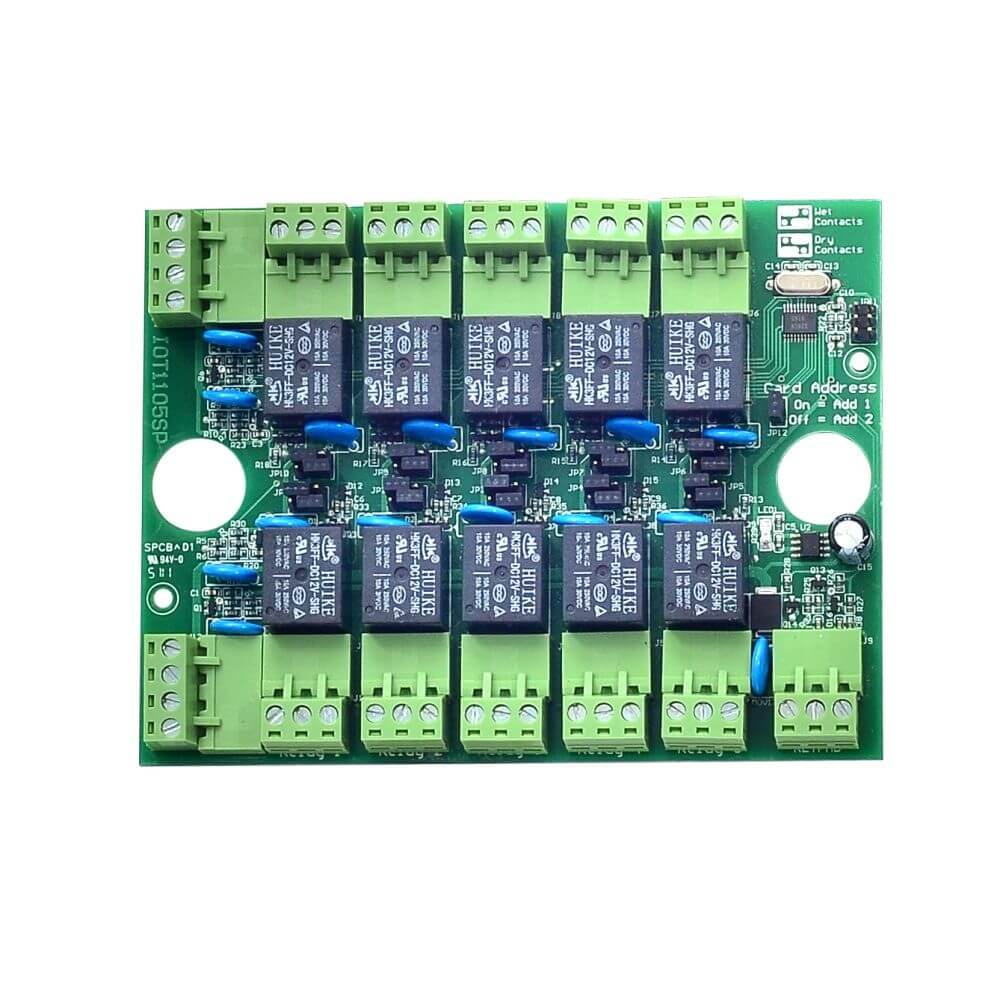

Nemtek Druid Relay Expansion Card, up to 10 Relays

NEM-EE-LCD2XREL
AVAILABLE TO ORDER
Nemtek Druid Relay Expansion Card, up to 10 Relays

Nemtek's NEM-EE-LCD2XREL Druid expansion card can be used to increase the number of information inputs and outputs from the energiser.

  • Four digital inputs which can be used to switch the individual zones on/off and to switch between high and low voltage for each zone
  • Ten relay outputs which indicate:
    • Mains failure
    • Low battery zone 1/zone 2 alarms
    • Zone 1 and zone 2 check fence alarms
    • Service conditions
    • Tamper conditions
    • Communication timeouts
  • Can be installed in the energiser housing
  • Robust surge protection is included on all inputs and outputs
  • All relays can be individually configured to be independent dry contacts or common-ground wet contacts with 12V nominal output

  • Size: L180mm x W112mm x H22mm
  • Weight: 260g
  • Power supply: 10V - 15V DC

add remove Description

No description available for this product

  • Size: L180mm x W112mm x H22mm
  • Weight: 260g
  • Power supply: 10V - 15V DC
