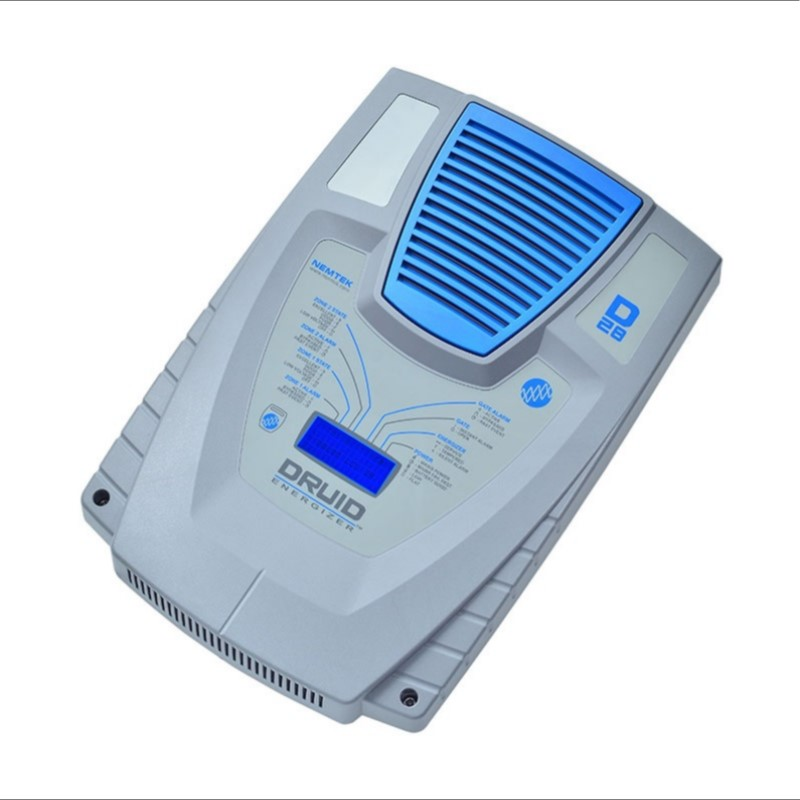

Nemtek Druid 28, LCD Energiser, 2 Zones, 8 Joule

The Nemtek NEM-E-DRUID28LCD is an LCD dual zone energizer. The LCD display in the Druid range makes information on the status and performance of the energizer quick and easy to read. Using the Adaptive Power Technology (APT) pioneered by Nemtek, these energizers offer a unique technology to detect how much power a fence can accept and handle before it starts to arc and waste energy. This maximises the power on the fence and minimises false alarms. Synchronisation between energizers can be achieved by using traditional network cabling or by the Druid synchronisation modules which use orbiting satellites and eliminate the need for cabling between the energizers.

• Two 3.7 Joule independently monitored and controlled zones
• Each zone can be set independently to be on/off or in high/low voltage modes
• Can be programmed into alarm sensor mode allowing it to be integrated into a separate burglar alarm system
• Four zones can be created by linking two Druid 28LCD energizers together using the Druid four-zone keypad
• Built-in alarm monitors tampering or faults on the high voltage and earth fence wires.
• Connectable to armed response radio or GSM modules
• Lightning and power surge protection
• Intelligent power saving to extend battery life
• Built-in gate alarm input to monitor if the gate is open or closed
• Optional keypad for controlling and programming the energizer. This allows the user to control the energizer with up to two keypads
• Walk test mode for easy fence testing
• The LCD background colour changes to easily identify the fence condition

Datasheets

• NEM-E-DRUID2xLCD Data Sheet.pdf

User Manuals

• NEM-E-DRUID2xLCD User Guide.pdf

• Enclosure size: 400(L) x 270(W) x 125(D)mm
• Weight: 5.7kg excluding battery (7AH), 8.0kg including battery (7AH)
• IP rating: IPx4
• Operating temperature: -10C to 50C
• Operating humidity: less than 80% non-condensing
• Electrical supply voltage: 240V
• Typical power consumption: 18VA (normal operating conditions)
• Standby Time: 24hrs (fully charged battery)
• Energy output: 3.7 Joule per zone (500 Ohms load)
• Open circuit voltage: 9000V
