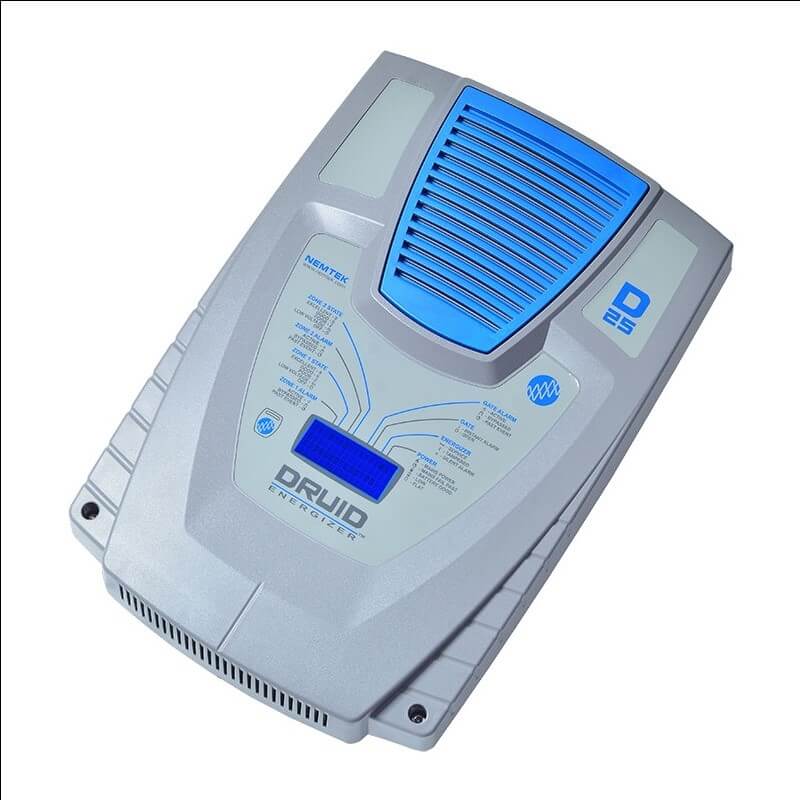

Nemtek Druid 25, LCD Energiser, 2 Zones, 5 Joule
The Nemtek NEM-E-DRUID25LCD is an LCD dual zone energizer. The LCD display in the Druid range makes information on the status and performance of the energizer quick and easy to read. Using the Adaptive Power Technology (APT) pioneered by Nemtek, these energizers offer a unique technology to detect how much power a fence can accept and handle before it starts to arc and waste energy. This maximises the power on the fence and minimises false alarms. Synchronisation between energizers can be achieved by using traditional network cabling or by the Druid synchronisation modules which use orbiting satellites and eliminate the need for cabling between the energizers.
Two 2.4 Joule independently monitored and controlled zones
Each zone can be set independently to be on/off or in high/low voltage modes
Can be programmed into alarm sensor mode allowing it to be integrated into a separate burglar alarm system
Four zones can be created by linking two Druid 25LCD energizers together using the Druid four-zone keypad
Built-in alarm monitors tampering or faults on the high voltage and earth fence wires.
Connectable to armed response radio or GSM modules
Lightning and power surge protection
Intelligent power saving to extend battery life
Built-in gate alarm input to monitor if the gate is open or closed
Optional keypad for controlling and programming the energizer. This allows the user to control the energizer with up to two keypads
Walk test mode for easy fence testing
The LCD background colour changes to easily identify the fence condition
- Enclosure size: 400(L) x 270(W) x 125(D)mm
- Weight: 5.7kg excluding battery (7AH), 8.0kg including battery (7AH)
- IP rating: IPx4
- Operating temperature: -10C to 50C
- Operating humidity: < 80% non-condensing
- Electrical supply voltage: 240V
- Typical power consumption: 18VA (normal operating conditions)
- Standby Time: 24hrs (fully charged battery)
- Energy output: 2.4 Joule per zone (500 Ohms load)
- Open circuit voltage: 9000V
- Enclosure size: 400(L) x 270(W) x 125(D)mm
- Weight: 5.7kg excluding battery (7AH), 8.0kg including battery (7AH)
- IP rating: IPx4
- Operating temperature: -10C to 50C
- Operating humidity: < 80% non-condensing
- Electrical supply voltage: 240V
- Typical power consumption: 18VA (normal operating conditions)
- Standby Time: 24hrs (fully charged battery)
- Energy output: 2.4 Joule per zone (500 Ohms load)
- Open circuit voltage: 9000V
