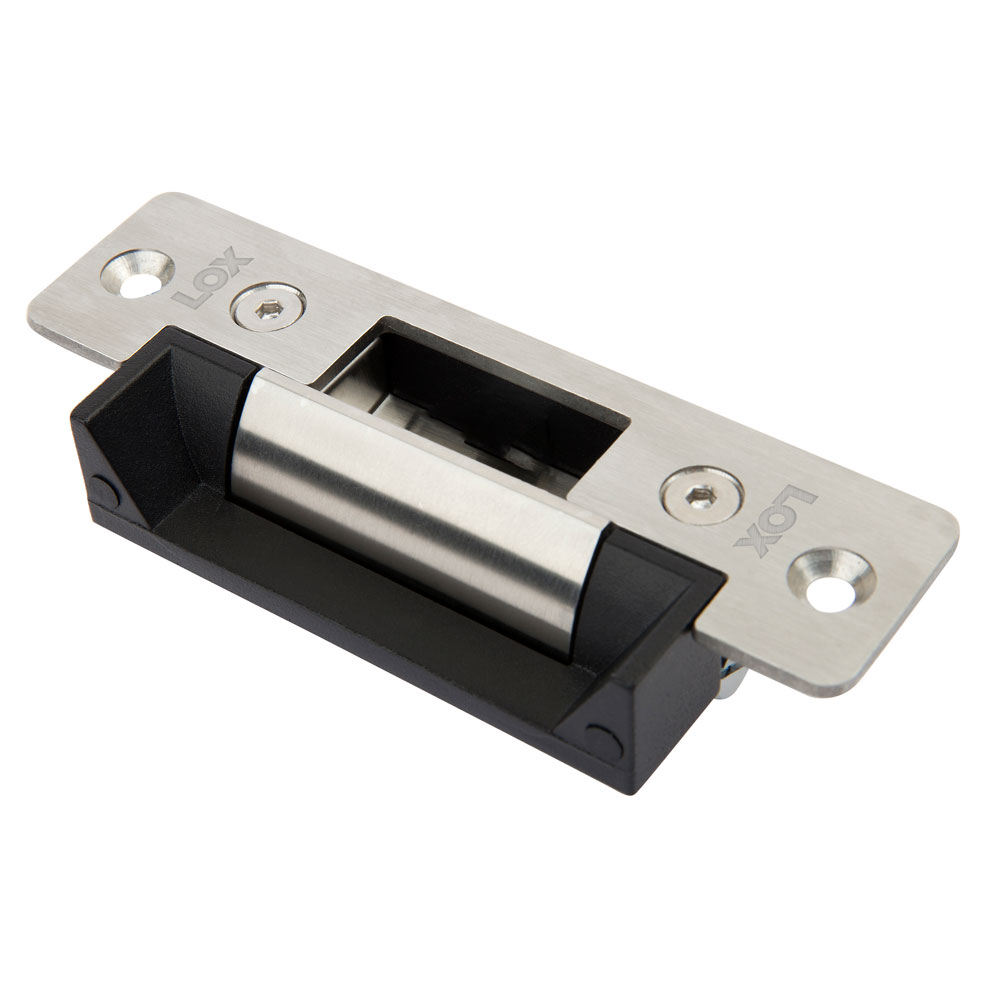

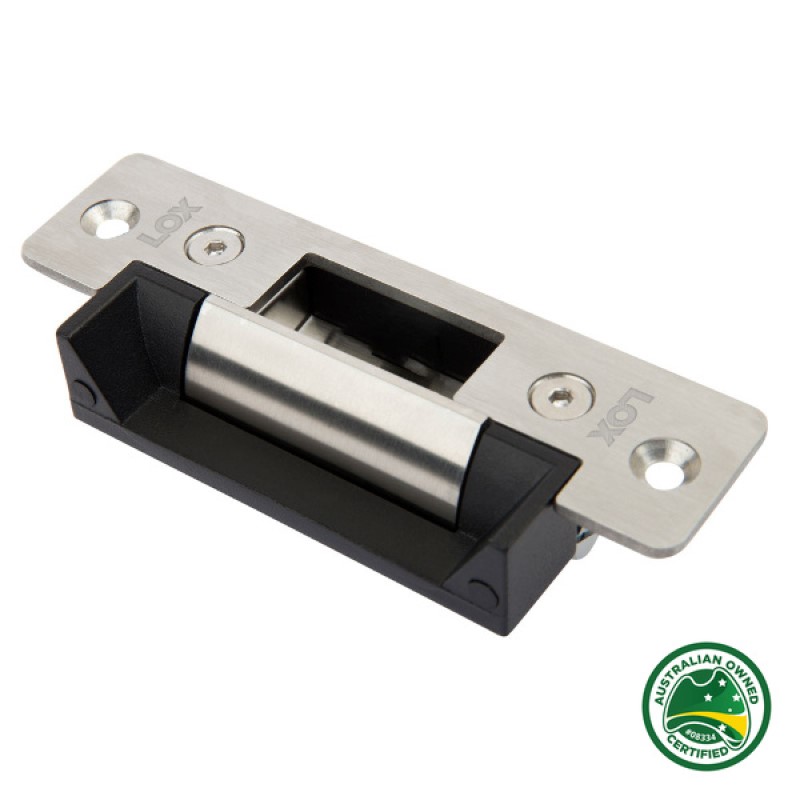

The LOX Locking LOX-ES10 is the non-monitored version of the ES10 strike. This lock is designed to be morticed into a door frame on a single swing door equipped with either a mortice lock or a cylindrical tongue lock. The ES10 is pre-drilled to accomodate for extention lips and is easily interchangeable from fail-secure to fail-safe with the use of a small screwdriver.

• Weather resistant (IP56)
• 5 year warranty
• Simple power to lock/power to release interchange
• Pre-drilled for extension lips
• Dual-voltage: 12 or 24VDC
• Fire rated

Datasheets

• LOX-ES10x Datasheet.pdf

• Dimensions: 125 x 42 x 35mm
• 12V DC 200mA, 24V DC 100mA
• Over 1200kg holding force
