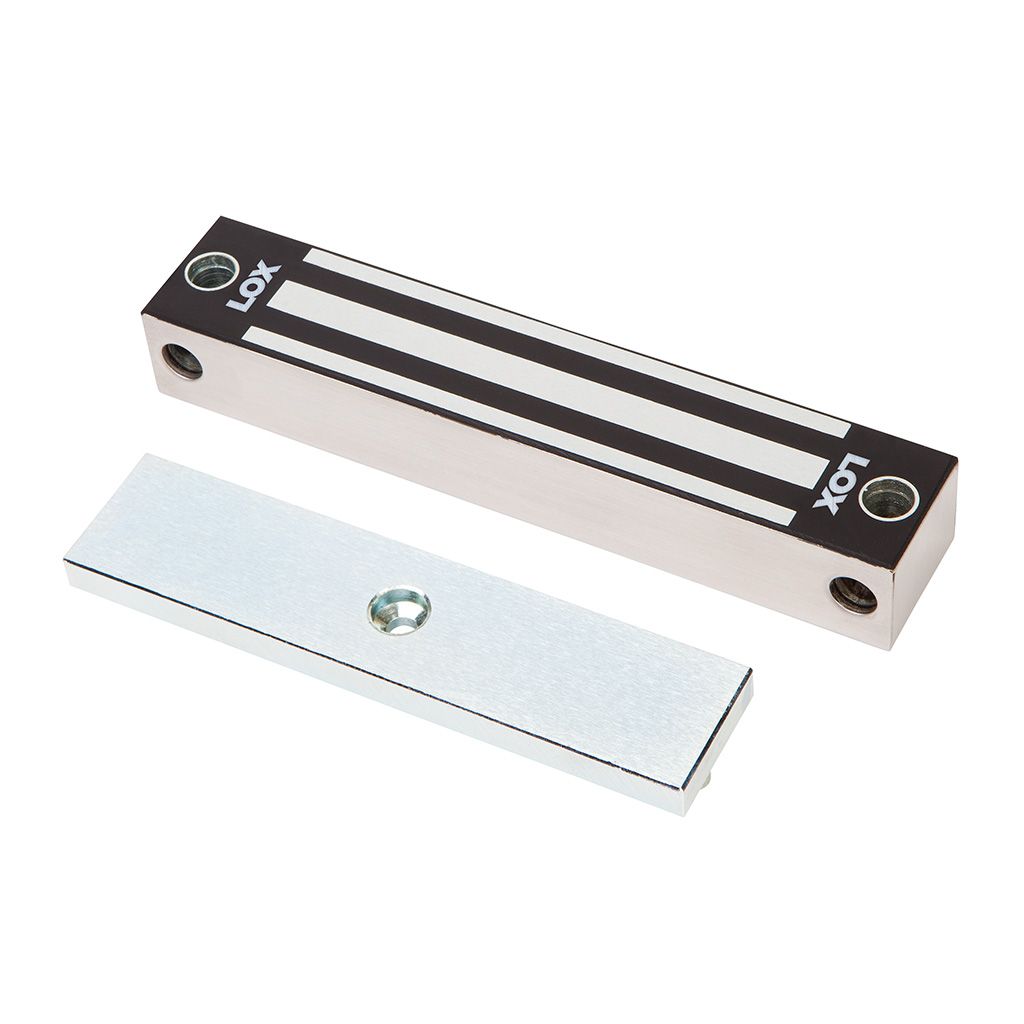

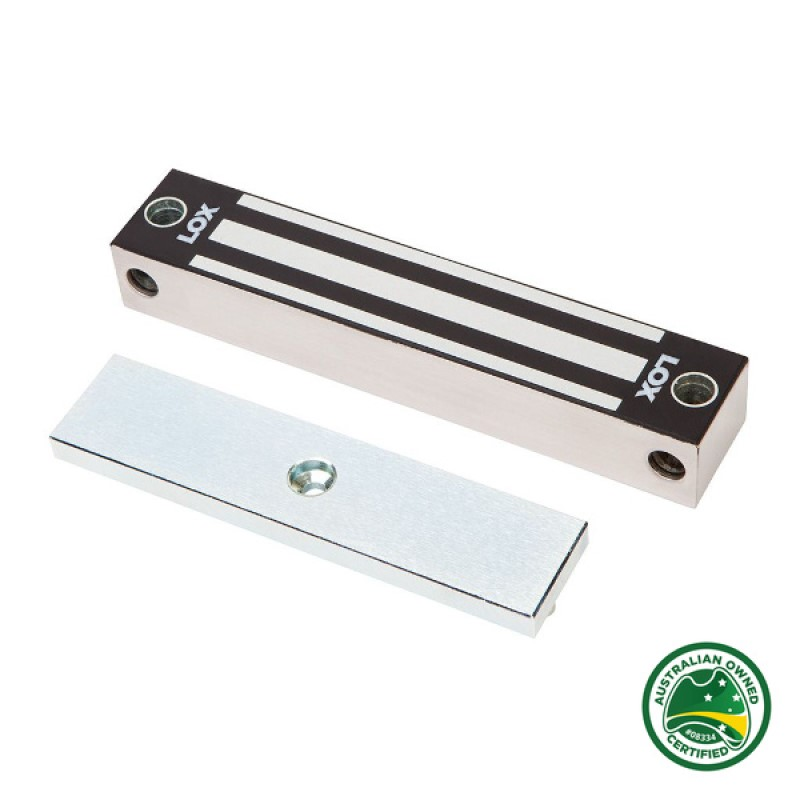

LOX Electro Magnetic Lock, 200kg, Monitored, Weather 12/24VDC

The LOX-EM4500 is an electromagnetic lock that has been designed with a fully enclosed stainless-steel housing. It is a very reliable solution for true external applications exposed to wind and weather. This lock is IP67 rated and is made to work in the harshest environments around Australia. It has a high holding force of up to 200kg, a dual fixing arrangement (front and header mount), a built-in varistor surge protection and accepts dual voltage of 12VDC and 24VDC. The LOX-EM5000 also has a reed switch monitoring feature and comes with a lifetime warranty.

• Lock status monitoring sensor (LSS)
• Stainless 304 steel body housing
• Weather resistant IP67
• Lifetime warranty
• Anti-tamper mounting plate
• No residual magnetism

Datasheets

• LOX-EM4500 Datasheet.pdf

• Holding strength: 200kg
• Voltage/current: dual voltage 12/24VDC 12VDC
• Operational temperature range: -20 to 60 degrees Celsius
