LOX Electro Magnetic Slimline Lock, 280kg, Monitored, Flush Mount, 12/24VDC

Home // Access Control // Locks // LOX Locking // Magnetic Locks // EM3500 Series // LOX Electro Magnetic Slimline Lock, 280kg, Monitored, Flush Mount, 12/24VDC

Code: LOX-EM3500FM
Brand: LOX Locking
Product Details
LOX Electro Magnetic Slimline Lock, 280kg, Monitored, Flush Mount, 12/24VDC

Overview
Features
Specifications
Downloads

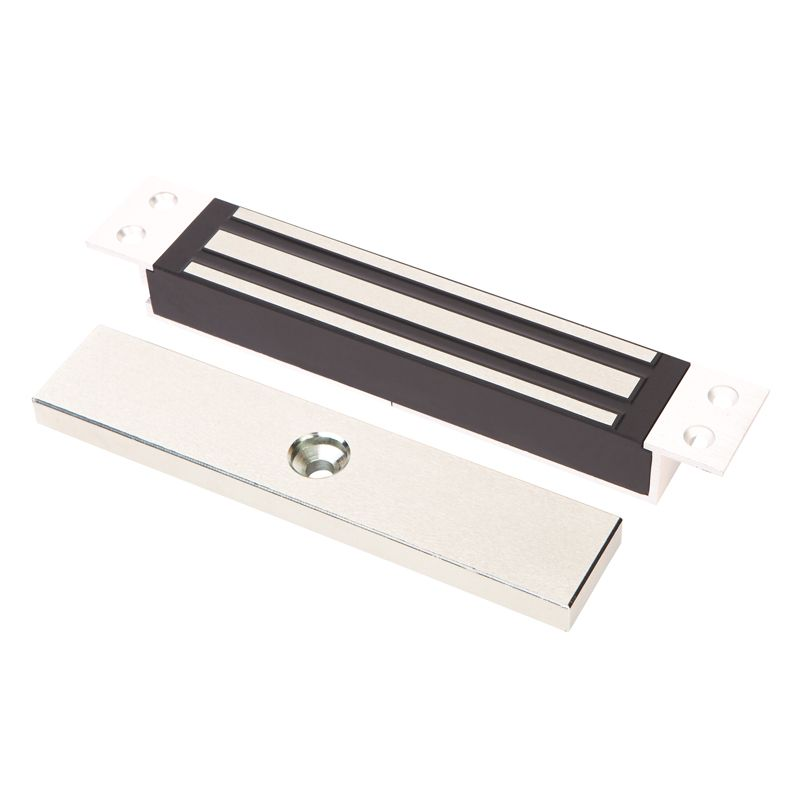

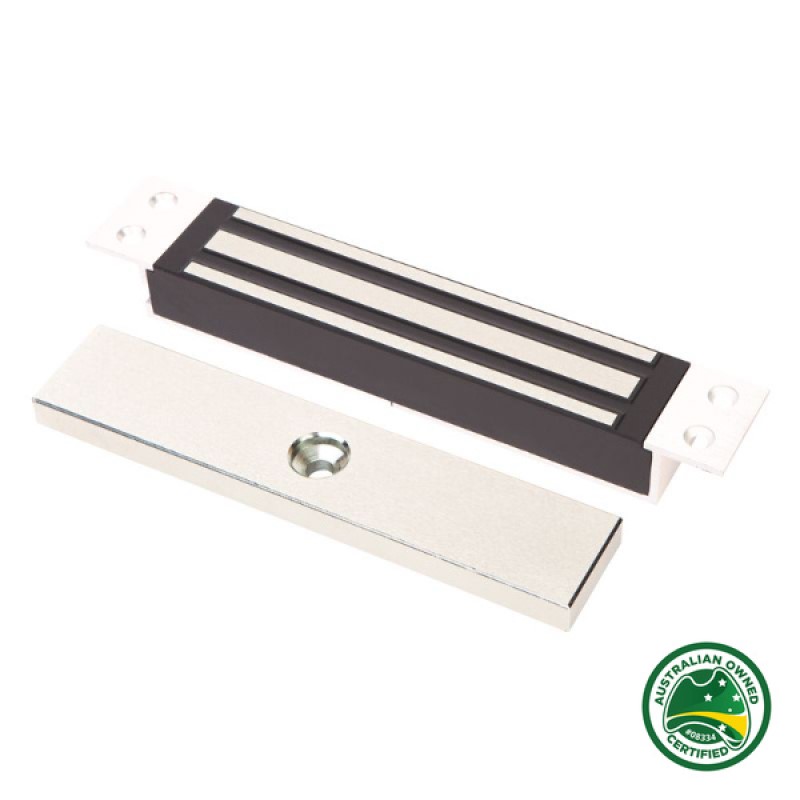

The LOX-EM3500FM is a flush mount electromagnetic lock that is designed for securing single leaf internal sliding doors. The lock is mortised into the door frame and has a holding force of up to 280kg. It also has a lock status senor (LSS) monitoring function (hall-effect).

Built-in hall effect sensor for monitoring the lock/unlock status of the locking device (LSS)
Built-in varistor (MOV) surge protection
Lifetime warranty
No residual magnetism

Datasheets

LOX-EM3500FM Datasheet.pdf

Holding strength: 280kg
Voltage/current: dual voltage 12/24VDC 12VDC
Operational temperature range: -20 to 60 degrees Celsius
