LOX Drop Bolt, 300kg, Monitored DSS, PTL, Mortice Mount, 12V DC

Home // Access Control // Locks // LOX Locking // Electric Drop Bolts // LOX Drop Bolt, 300kg, Monitored DSS, PTL, Mortice Mount, 12V DC
LOX Drop Bolt, 300kg, Monitored DSS, PTL, Mortice Mount, 12V DC



Code: LOX-DB1260PTL
Brand: LOX Locking
Product Details
LOX Drop Bolt, 300kg, Monitored DSS, PTL, Mortice Mount, 12V DC

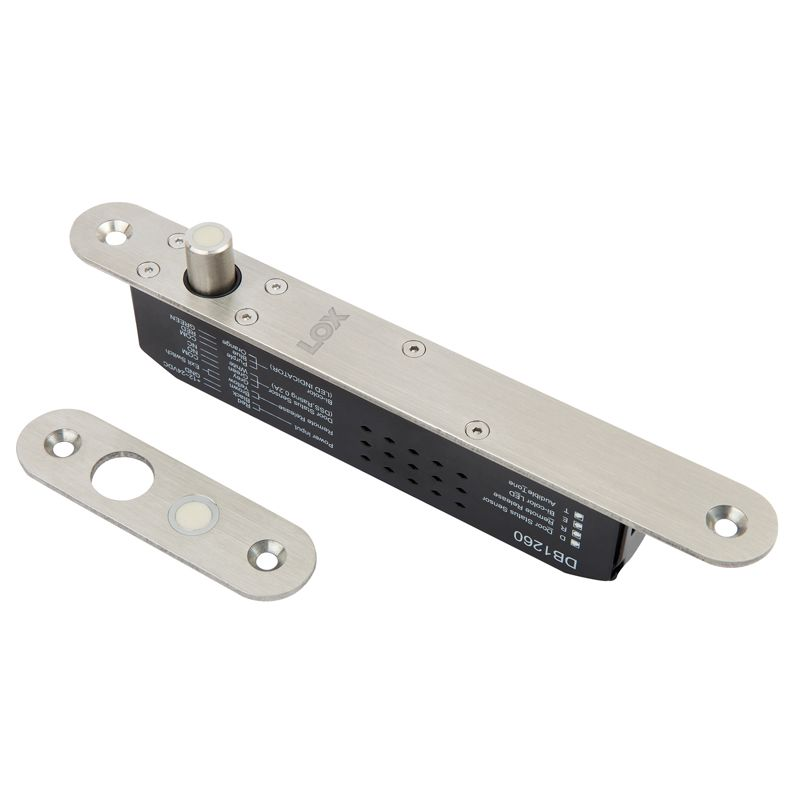

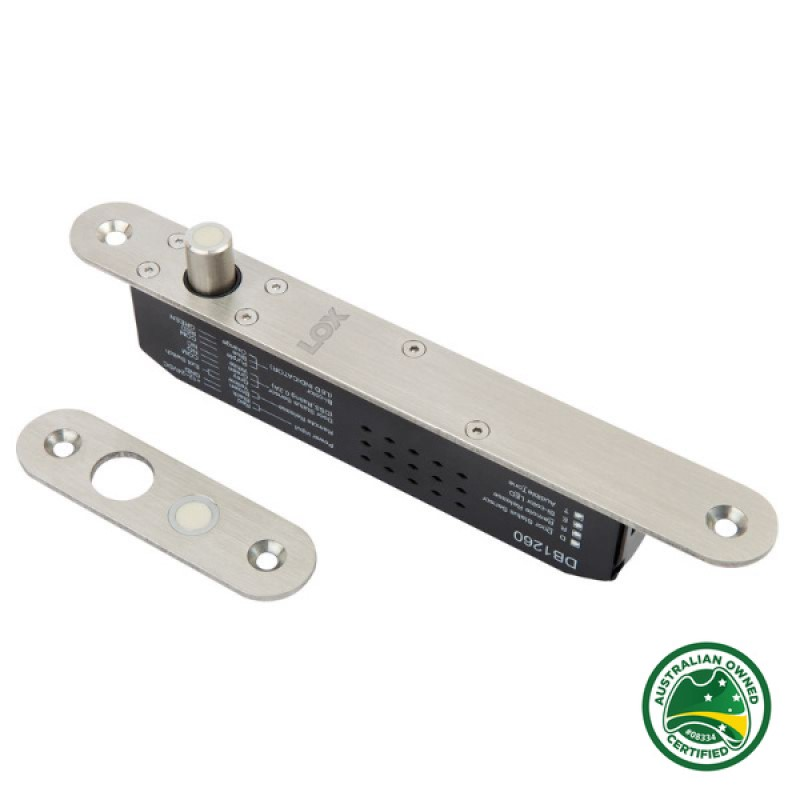

The LOX-DB1260PTL is a power to lock (fail safe electric drop bolt is designed to be used on double action (swing through) doors or as an additional locking device in conjunction with an electric strike in single door applications. This drop bolt has a 25mm wide face plate and is therefore applicable on narrow style frame installations.

  • Internal control circuits protect drop bolt pin from damage
  • Power to lock
  • Auto lock function
  • Built-in varistor (MOV) for surge protection
  • Time delay setting at 0/3/6/10 secs
  • 1 year warranty
  • Holding strength: 300kg
  • Voltage/current: dual voltage 12/24VDC 12VDC
  • Operational temperature range: -20 to 60 degrees Celsius
