IR Indoor Tri Tech Commercial PIR Detectors, IR Ready, IR-D-P3E-BRK, 10 Pack

IR-D-P3E-10P-BRK
AVAILABLE TO ORDER
IR Indoor Tri Tech Commercial PIR Detectors, IR Ready, IR-D-P3E-BRK, 10 Pack

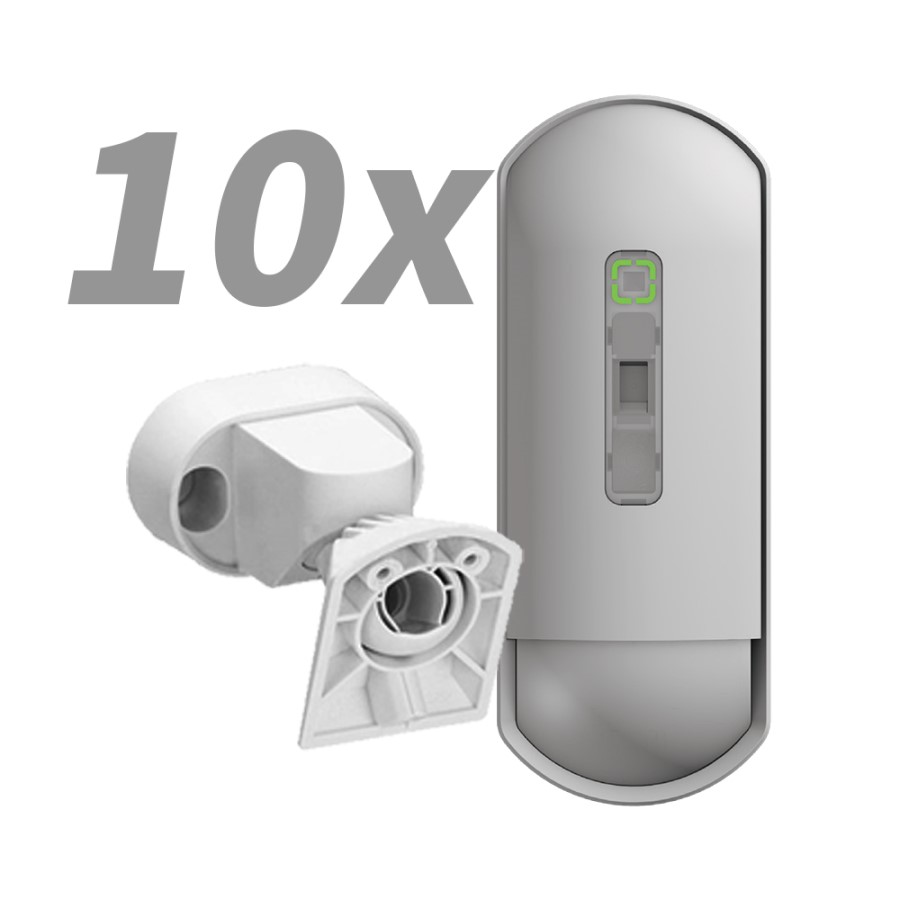

The IR-D-P3E-BRK is a 10 pack kit that comes with the Inner Range IR-D-P3E and IR-D-BRK-CW-G2 bracket. The IR-D-P3E is a commercial grade, high security tri technology, microwave & PIR movement detector with 15m detection range that incorporates anti-masking technology. The perfect choice for high security environments where obscuration of the detectors Field Of view is a risk that needs to be actioned.

IR Ready, the IR-D-P3E detector is factory fitted with an End-of-line (EOL) resistor module that is specific to Inner Range security controllers which dramatically speeds up installation time by reducing the complexity of the installation. This module is easily removed so these high-quality detectors are compatible with any brand of security alarm system. High quality, highly reliable, IR Ready and easy to install, these commercial grade intrusion detectors will suit any indoor application from residential to highly sensitive commercial applications.

  • Wall or ceiling mount
  • Anti-masking technology - rest assured, our security system swiftly detects and alerts you to sensor tampering or obstruction.
  • Customisable Field Of View - select a wide or narrow detection area by rotating the lens within the case
  • Easily viewable LED colour - LED colour is green and viewable from distance
  • Human-catch element - designed to create proper detection areas and optimise detection sensitivity
  • Refined spherical lens - provides a precise focal length to each of the multiple lens segments which enables precise detection without distortion
  • SMDA - by analysing detection patterns and environmental information, SMDA improves immunity against various noise factors such as climate changes
  • 180-degree cover lock - the front cover can be opened and closed by turning the captive screw lock 180 degrees with a flat head screwdriver

  • Wide coverage: 15m and 85 degrees
  • Narrow coverage: 24m and 5 degrees
  • Power input: 9.5V to 16V DC
  • Current draw: 16mA (idle), 21mA (max) at 12V DC
  • Operating temperature: -20 to +45 degrees Celsius
  • Dimensions: 159.1mm (H) x 62.2mm (W) x 55.7mm (D)
  • Weight: 200g

No description available for this product
  • Wide coverage: 15m and 85 degrees
  • Narrow coverage: 24m and 5 degrees
  • Power input: 9.5V to 16V DC
  • Current draw: 16mA (idle), 21mA (max) at 12V DC
  • Operating temperature: -20 to +45 degrees Celsius
  • Dimensions: 159.1mm (H) x 62.2mm (W) x 55.7mm (D)
  • Weight: 200g
