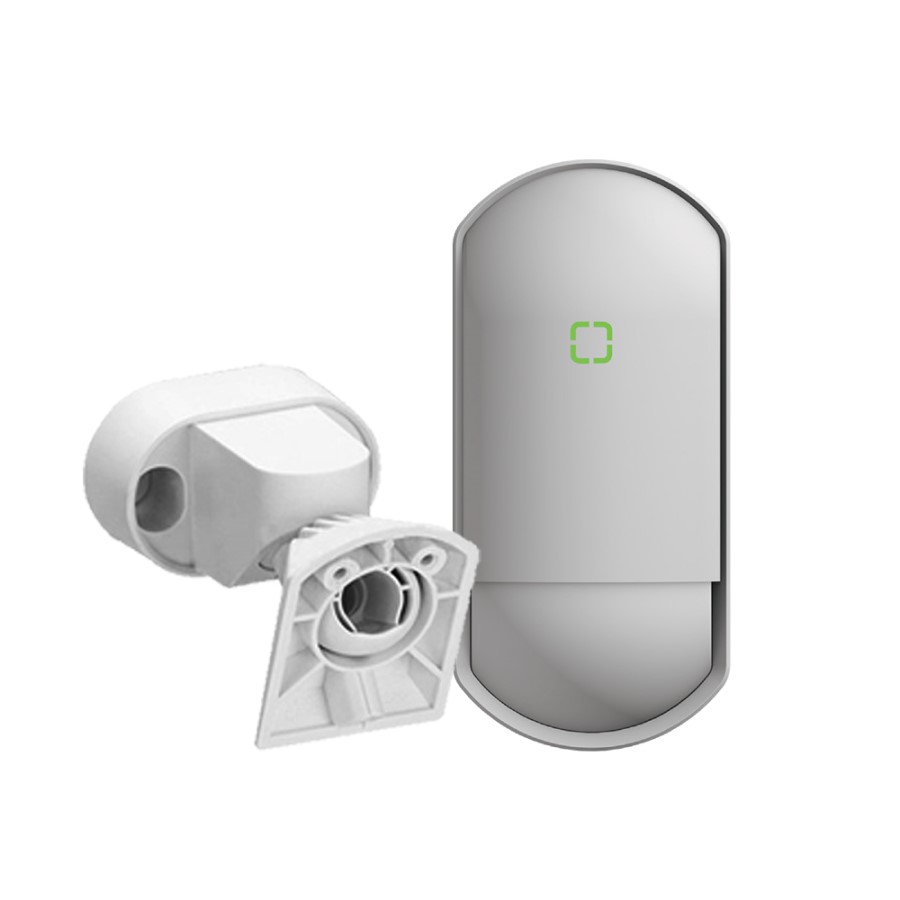

The IR-D-P1-BRK kit comes with the Inner Range IR-D-P1 and IR-D-BRK-CW-G2 bracket. The IR-D-P1 is a professional hardwired, pet immune, indoor motion detector with 12m detection range. It is the perfect choice for residential to commercial applications in standard environments.

The IR-D-P1 is a high-quality detector that is compatible with any brand of security alarm system that requires the installation of a resistor. Highly reliable and easy to install, these commercial grade intrusion detectors will suit any indoor application from residential to highly sensitive commercial applications.

• Wall or ceiling mount
• Customisable Field Of View - select a wide or narrow detection area by rotating the lens within the case
• Easily viewable LED colour - LED colour is green and viewable from distance
• Human-catch element - designed to create proper detection areas and optimise detection sensitivity
• Refined spherical lens - provides a precise focal length to each of the multiple lens segments which enables precise detection without distortion
• SMDA - by analysing detection patterns and environmental information, SMDA improves immunity against various noise factors such as climate changes
• 180-degree cover lock - the front cover can be opened and closed by turning the captive screw lock 180 degrees with a flat head screwdriver

• Wide coverage: 12m and 85 degrees
• Narrow coverage: 18m and 5 degrees
• Power input: 9.5V to 16V DC
• Current draw: 8mA (idle), 11mA (max) at 12V DC
• Operating temperature: -20 to +50 degrees Celsius
• Dimensions: 129.2mm (H) x 61.5mm (W) x 50.9mm (D)
• Weight: 90g
