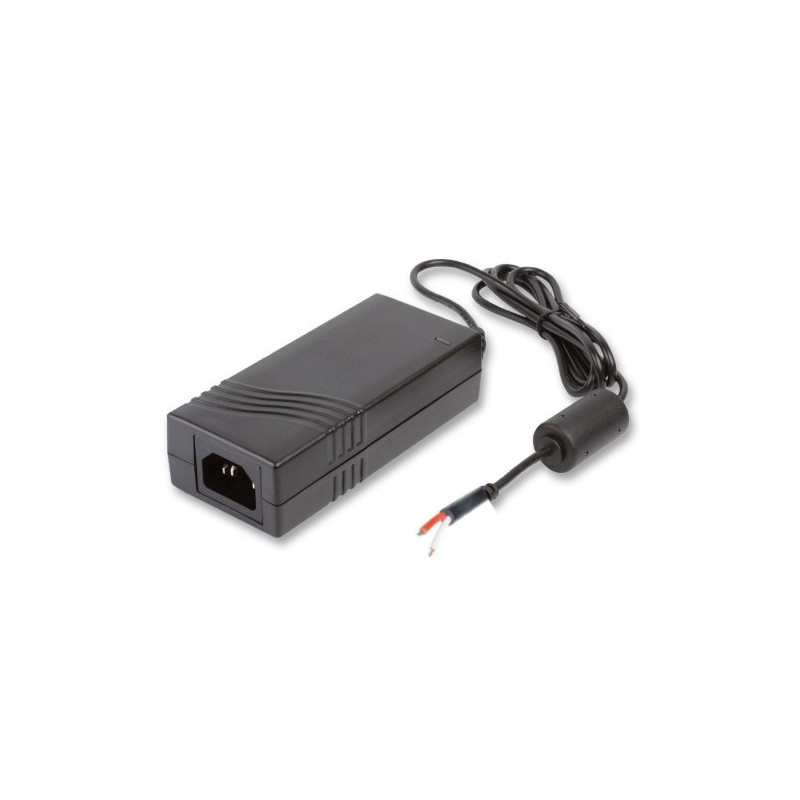

The IR-999066BTW Integriti power supply connects directly to the Integriti controller's AC input via the blue termination connector, ensuring correct polarity orientation. With a 24V DC and 2.5A source, it provides ample power to operate the controller along with several readers, sensors, and modules.

For larger systems with increased load demands, it is recommended to power modules separately using Inner Range's 3, 8, or 10-amp SMART power supplies.

• Power input: 100 - 240V AC
• Power output: 24V DC, 2.5A
• Jack dimensions: N/A (bare ends)
• Cable length: 1.5m
