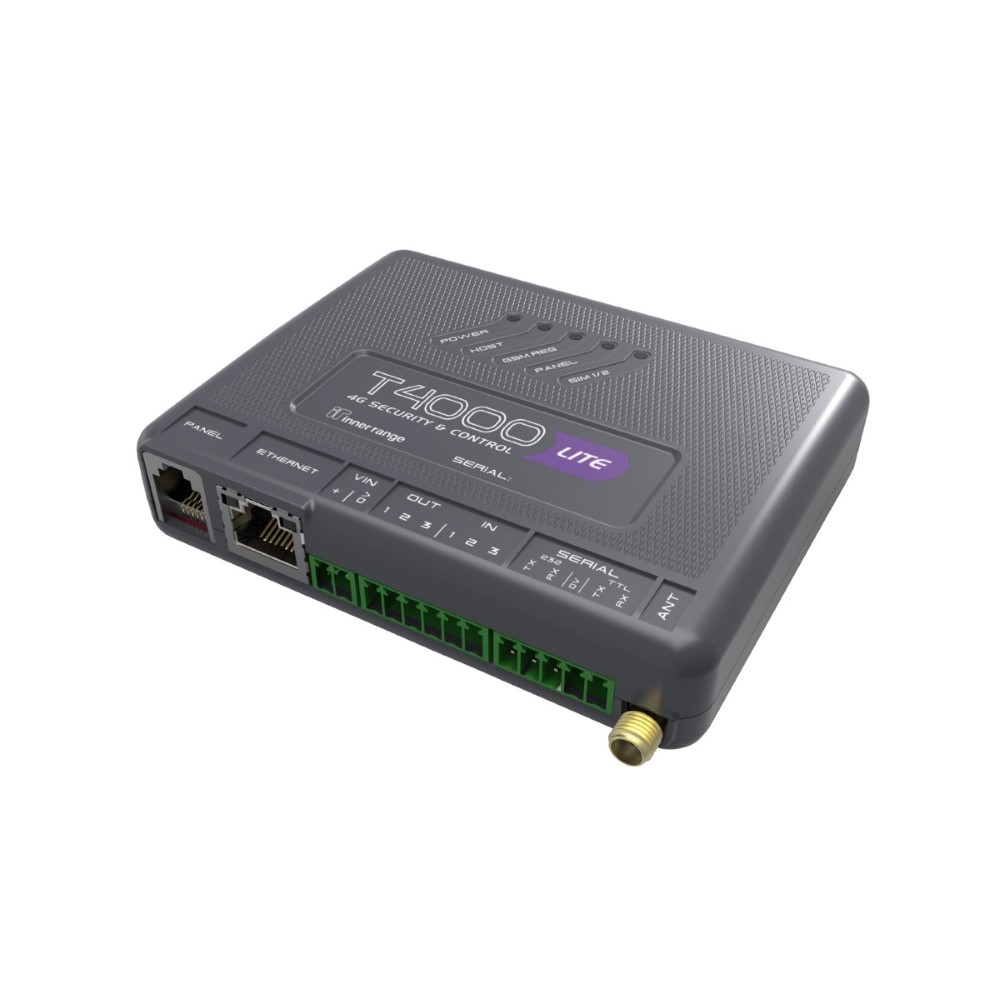

Multipath T4000 Lite 4G, Dual Sim, 3 Inputs, 3 Outputs, (Telstra/Optus)

Multipath T4000 Lite 4G, Dual Sim, 3 Inputs, 3 Outputs, (Telstra/Optus)



Code: IR-998535
Brand: Multipath
Product Details
Multipath T4000 Lite 4G, Dual Sim, 3 Inputs, 3 Outputs, (Telstra/Optus)


The Multipath-IP T4000 Lite features the same highly advanced feature set as the original T4000, only in a smaller form factor, while packing more inputs and outputs. It’s on board battery and PSTN dial through functions are not fitted to the device, which is a great way to retrofit existing systems from an existing battery-backed alarm system. With its tiny footprint, the new T4000 Lite should fit into existing alarm security cabinets.

This edition presents a modern touch by connecting to smartphone apps and providing push notification services.

The three outputs built into the Lite are fully controllable from the SkyCommand app by the end user. The outputs can be programmed to control areas on the end user’s alarm panel using a key switch input, or as a general purpose remote control.

The T4000 Lite also provides a communications path for upload/download programming of many popular alarm systems on the market when a PSTN line is not available at the installation site.

  • Simple plug and play installation
  • Ultra-fast 4G dual SIM polled communications paths (Telstra/Optus)
  • 10/100 Mbps ethernet port for high-speed polling
  • 3 inputs and 3 outputs
  • Secure 128Bit AES encrypted data transmission
  • Over-the-air upload/download to compatible alarm systems using modem dial-up and serial pass-through methods
  • Contact-ID and IRFast with text formats
  • Remote control using the SkyCommand smart phone app
  • Minimal power consumption
  • Over-the-air firmware updatable
  • ABS plastic enclosure Installation environment 0 to 50 degrees C at 15 to 90 percent relative humidity (non-condensing)5 LED status indicators
  • Contact ID, IRFast and IRFast + text alarm formats
  • Power input: 12-24VDC, 150mA nominal
  • Power current consumption at 13V DC: 115mA (Idle) + 30mA (GSM online)
  • Minimum operating voltage: 8V DC
  • Low volts sense voltage (typical): 11.0V
  • Fuse: PTC protection + on-board fuse (non-replaceable)
  • Zone input: 3 Software configurable (EOL or Non-EOL)
  • Open Collector output (OUT) current: 3 100mA DC per output
  • Dimensions: 101 x 79 x 23mm (Not including connectors)
  • Weight: 195g
