Multipath T4000X Expanded Security Communicator Kit with XS Enclosure (Telstra/Optus)

IR-998530XKIT
AVAILABLE TO ORDER

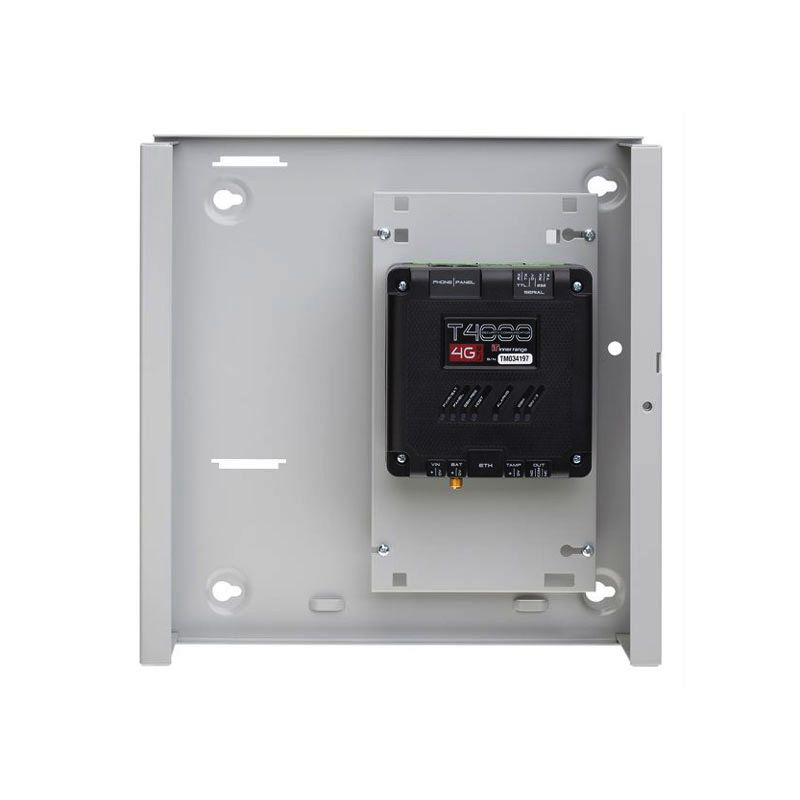

Multipath T4000X Expanded Security Communicator Kit with XS Enclosure (Telstra/Optus)

Featuring all standard T4000 features, the Inner Range T4000X coupled with an expander module offers an additional 8 inputs and 8 outputs. The T4000X is ideal for simple monitoring and control applications as a 'stand-alone' 4G unit. Additionally, the T4000X kit includes an extra small metal enclosure, power adapter and battery leads

  • Extra small metal enclosure
  • Power adapter
  • Battery leads
  • 8 zone inputs
  • 8 outputs (open collector)
  • Regulated 12 volt detector power supply
  • Convenient installation options
  • Controllable Arm/Disarm security area
  • Siren/Strobe output function
  • Remote firmware update
  • Fully controllable from SkyCommand app
  • Contact-ID, IRFast and optional text reporting

  • Dimensions: 103mm x 99mm x 48mm
  • Shipping Weight (gross): 250g
  • Current consumption at 18V DC: 110mA (Idle) + 30mA (GSM Online). (Not including Battery charging)
  • Typical Battery Backup Time: 62 Hours. (7AH battery powering T4000X only)
  • Minimum Battery Backup Time: 32 Hours. (7AH battery powering T4000X only)
  • Zone inputs: 8. Software configurable (EOL or Non-EOL)
  • Default setting is 2k2/2k2 EOL.
  • Zone Input debounce: 300mS
  • Outputs: 8. Open-collector. 100mA at up to 24V DC.
  • DET+ Voltage (Typical): 13.8V DC. (Drops to 0V if power supply input is below 11V)
  • Maximum Output Current: 750mA

add remove Description

No description available for this product

  • Dimensions: 103mm x 99mm x 48mm
  • Shipping Weight (gross): 250g
  • Current consumption at 18V DC: 110mA (Idle) + 30mA (GSM Online). (Not including Battery charging)
  • Typical Battery Backup Time: 62 Hours. (7AH battery powering T4000X only)
  • Minimum Battery Backup Time: 32 Hours. (7AH battery powering T4000X only)
  • Zone inputs: 8. Software configurable (EOL or Non-EOL)
  • Default setting is 2k2/2k2 EOL.
  • Zone Input debounce: 300mS
  • Outputs: 8. Open-collector. 100mA at up to 24V DC.
  • DET+ Voltage (Typical): 13.8V DC. (Drops to 0V if power supply input is below 11V)
  • Maximum Output Current: 750mA
