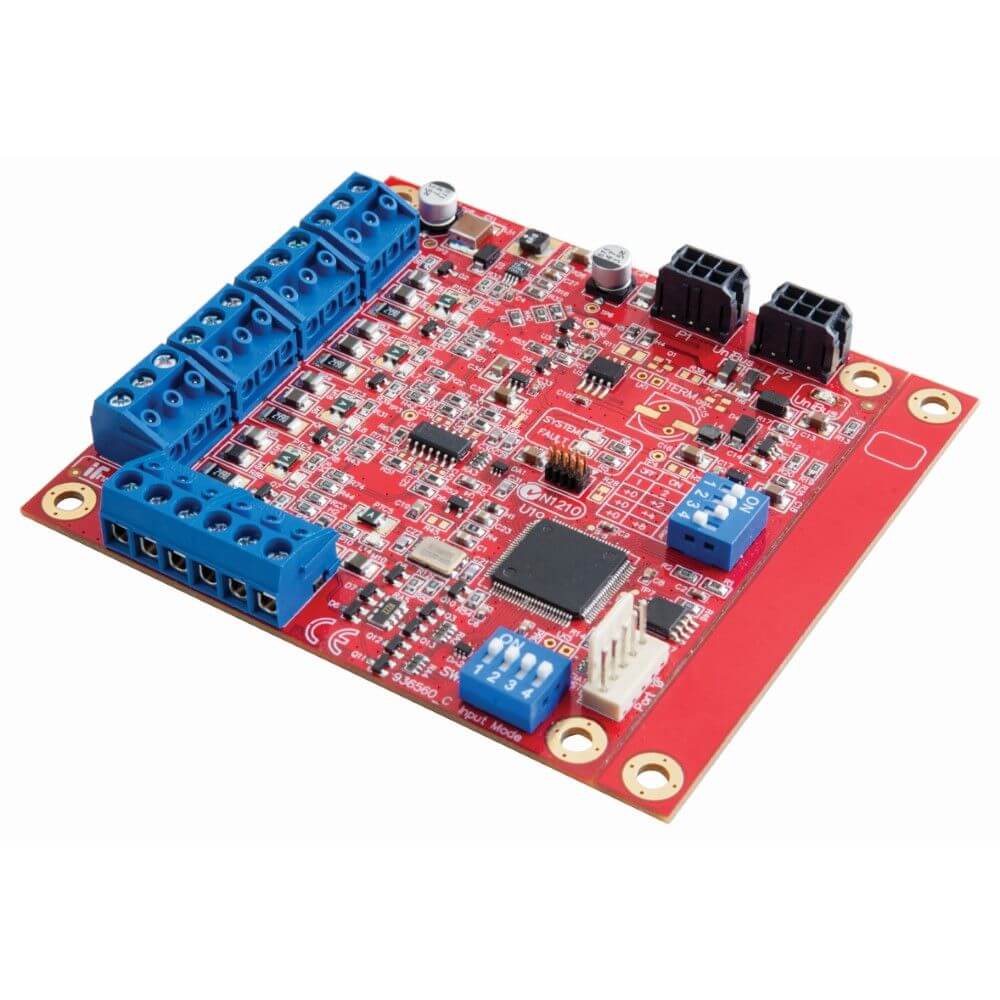

Integriti UniBus 4 Analogue Input Expander to suit ISC / IOEXP

The Inner Range UniBus 4 way analogue input expander provides the capability to monitor, report and action on analogue values within an Integriti system. The device can be programmed to operate an auxiliary when an analogue level from one or more of its independent analogue inputs exceeds or goes below a pre-programmed trigger point.

• 4 universal analogue zone inputs
• 3 mode options per input - serial, voltage or current loop
• Compatible with Inner Range serial temperature sensor
• Programmable hysteresis setting
• 24V DC output for current loop supply
• UniBus loop-through connectors
• 2 LED status/fault indicators
• Resettable surge protected inputs

Datasheets

• IR-996560PCB&K Datasheet.pdf

• PCB Size: 94mm(L) x 94mm(W)
• PCB size including snap off strip: 105mm(L) x 94mm(W)
• Height: 15mm
• Weight: 100g
• Installation Environment: 0 – 70 degrees celsius
• Power Supply Input: 11V to 14V DC via host module
• Current Consumption: 50mA idle-230mA max
