Integriti UniBus 16 Floor Lift Interface Card to suit ISC / IOEXP

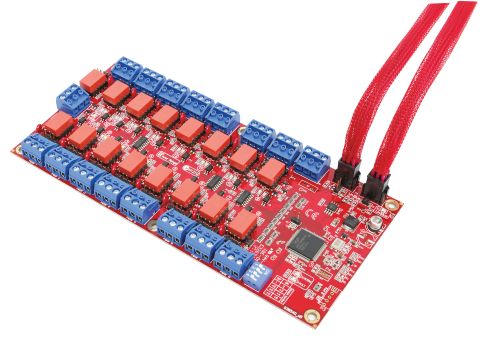

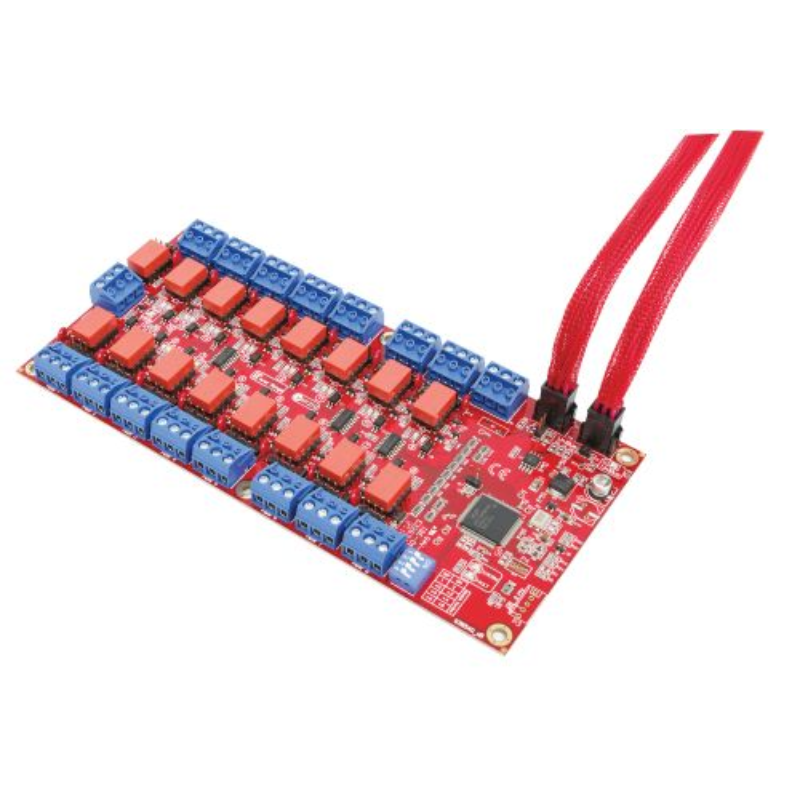

The IR-996540PCB&K UniBus 16-Floor Lift Interface device provides an efficient integration between the Integriti Security System and a lift system. This facilitates managed and secure floor access for users within multi-story buildings and apartment blocks.
The UniBus Lift Interface device utilises a low-level button feedback interface between Integriti and the lift system. It incorporates input conditioning and switching to provide the isolation required between the two systems. Using an Integriti UniBus cable, the device connects directly to the Integriti host module or via another UniBus device.
Up to 6 UniBus 16-Floor Lift Interface devices can be connected to a single host module to provide access control for a single lift car servicing up to 96 floors.
(Multiple lift cars require multiple host modules)
- Low level with button feedback
- UniBus connectivity
- Compatible with a range of Integriti host modules
- Manage 16 floors per device
- UniBus loop-through connectors
- Connect up to 6 devices per Integriti host module
- Wide range of button input voltages
- Button sense input per floor
- Override input to allow free access mode
- Isolation between lift and Integriti system
- Firmware upgrade over-the-wire
- Integriti 'B' size footprint 200 x 94mm
- Can be installed above other 'B' size PCB's
- This module requires a UNIBUS host (LAN expander - IR-996005PCB&K) when using Inception.
