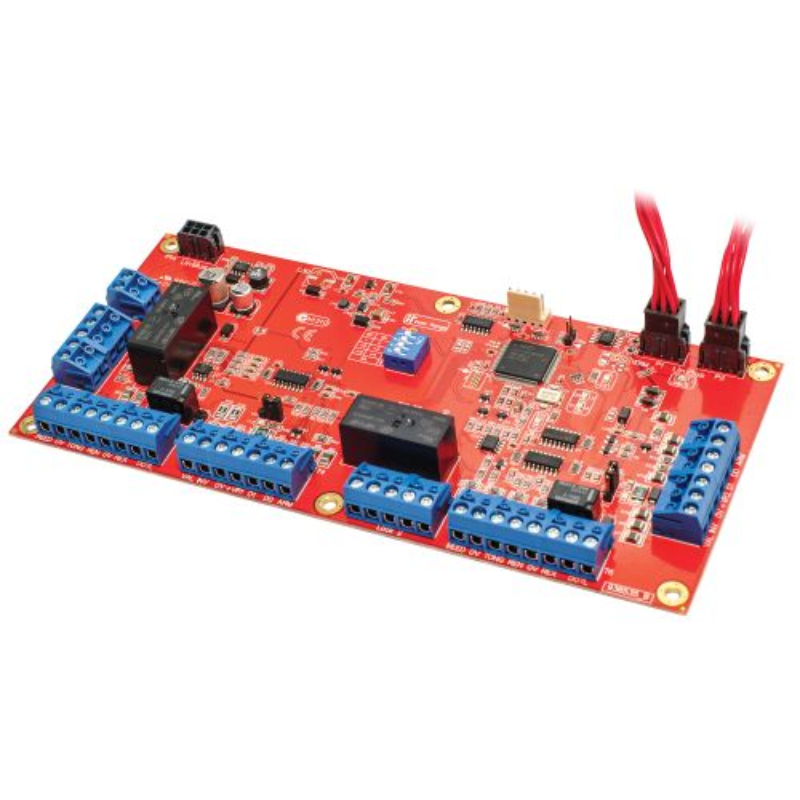

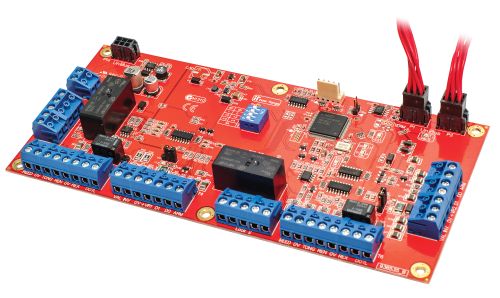

Integriti UniBus 2 Door Expander (to suit ILAM / IAC)

The Integriti UniBus 2 Door / 2 Reader Expander can be used to provide control and monitoring of two additional Doors or Readers on a compatible UniBus host module.

When connected to the Integriti Intelligent LAN Access Module, the UniBus 2 Door / 2 Reader expander can provide installation configurations for 4, 6 or 8 doors. A maximum of three UniBus 2 Door Expanders and a maximum of six UniBus boards in total can be connected to the host module.

The UniBus 2 Door / 2 Reader Expander is designed for installation within the same tamper protected enclosure as its UniBus host module. The UniBus expander is connected directly to the host module or another UniBus device via the UniBus patch cable supplied.

• Provides an additional 2 Doors / 2 Readers for Host Module
• UniBus connectivity to Host Module
• Reader options to control Doors, Lifts, Areas and User Logon
• Supports Wiegand card readers up to 88bits
• Reader outputs with individual self-resetting over current protection
• UniBus loop-through connectors
• LED status & Fault Indicators
• Dedicated lock power input
• Heavy duty lock relays
• Reader Valid & Invalid Outputs
• Door reed & tongue sense inputs per door
• Door request to enter & exit inputs per door
• DOTL relay outputs per door
• Integriti ?B? size footprint 200 x 94mm
• Remote firmware upgrade over-the-wire

Datasheets

• IR-996535PCB&K Datasheet.pdf
