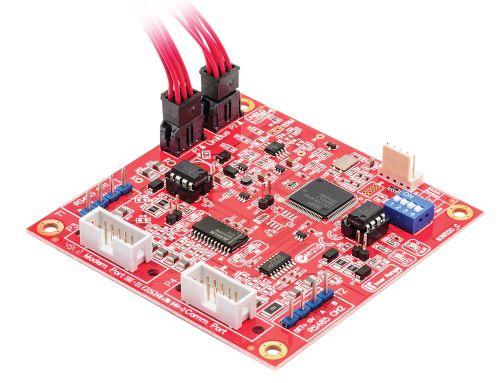

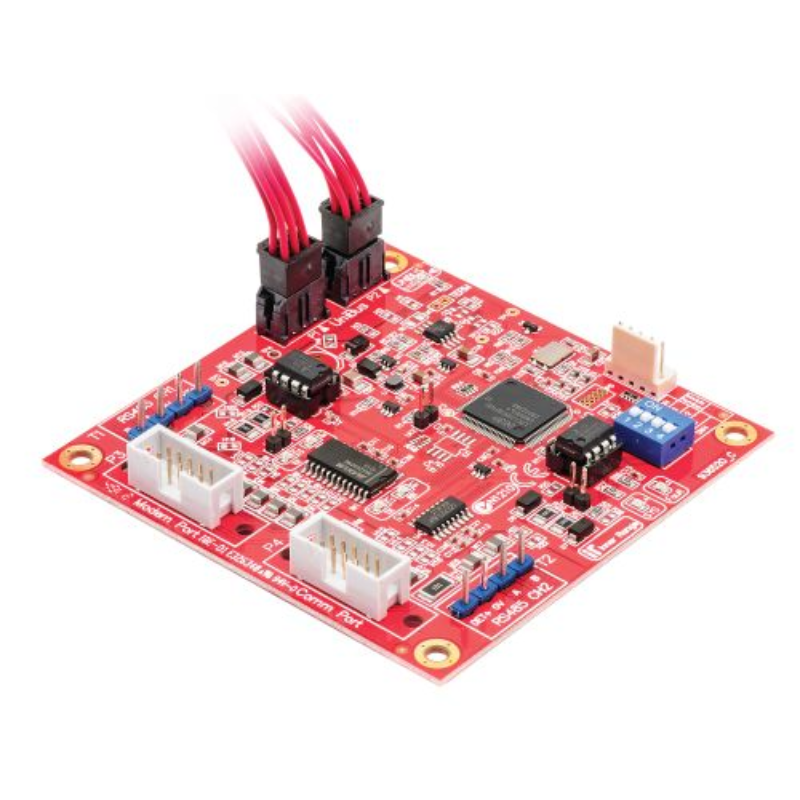

Integriti UniBus 2 Channel UART (RS232 & RS485) PCB & Kit, 220mm Interface Lead

The UniBus 2 Port UART provides 2 high speed, software configurable, Serial Ports allowing connection of peripheral serial devices. Up to 4 UniBus UART Boards may be connected to an Integriti Controller. DIP switch options allow each Port to be configured for RS-232 or RS-485 operation.

The UniBus 2 Port UART is designed for installation within the same enclosure as its UniBus host module and the board is connected directly to the host module or another UniBus Board via the UniBus cable supplied.

Specific RS-232 cables are available separately for the connection of a Computer, Modem or other serial devices including the Inner Range GSM modem or Multipath IP STU.

• 2 Software configurable UART Ports
• - Channel 1 - RS-232 Modem / RS-485 Port
• - Channel 2 - RS-232 Comm / RS-485 Port
• DIP switch addressable module number 1, 2, 3 or 4
• DIP switch selectable CH1/CH2 mode, RS-232 or RS-485
• LED indication of CH1 & CH2 RX & TX activity
• LED UniBus status indicator
• 2 LED system status / fault indicators
• UniBus loop-through connectors
• Over-The-Wire firmware upgradable
• Integriti ?C? size footprint 94 x 94mm

Datasheets

• IR-996520PCB&K Datasheet.pdf
