Integriti UniBus 8 Relay Output Expander to suit ISC / IOEXP

IR-996515PCB&K
IN STOCK

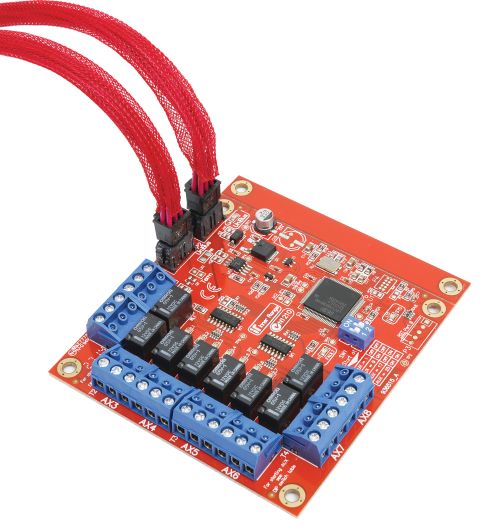

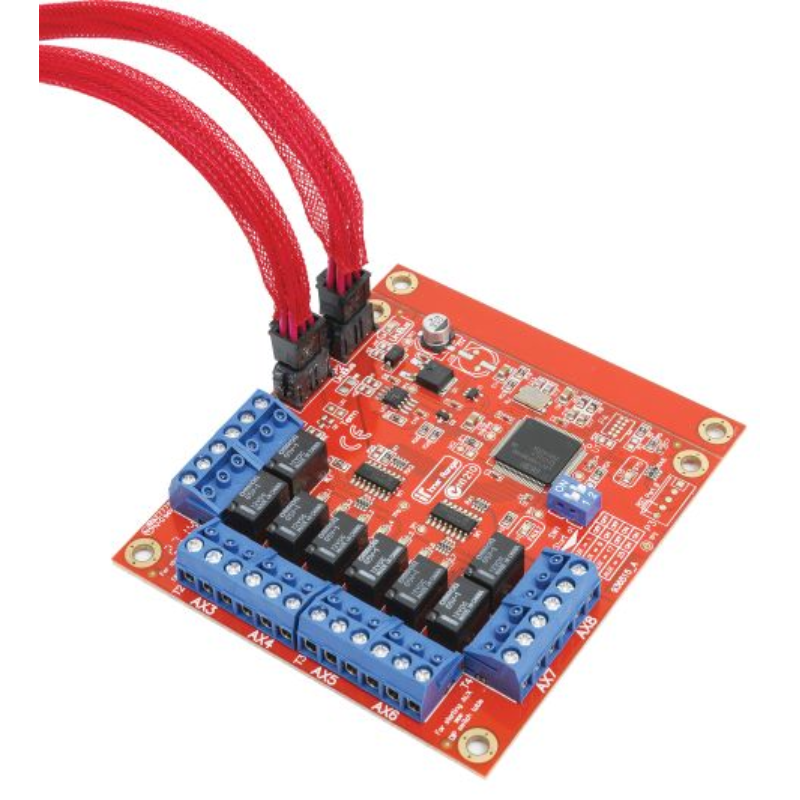

Integriti UniBus 8 Relay Output Expander to suit ISC / IOEXP

The UniBus 8 relay output expander board provides eight independent, high current normally open or normally closed relay outputs, offering a general purpose interface in applications such as warning devices (strobes, etc.), building automation, process control and access control. The board is connected directly to the host module or another UniBus Board via the UniBus cable supplied.

The UniBus 8 relay output expander is designed for installation within the same enclosure as its UniBus host module.

  • 8 Universal Relay Outputs
  • Normally Open or Normally Closed outputs per relay
  • DIP switch addressable first Auxiliary (Relay) 1, 9, 17 or 25
  • UniBus loop-through connectors
  • 2 LED status / fault indicators
  • Over-the-Wire firmware upgradable
  • Integriti 'C' size footprint 94 x 94mm
  • This module requires a UNIBUS host (LAN expander - IR-996005PCB&K) when using Inception.
