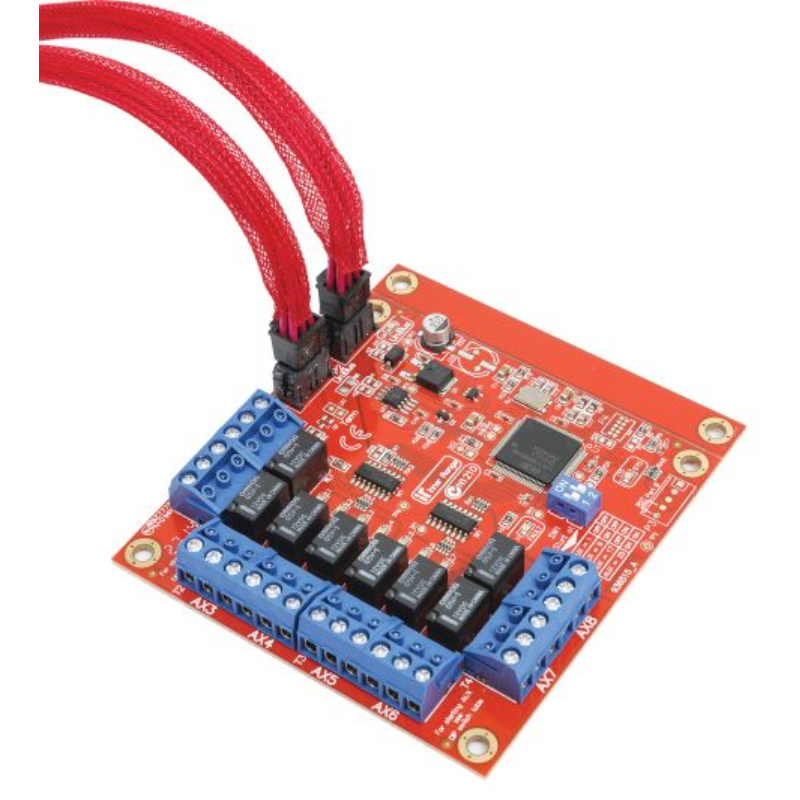

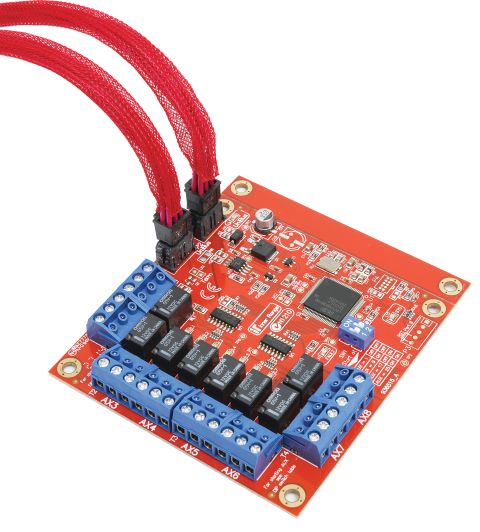

The UniBus 8 relay output expander board provides eight independent, high current normally open or normally closed relay outputs, offering a general purpose interface in applications such as warning devices (strobes, etc.), building automation, process control and access control. The board is connected directly to the host module or another UniBus Board via the UniBus cable supplied.
The UniBus 8 relay output expander is designed for installation within the same enclosure as its UniBus host module.
8 Universal Relay Outputs
Normally Open or Normally Closed outputs per relay
DIP switch addressable first Auxiliary (Relay) 1, 9, 17 or 25
UniBus loop-through connectors
2 LED status / fault indicators
Over-the-Wire firmware upgradable
Integriti 'C' size footprint 94 x 94mm
This module requires a UNIBUS host (LAN expander - IR-996005PCB&K) when using Inception.
