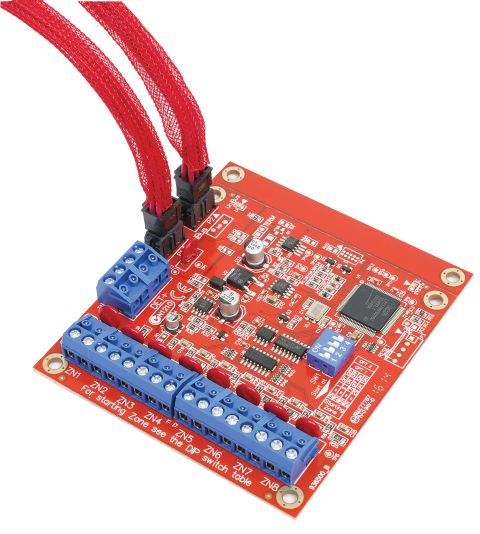

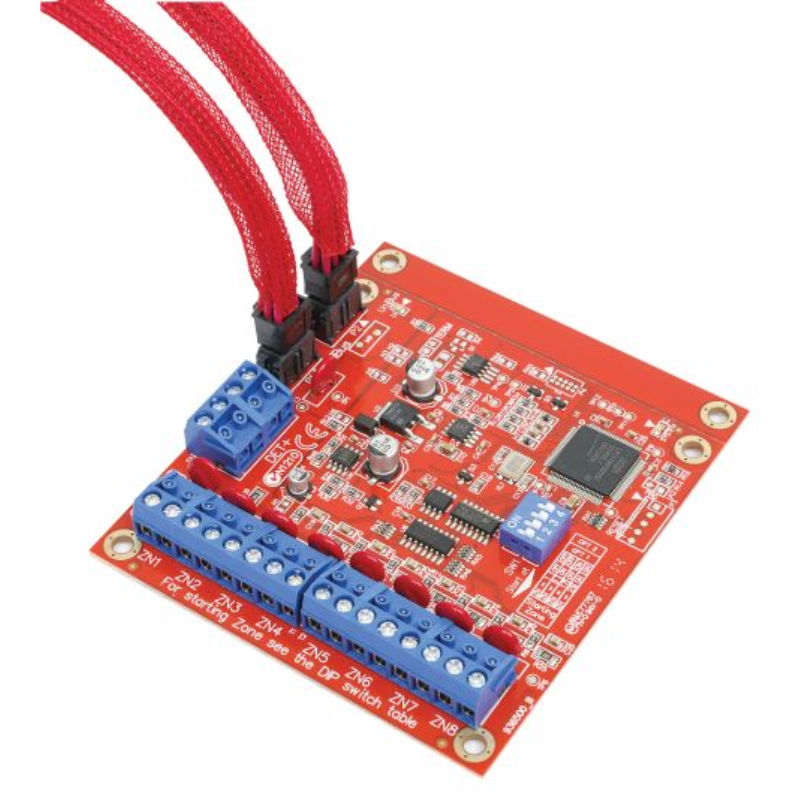

Integriti UniBus 8 Input Expander to suit ISC / IOEXP

The UniBus 8 input expander connects to an Integriti Security Controller (ISC), 8 zone expander or 16 zone expander module via the UniBus port. It provides an additional 8 zone inputs that support all Integriti zone types including multistate and counter types along with extra detector power supply connections (DET+) to simplify device wiring.

The UniBus 8 input expander is designed for installation within the same enclosure as its UniBus host module.

• 8 Universal Zone Inputs
• Support for Multistate EOL circuits
• Support for counter type inputs
• Programmable de-bounce times
• DIP switch addressable first zone 1, 9, 17 or 25
• UniBus loop-through connectors
• 4 Way DET+ 13.75V outputs
• 2 LED status / fault indicators
• Surge protected inputs
• Over-The-Wire firmware upgradable
• Integriti 'C' size footprint 94 x 94mm
• This module requires a UNIBUS host (LAN expander - IR-996005PCB&K) when using Inception.

Datasheets

• IR-996500PCB&K Datasheet.pdf
