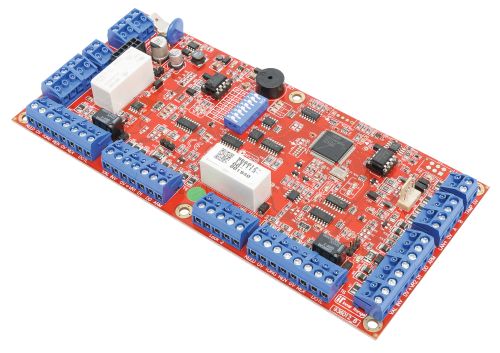

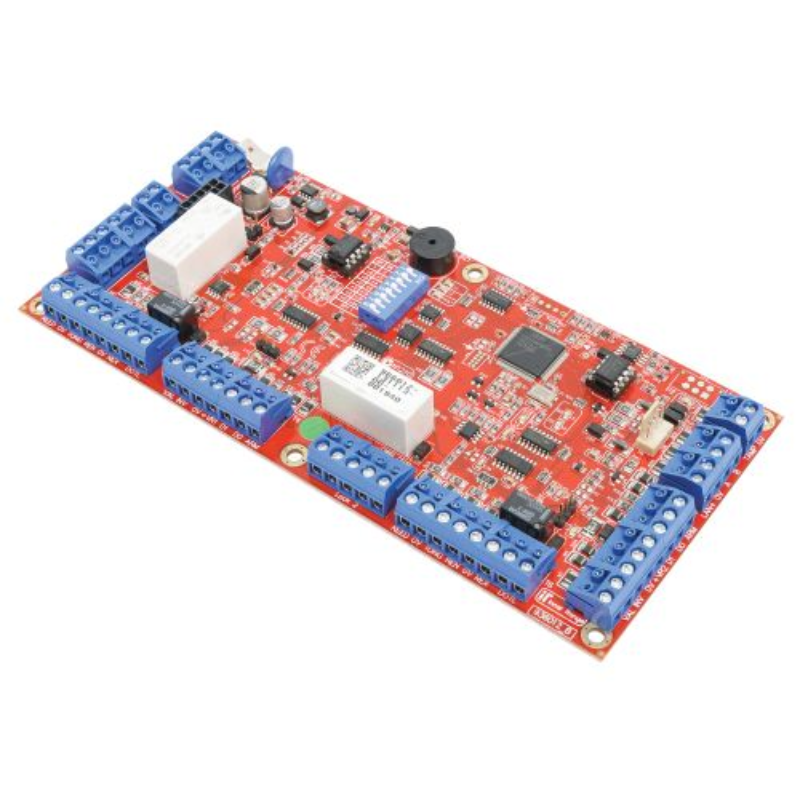

The Integriti Standard LAN Access Module (SLAM) can be used to control and monitor up to 2 doors on the Integriti RS-485 LAN, or alternatively via IP using LAN over Ethernet modules (Part #: IR-995093).

The module itself is designed to support up to two Wiegand readers and can be used with up to four Inner Range RS-485 SIFER readers to accommodate entry and exit readers on both doors. Alternatively, the two Wiegand readers may be connected to allow control and monitoring of a single door with entry and exit readers or two doors with a single reader each.

The SLAM offers a complete suite of programmable options to provide advanced high security access control, security area control and door alarm monitoring functions. Cached functionality is also provided via the on board database to provide offline access control operation for up to 2,000 user cards if communications to the master controller are lost. Cache expiry time for the module can be configured with expiry times ranging from 1 hour to 4 months. In addition, each user has an option to be stored permanently within the modules cache, particularly useful for situations where senior staff may need guaranteed access if the module is offline.

Also provided are a variety of additional features including: Heavy duty relays, auxiliary outputs for 'Valid', 'Invalid' and 'Door Open Too Long' warnings, and a host of programming options allowing for each Reader to be configured independently and security area control to be integrated with access control where required.
