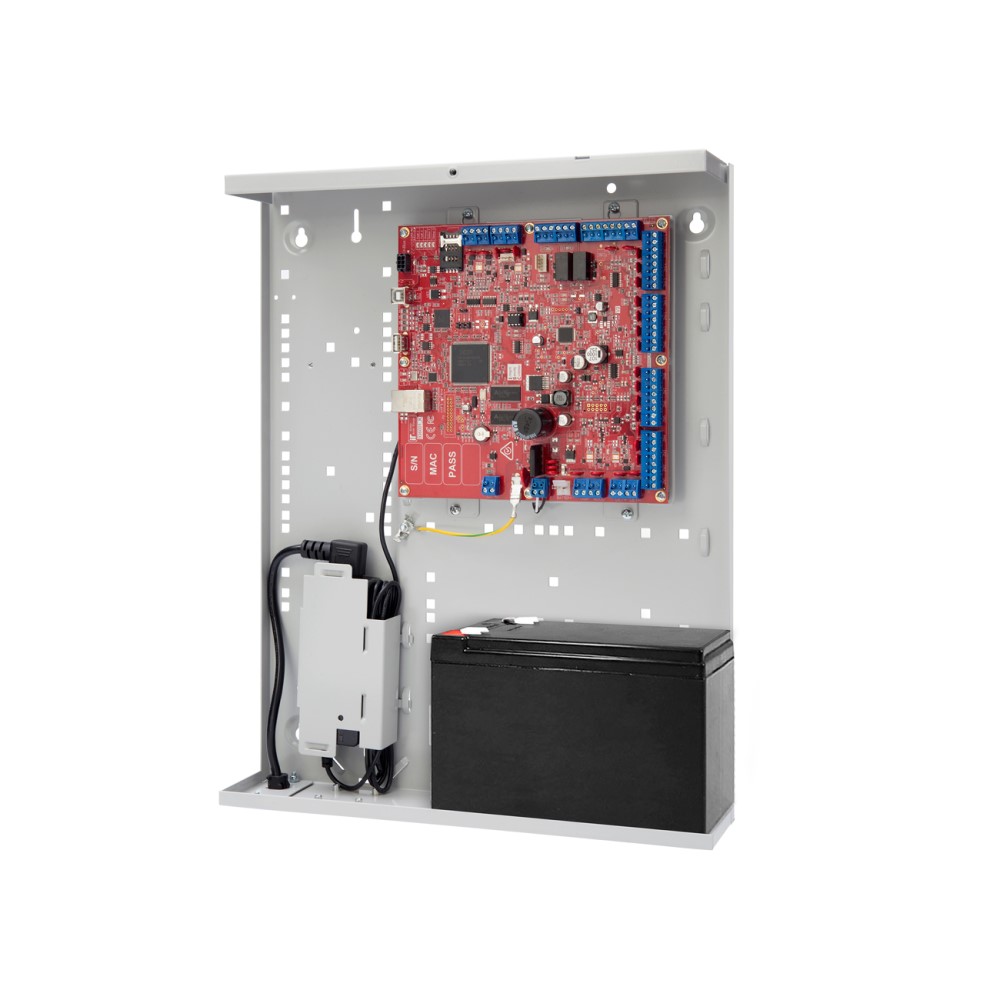

The IR-996001IPAUPSB is an IP-based master controller for the Integriti modular hardware system. Equipped with 16 zone inputs, 2 auxiliary relay outputs, power supply, ethernet port, and internal/external siren outputs, the ISC can be used either stand-alone or expanded further via its UniBus and RS-485 Sub-LAN ports. The flexible, modular design of the ISC allows a single stand-alone controller to be expanded to form a network of IP or RS-485 expansion modules supporting up to 3,000 zone inputs, 3,000 outputs, 250 areas and over 1,000 card readers and 250 doors. User capacity of up to 100,000 is available, and capacity for 1,000,000 users is also available with the user expansion kit (IR-996002L5).

The ISC also offers a UniBus in-cabinet expansion interface where a variety of UniBus I/O and communications devices can be connected directly to the controller and housed within the same tamper-protected enclosure. Integriti's multi-controller architecture allows any number of ISC's to be combined within the Integriti software package to form a globally managed small, medium or enterprise sized system where the entire network of controllers is managed as a whole. This architecture allows for an infinite number of Readers, Doors, Areas, Zone Inputs and Outputs.

The IP only ISC does not include a modem dialler for traditional PSTN based alarm reporting. Alarm reporting can be achieved to a Multipath-IP enabled control room using SkyTunnel over Ethernet or by using a T4000 alarm communicator connected via serial cable.

1 x IR-996795 comes included.

Main Controller Features

• RJ45 - 10/100 Ethernet Port
• RS-485 Sub-LAN
• USB Master & Slave Ports
• UniBus In-Cabinet Expansion Interface
• Multipath-IP / GSM STU Port (Port Zero RS-232)
• 16 Zone Inputs - Multistate or Analogue
• 2 Auxiliary Output Relays & separate Watch Dog Output
• Dedicated Tamper Input
• Internal & External Siren Outputs
• Power Supply Present Indicator Output
• Intelligent Power Control via Smart Fuses
• 32 Bit ARM CPU with Real Time Clock
• 64 MB RAM / 4 GB Micro SD Memory
• Firmware Upgrade via USB, LAN or Software
• Pre-fitted in powered enclosure
• Includes T4000 serial cable
• Includes 12V 7Ah battery

Hardware Expansion Capabilities

• Zone Inputs - Expandable to 32 via Single UniBus Host - 3,000 in total over RS-485 LAN
• Auxiliary Outputs - Expandable to 32 via Single UniBus Host - 3,232 in total over RS-485 LAN
• Doors - Expandable to 250 over RS-485 LAN
• Readers - Expandable to 1,584 via RS-485 Sub-LAN
• On-board User capacity - 100,000 / 1,000,000 with User Expansion Kit fitted (IR-996002L5)
• On-board Review Events - 100,002

Datasheets

• IR-996001IPAUPxx Datasheet.pdf

• Power Input Voltage: 24V DC or 16-18V AC, 50/60 Hertz
• Siren Drivers: Each capable of driving a 4 Ohm speaker (or 2 x 8 Ohm in parallel)
• Auxiliary Relay Ratings: 30 V DC 1A max
• Watchdog Relay Rating: 30 V DC 200mA max
• Operating temperature: 0 degrees C - 50 degrees C
• PCB Dimensions: 200mm (L) x 200mm (W) x 45mm (D)
• Enclosure Dimensions: Medium size enclosure 460mm (L) x 358mm (W) x 85mm (D)
• Battery: 12V, 7Ah
