Concept Integriti Rack Mount Enclosure with 3A Smart PSU

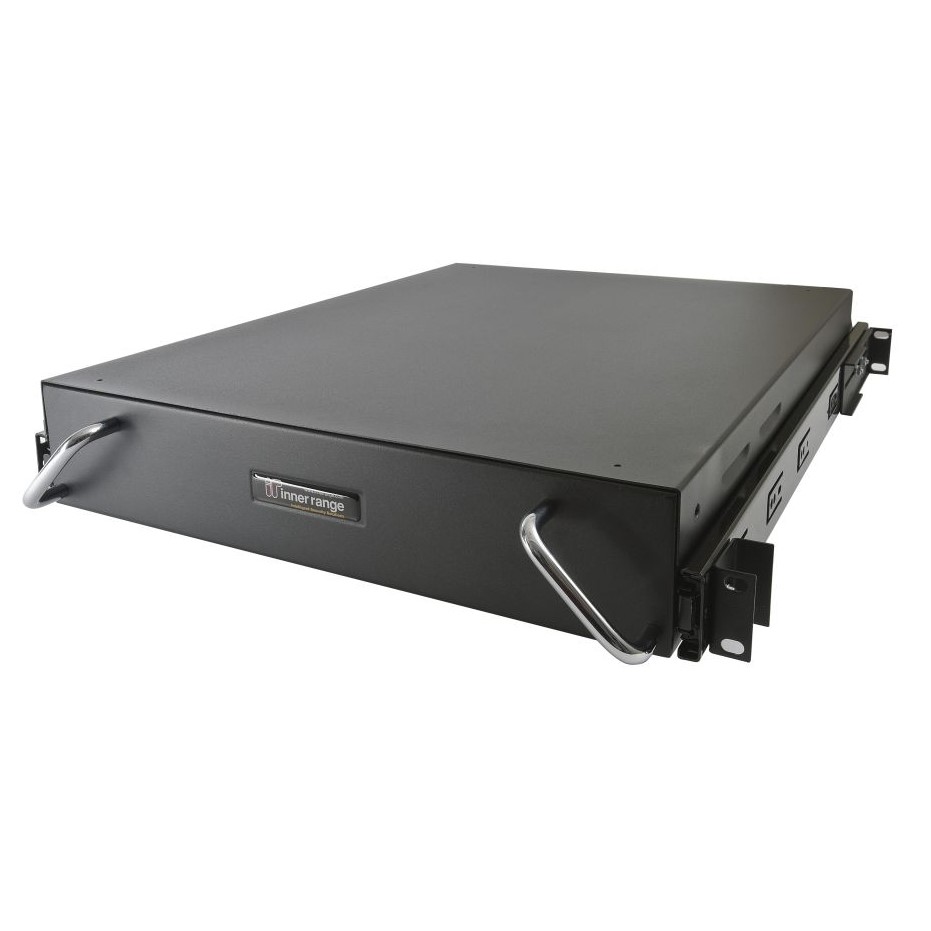

The Inner Range Rack Mount Enclosure (Drawer) provides a high security tamper monitored 2RU Rack Mounting solution for Integriti System Hardware and is backwards compatible with Concept 3000/4000 Hardware.

It features a truly universal design that allows virtually all Inner Range System Controllers and LAN modules to be installed into a 19" rack equipment cabinet without restricting critical access to cabling, termination of connections or access for commissioning and maintenance purposes.

Flexible installation options allow the drawer to be configured to meet a vast array of specifications, allowing mix & match installation of System Controllers, Universal Expanders, Relay Cards, Access Control Modules, Input Expanders, UniBus Expansion Cards, Multipath Communications Devices and up to 4 Doors of fully Intelligent Access Control.

The Rack Mount Drawer is also capable of housing up to two separate internal power supplies with two separate internal 12V,7Ah sealed lead acid back-up batteries.

Cabling to the drawer is managed via a rear mounted cable tie-down tray with a selection of 'knockout' style cable entry points.

The mains power connection is via an Industry standard IEC connector and the Ethernet Network Connection is made via a panel mounted RJ45 socket. All other cabling is routed and securely terminated inside the tamper monitored enclosure.

The drawer construction is of a very robust 1.2mm thick metal enclosure with fully welded corners and a fully sealed base. The entire drawer slides out of the rack providing full installation and service access to all components - without taking the system offline.

• 2RU Sliding 19" Rack Mountable Drawer
• Suit 19" Rack with front and back rail mounts
• Adjustable 600mm Ball Bearing runners to suit rail spacings between 520 - 740mm
• Universal PCB Mounting Plate and Battery Holders
• Sturdy metal drawer with sealed base and welded corners
• Tamper monitored ventilated metal cover
• Rear Cable Tie Down Tray
• Supplied with ball bearing runners
• 3 x 2-Way Circular Cable Entry Knockouts, 35mm or 64mm - Supplied with cable entry bushing
• Ethernet Connection - RJ45 Chassis Mount
• Mains Power Connection - IEC 240Vac Mains power connector - Fused
• Assisted Ventilation - Provision for 60mm panel mount fan
• Mounting positions for all Integriti Controllers, UniBus Expanders & Integriti LAN modules
• House up to 2 x 7Ah 12V Batteries
• House up to 2 x 3A Ac transformers or 1 x 3A & 1 x 4A
