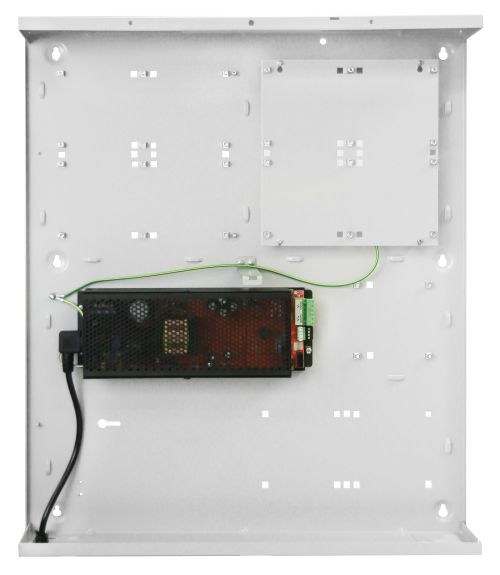

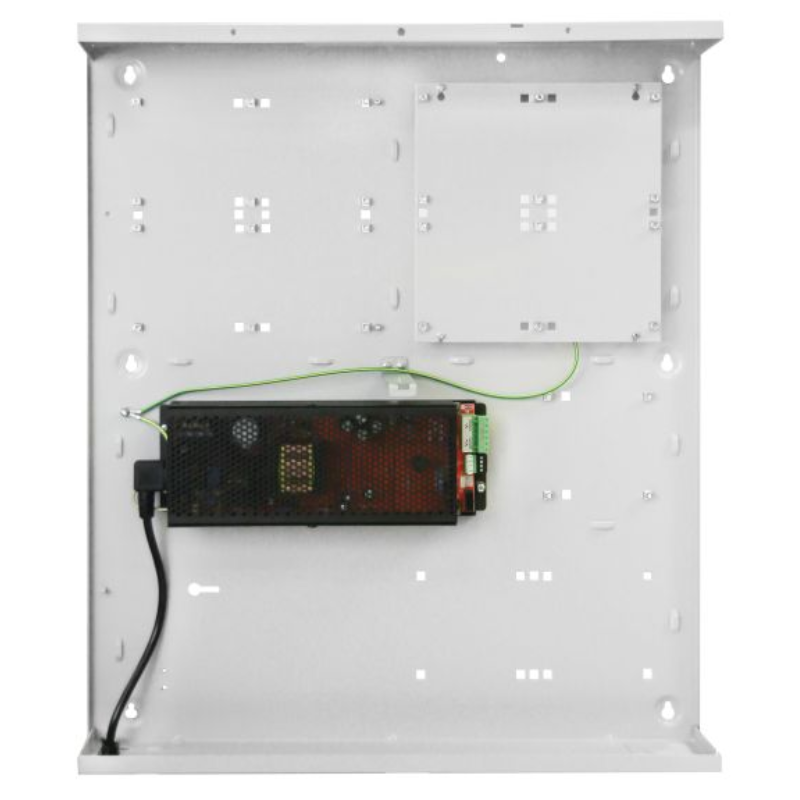

The wide body low profile powered enclosure is a locking general purpose ancillary enclosure. The powered option incorporates a battery-backed 12 Volt, 8 amp smart power supply (note: battery purchased separately). The enclosure can accommodate various combinations of Integriti controllers, modules and/or peripheral devices.

The 8A smart power supply provided in the 'powered' version can be used to power Integriti modules and associated devices such as detectors and auxiliary devices. It is a fully assembled, enclosed unit with a standard IEC power cord and does not require installers to be specially certified. It features a high reliability design that offers exceptional stability when used with the recommended battery type and is also compatible with proximity type reader heads.

• 8 amp smart power supply included
• Flexible mounting options for all Integriti PCBs
• Accommodates up to 2 x 18Ah batteries
• Tamper protected, key lockable
• Low profile metal enclosure: 595 (H) x 510 (W) x 90mm (D)

Datasheets

• IR-995204xx Datasheet.pdf
