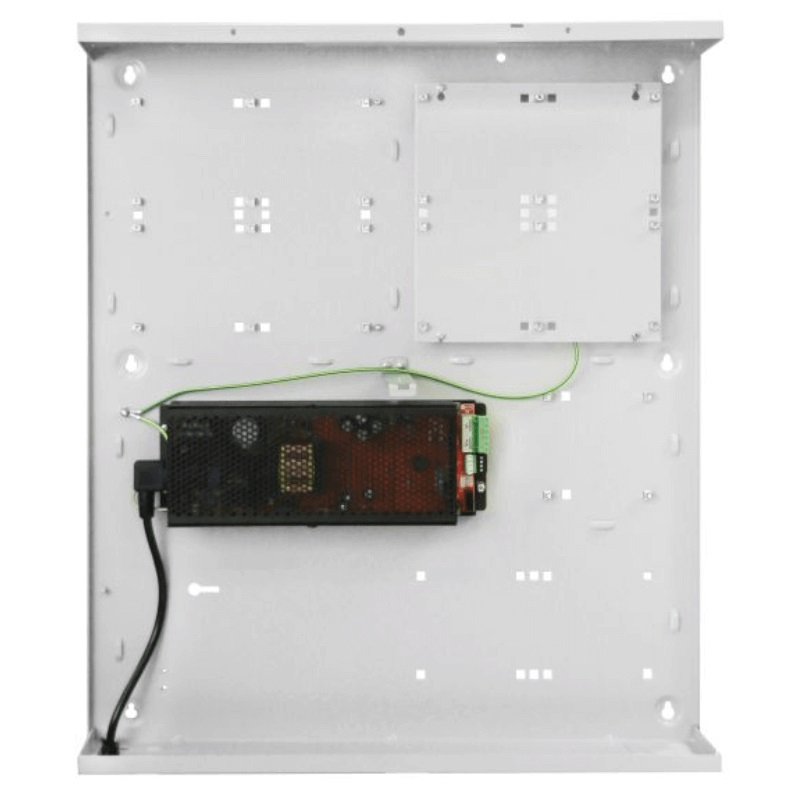

Integriti Wide Body Powered Enclosure with 10 Amp 13.75VDC Power Supply
The Inner Range wide body enclosure is a key lockable sturdy metal enclosure designed for installation of Integriti Access Control solutions where all the Integriti equipment, 3-, 8- or 10-Amp power supply and backup batteries can be contained within a single tamper monitored enclosure. The enclosure will house all the equipment required for as many as 8 doors. Multiple enclosures can be installed throughout a building of any size to provide access control for the entire facility while keeping the total quantity of installed enclosures to a minimum. The 10 Amp 13.75VDC Power Factor Corrected (PFC) Smart Power Supply Unit (PSU) is a highly efficient power supply solution designed to meet the modern high-spec requirements unique to access control and intruder systems. Monitoring the power supply status is pivotal to the operation and performance of any security system, and the Inner Range 10 Amp smart PSU delivers this very effectively
- High-level monitoring of PSU status with supported modules:
- Battery fault, low battery and battery not present
- Battery failed test
- AC supply failure
- Supply low volts
- Power supply failure
- LAN+ smart fuse tripped detector+ smart fuse tripped dynamic battery testing
- Deep discharge battery protection
- Battery reverse polarity protection
- Quick-Connect PSU interface for Inner Range modules fully overload protected
- Smart fuse protection
- Intelligent load sharing
- LED status indicators
- Universal low-level status outputs - AC fail & battery fail separate battery charger output
- Constant current limiting on battery charger output
- 3 x heavy duty DC output connection
- 110-240V AC IEC mains cable input
- Key lockable robust metal enclosure
- Designed for access control installations
- Houses all equipment required for up to 8 doors
- Space for 2 x 18Ah lead acid batteries
- Low profile design size 595(L) x 512(W) x 95(D)
- 3 x 50mmx50mm conduit entry points
- 7 x 25mm round conduit entry points
- Discrete thru-wall cable entry via back panel
- Provision for dual front/rear tamper monitoring
- Includes equipment mounting plate
- Hinged expansion plate available (part IR-999027)
