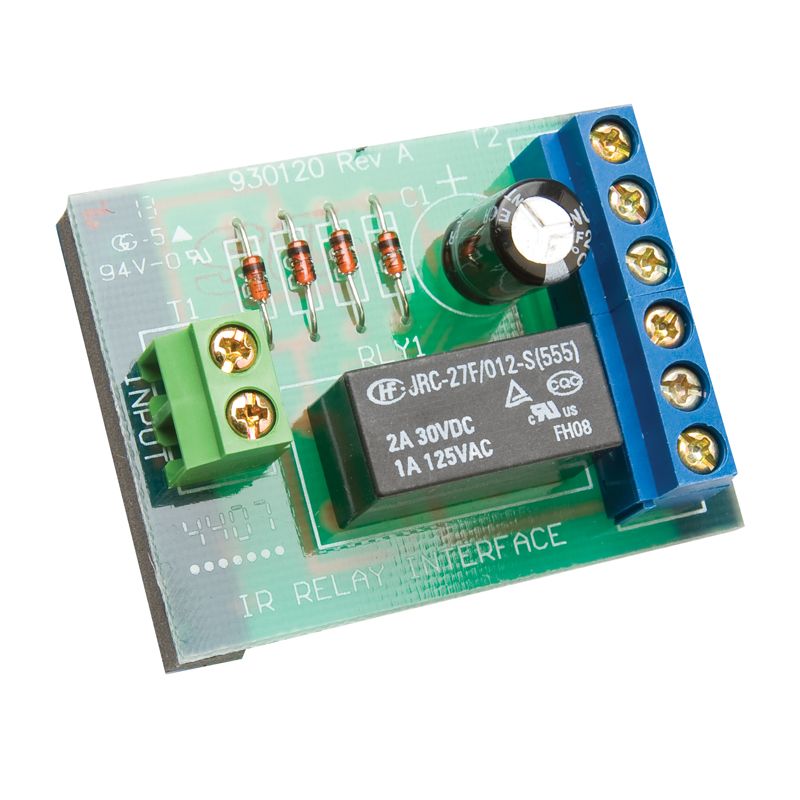

1 Amp DPDT Relay Board (Siren or Open Collector O/P to Dry Contact)

Home // Access Control // Concept 4000 // Peripherals // Passive Relay Boards // 1 Amp DPDT Relay Board (Siren or Open Collector O/P to Dry Contact)

Code: IR-995085
Brand: Concept
Product Details
1 Amp DPDT Relay Board (Siren or Open Collector O/P to Dry Contact)

Overview
Features
Specifications
Downloads

The 1 Amp Double-pole, double throw Relay interface provides low voltage relay outputs offering a general purpose switched interface. A single relay is provided with connections for two independent sets of contacts. The relays can be switched by any Open collector Auxiliary output capable of switching a minimum of 20mA.

Convert open collector outputs into relay outputs
Connect to any Siren output
1Amp DPDT contacts

38mm(W) x 48mm(L) x 20mm(H)
Current Consumption - 15mA per relay
