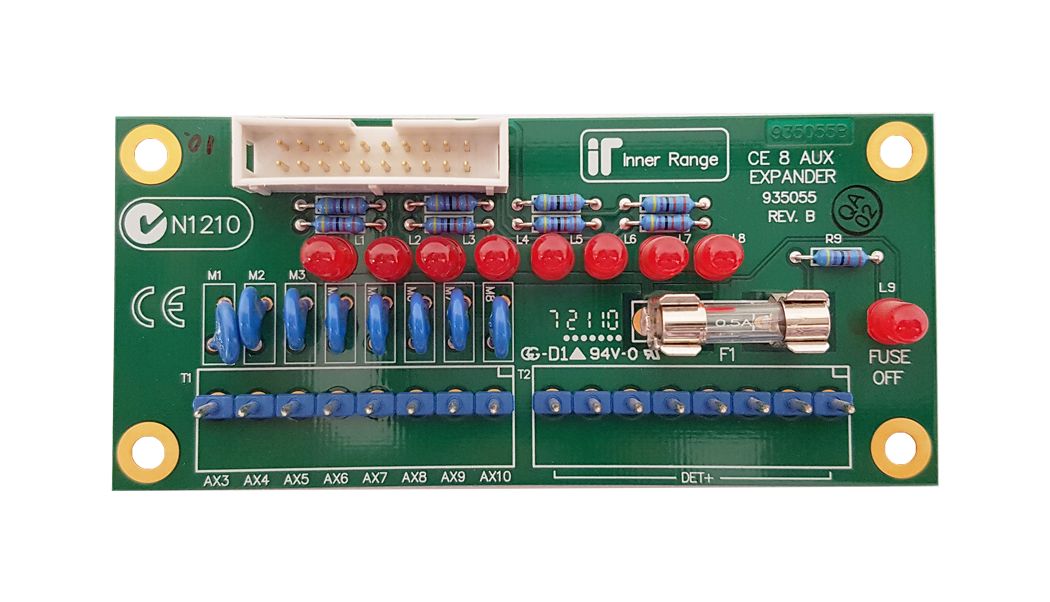

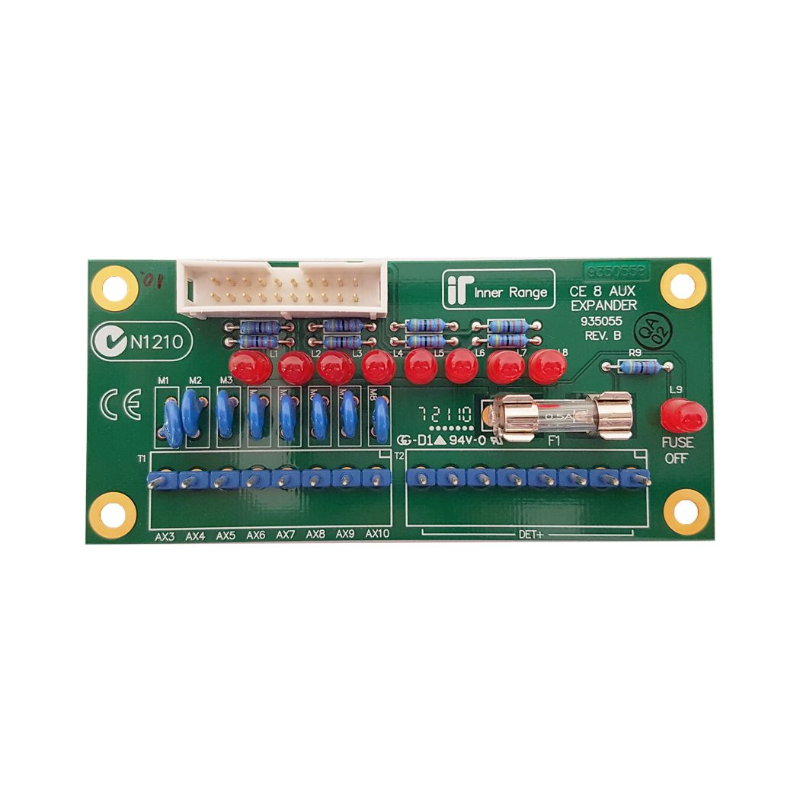

8 Auxiliary Expander Board for Control Module

This handy expansion board complements the two on-board auxiliary outputs on the Concept 4000 Control Module with the addition of eight open-collector outputs. The board connects directly onto the Control Module.

• 8 open-collector outputs
• Each output can switch up to 100mA
• Connects directly to the Concept 4000 Control Module
• Ribbon cable and accessories included
• Powered via host module

• 110mm(L) x 48mm(W)
• 20mA minimum operational current
