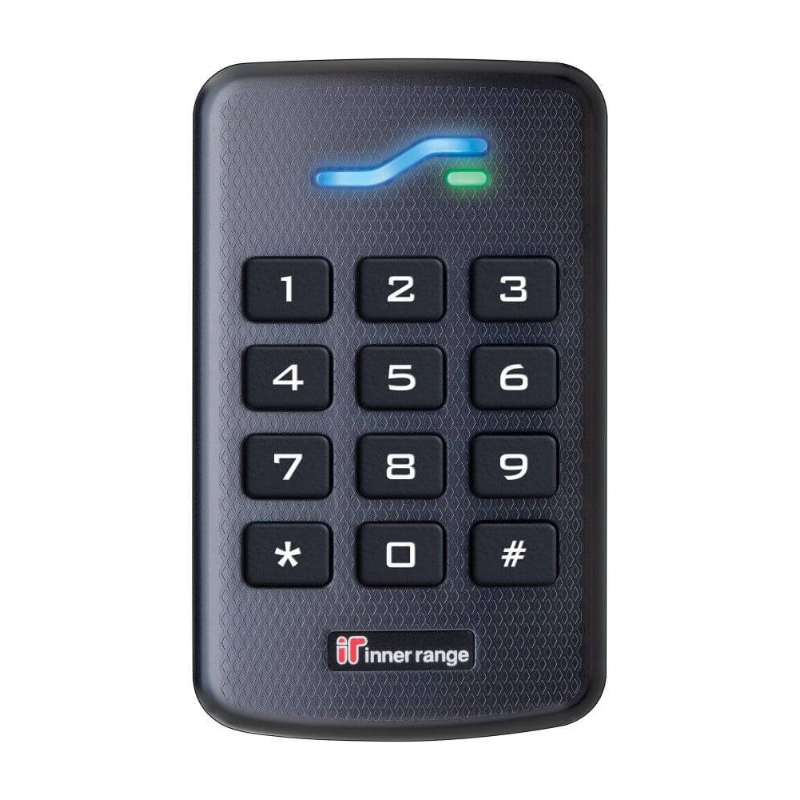

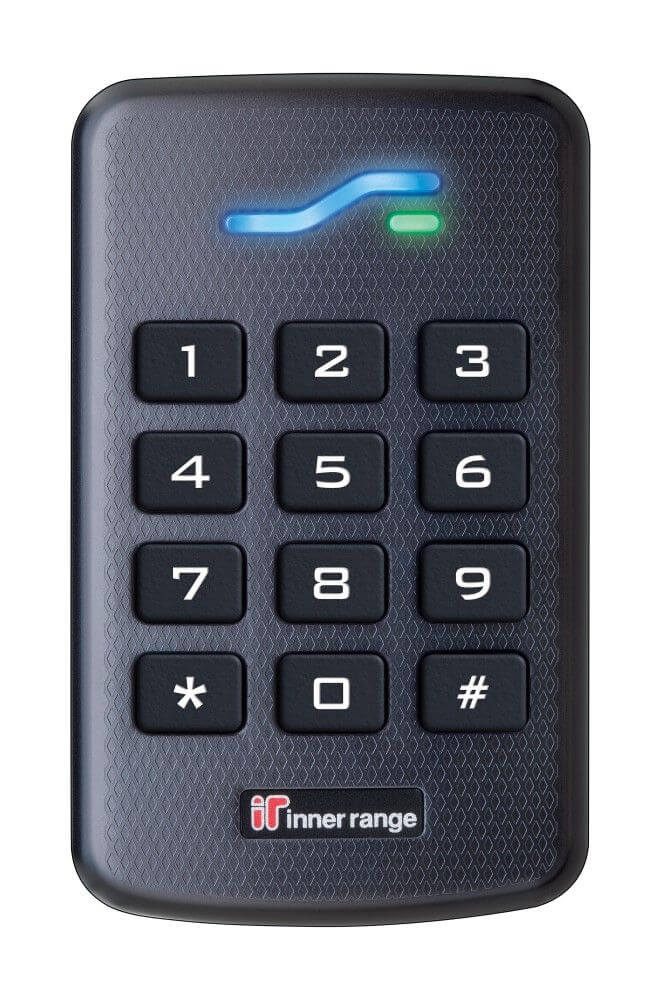

The SIFER keypad is a combined IP67 rated keypad and smart card reader that allows dual credential card & pin high security access control, (pin only or card only is also supported).

The SIFER keypad is a multi-drop RS-485 device that employs 128 bit AES encryption from the card/keypad through to the door module, providing a far superior level of security than that of traditional Wiegand based keypads and card readers.

SIFER keypads utilise the Mifare DESfire EV1 card format. As SIFER keypads utilise a superset of the OSDP protocol, the keypads may also be deployed on any system capable of using OSDP. SIFER keypads are connected to the RS-485 reader port for full reader-in and reader-out operation of various Inner Range products.

• Secure 128bit AES encryption
• Encrypted from keypad/card through to access module
• Supports card & pin, card only or pin only modes
• Auto dimming backlit silicon rubber keypad
• Mifare DESfire EV1 card format
• Water & dust resistant to IP67
• Vandal resistant (fully potted)
• Flexible LED colour & function assignment
• Audible buzzer (can use as DOTL)
• Multi-drop RS-485 reader LAN
• Individual reader heartbeat monitoring
• Integriti auto reader discovery
• OSDP compatible
• Reads card serial number (CSN) from 3rd party cards
• Support for custom site codes and site specific encryption
• User programmable cards offer great flexibility for installers
• Global configuration from Integriti systems (including firmware updates)
• Small footprint (dimensions: 64 (W) x 106(H) x 18 (D) mm)

Datasheets

• IR-994725xx Datasheet.pdf
