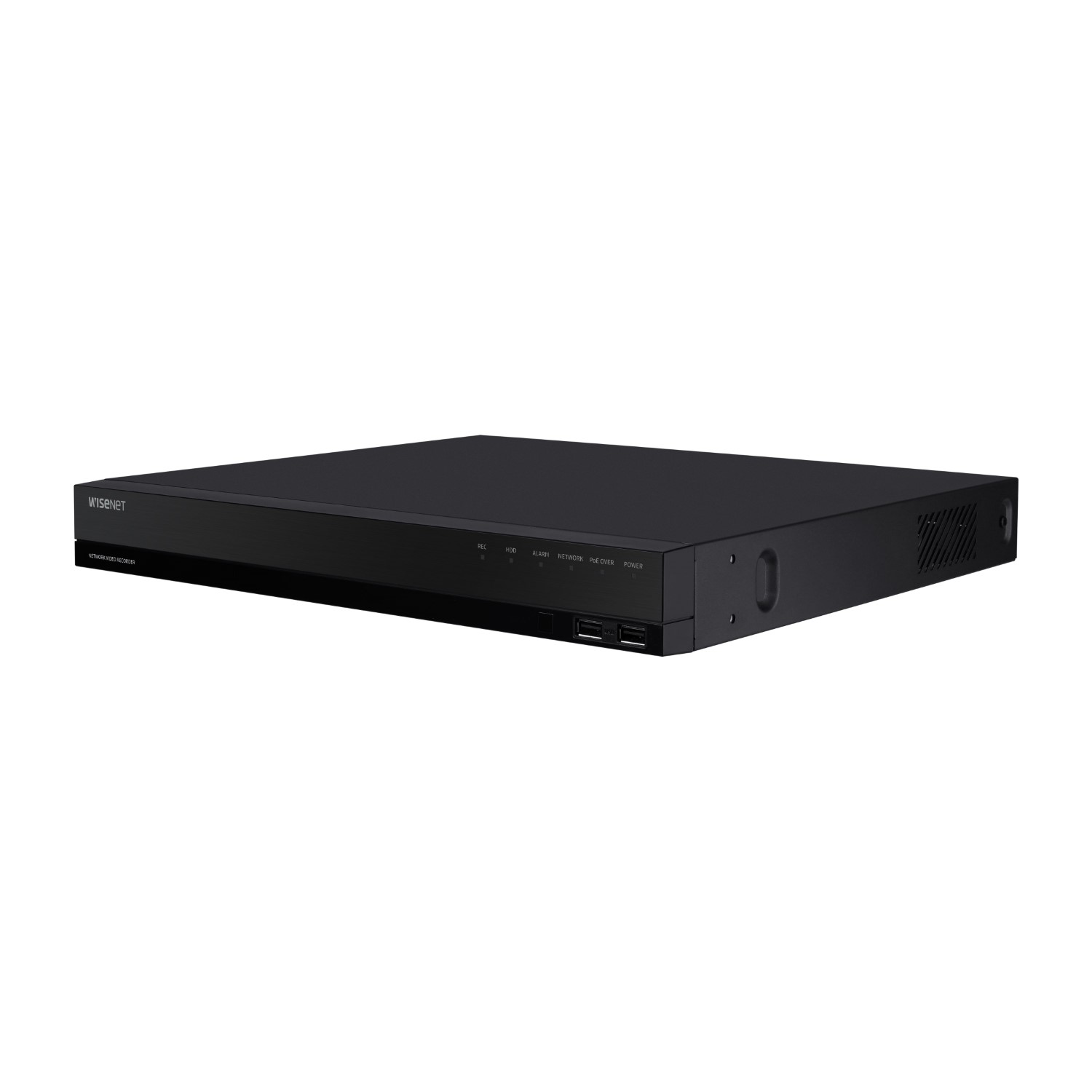

The Hanwha HWK-WRN-8-3TB is a Wisenet WAVE optimised 1U rack-mounted network video recorder kit capable of recording up to 80Mbps and comes with 3TB HDD of storage. The Linux Ubuntu OS is utilised for stability and quick setup. Each is pre-configured with the Wisenet WAVE VMS server and client and preloaded with 4 professional licences to ensure quick and easy deployment with minimum setup time.

• Max 5MP cameras
• Up to 8 PoE/PoE+ ports with a total power budget of 100W
• Includes 4 WAVE pro licences
• Supports H.265/H.264/MJPEG cameras
• HDMI/VGA monitor outputs for configuration and basic monitoring
• PoE port control and alarm I/O supported
• ONVIF camera compliant
• Rack mountable
• Supports up to 12TB of internal storage with max 2 HDDs
• Recommended maximum of 30 servers for a merged system
• Preloaded with Ubuntu Linux 18.04 LTS and WAVE VMS client and server

User Manuals

• HWK-WRN-x-xTB User Manual.pdf

• Form factor: 1RU rack mount chassis
• Colour: black
• Material: metal
• Power input: 100-240V AC
• Power supply: 164W max with 2 HDDs
• Operating temperature: 0 degrees to 40 degrees
• Operating humidity: 20 percent to 85 percent RH, non-condensing
• Dimensions: 370mm x 50.7mm x 324.3mm
• Weight: 2.7kg, without hard drives
