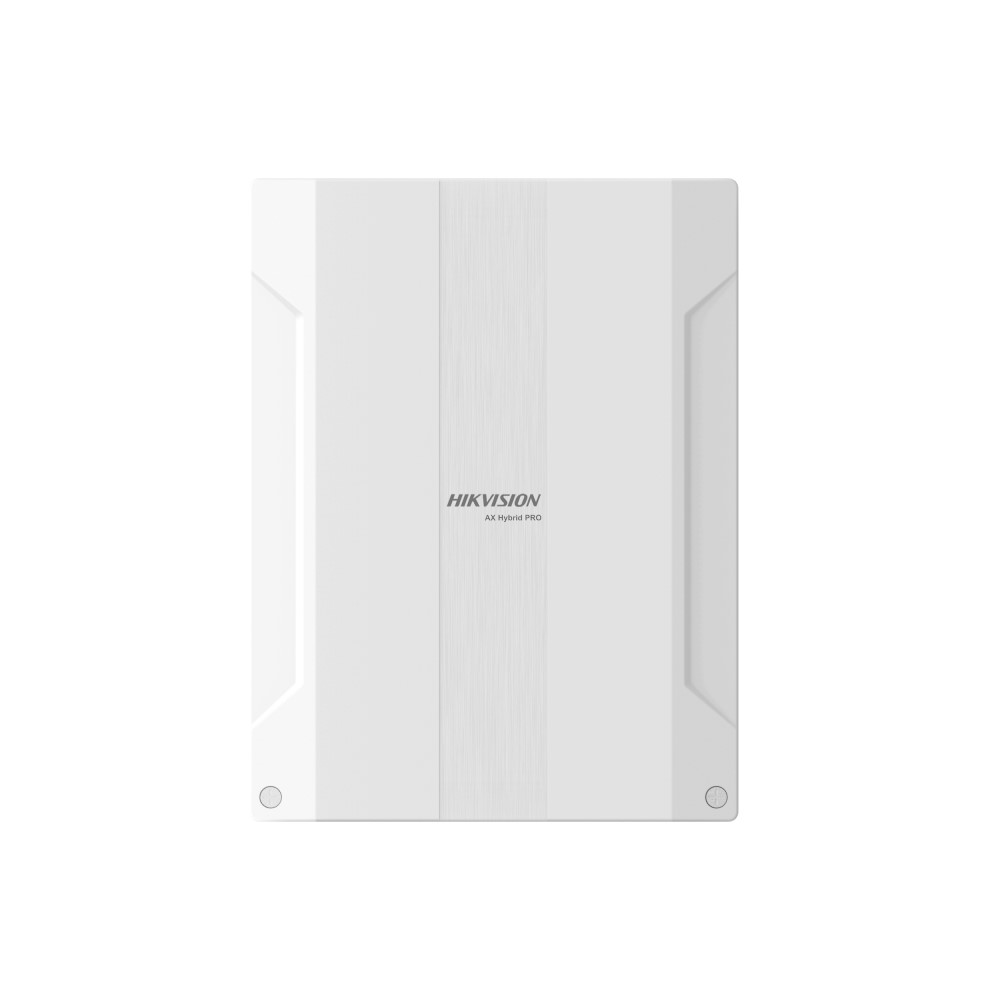

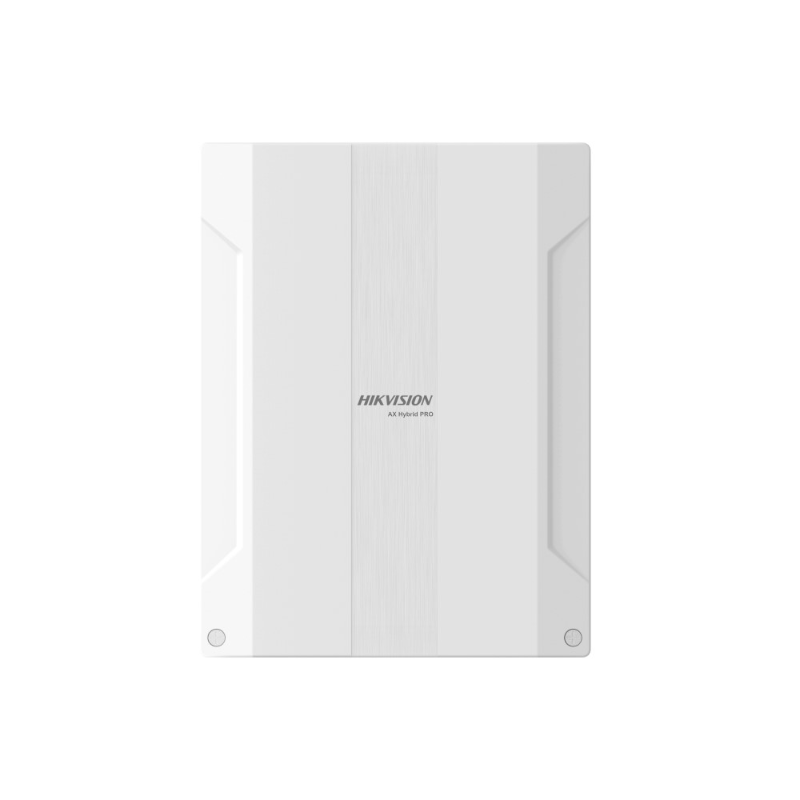

The Hikvision HIK-PHA64LPNP-HW is a wired AX Hybrid Pro intrusion control panel with wireless detectors and peripherals access capability. It comes equipped with Hikvision's Speed-X bus, which is used to transmit verification video/picture from a PIRCAM. The user can upload custom audio files to be played when an alarm is triggered. It also supports Hik-ProConnect, Hik-Connect, Hik IP Receiver, Hik IP Receiver Pro and Hik-Central.

• The hybrid system includes 8 on-board zones and 56 wired/wireless zones expandable, 4 on-board outputs (2 relay outputs and 2 I/O outputs) and 60 wired/wireless outputs expandable
• Dual-path communication of alarm events and other signals over LAN, PSTN, Wi-Fi, GPRS or 3G/4G utilising a main and backup channel with configurable priority
• 4-ch onboard IP Camera video verification, supports video recording (5s pre-alarm + 2s post-alarm, or 2s pre-alarm + 5s post-alarm) for verification of the alarm by receiving email or mobile client notification
• Supports arming/disarming via keypad, keyfob, mobile client, iVMS-4200, SMS and tag
• Pushes alarm notification via messages and Hik-Connect
• Supports ISAPI, Cloud P2P, ISUP, CSV-IP and DC-09 protocol
• Supports 1 Speed-X BUS

Datasheets

• HIK-PHA64LPNP-HW Datasheet.pdf
