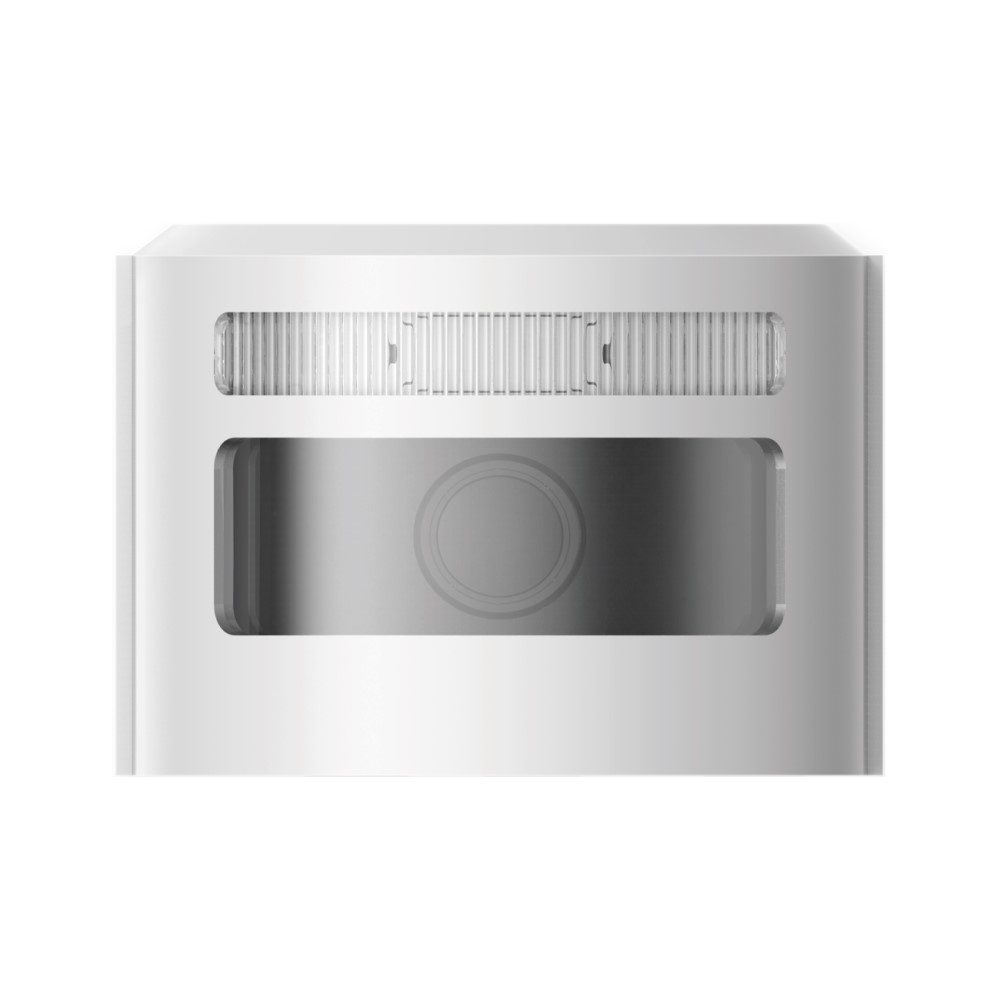

The Hikvision HIK-PDCM15PF-IR outdoor camera to suit the tri-tech detector has two-way wireless communication featuring tamper protection, low battery, and RF supervision. It has active IR anti-masking and is fully remote configurable through the Hik-Connect app.

N.B. The AX PRO system is not compatible with the Axiom system.

• IP65 rated
• The camera's angle can be adjusted to suit the tri-tech detector's angle
• Easy installation design

Datasheets

• HIK-PDCM15PF-IR Datasheet.pdf

• Detection method: video verification
• Lens: 2mm
• Field of view: 137.2 degrees (H) x 80.1 degrees (V)
• Image type: JPEG
• Resolution: 640 x 480 max
• Power supply: 3V DC
• Power consumption: 1200mA
• Size: 74.1mm x 72.35mm x 53mm
• Weight: 155g
• Ingress protection: IP65
