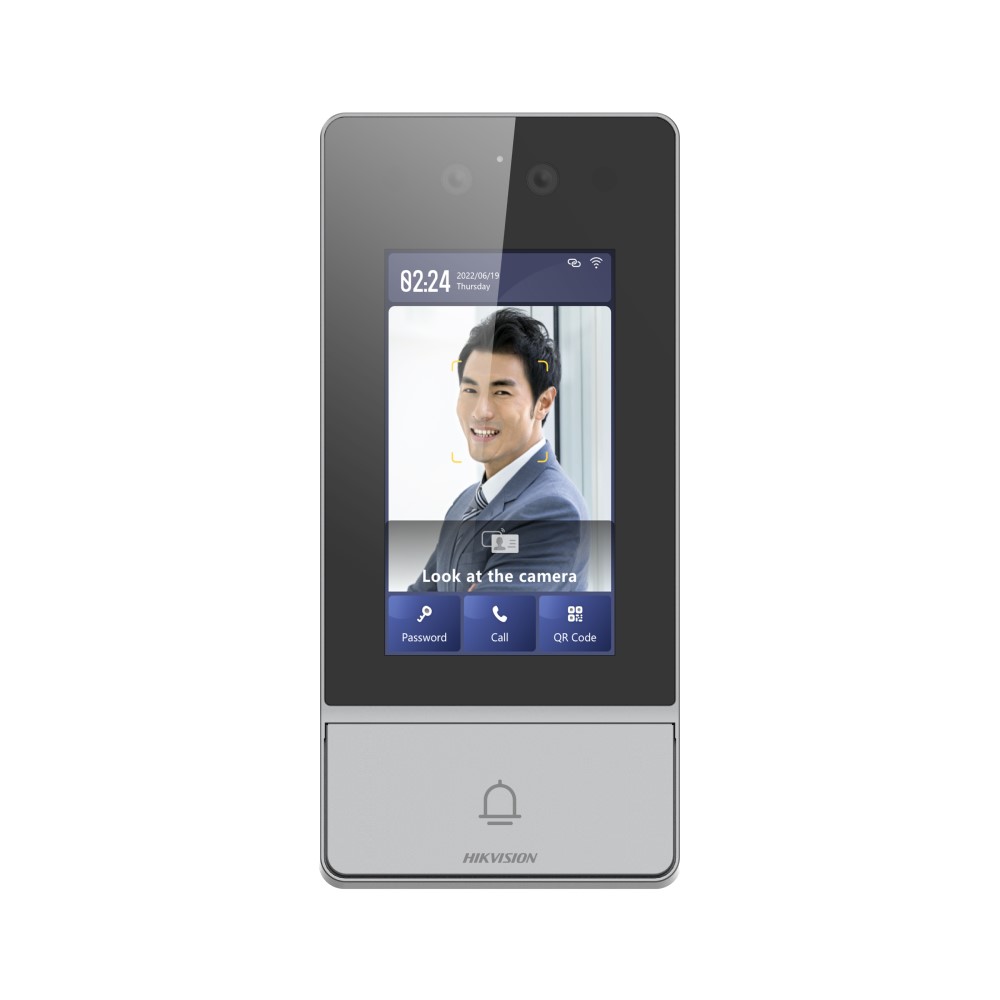

Hikvision Gen 2 Intercom Villa Door Station, 4.3" Touch Screen, IP65, IK09, MFA

Hikvision's HIK-KV9503-WBE1 series door station is a versatile intercom that suits many applications. It features a mechanical call button for traditional villa scenarios, as well as a touch screen that supports a calling list or keypad for typical multi-complex or apartment environments. As well as a flexible intercom device, the HIK-KV9503-WBE1 features multi-factor access control options, such as facial recognition, RFID cards and PIN codes to open entry points for authorised personnel.

• Supports web configuration
• 4.3-inch colour IPS touch screen
• 2 MP wide-angle dual-lens HD camera with WDR
• Face, card, or PIN code authentication methods
• Mechanical call button
• 500 call list capacity
• 10,000 face capacity
• 20,000 user capacity
• 100,000 card capacity

Datasheets

• HIK-KV9503-WBE1 Datasheet.pdf

• Screen size: 4.3 inch
• Resolution: 800x 480
• Wi-Fi: 802.11 b/g/n
• Wired network: 10/100 Mbps self-adaptive Ethernet
• Inputs: 4 (2 exit buttons and 2 door contacts)
• Outputs: 2 (relay for strike control)
• Face recognition distance: 0.3m to 2m
• Power input: 12V DC, 1.5A
• Working temperature: -40 C to 60 C
• Dimensions: 181.93mm (H) x 84.78mm (W) x 25.63 mm (D)
