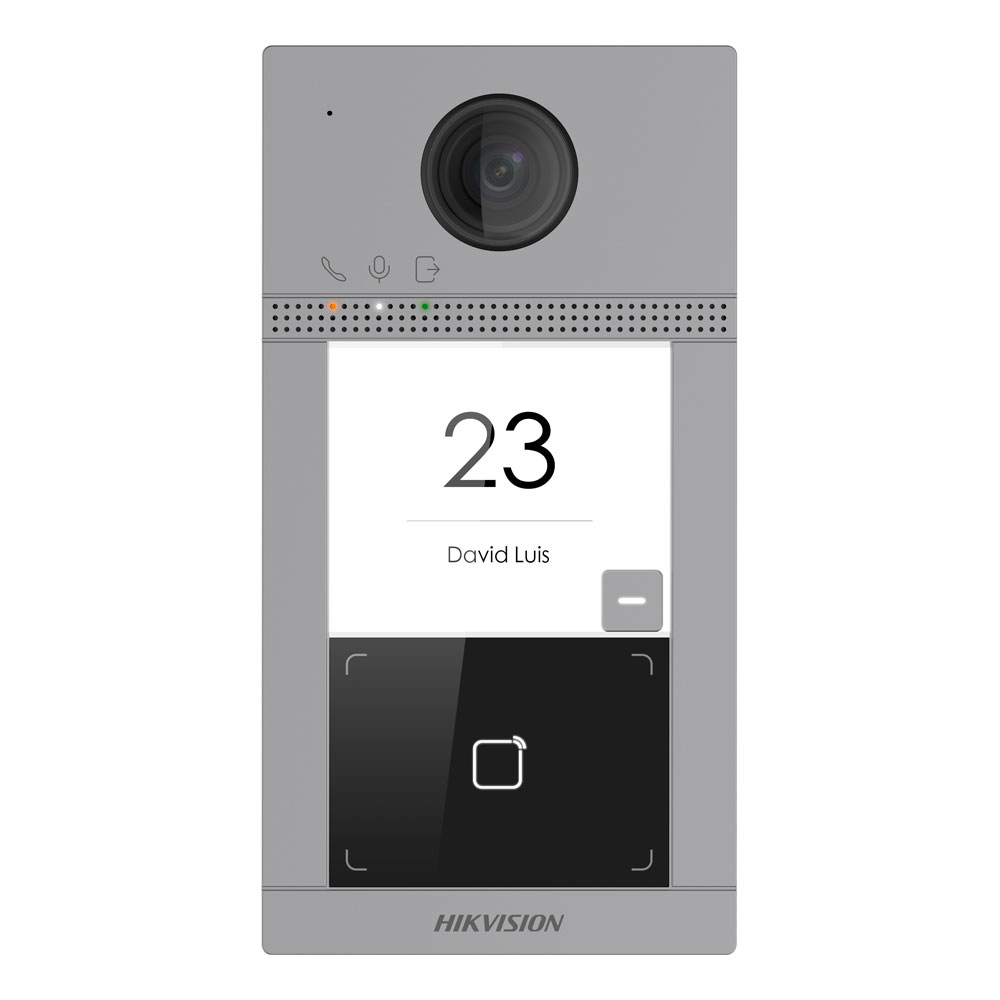

Hikvision 2nd Gen IP 2MP Villa Door Station, 1 Button, Wi-Fi, Mifare, Aluminium, Flush

Hikvision's HIK-KV8113-WME1 is a single button, aluminium, villa door entry solution that incorporates the sleek and modern Gen2 look. The cutting-edge feature of this door station is onboard Wi-Fi. Simply supply power to the unit and add a Wi-Fi connection to the router and then you will have a professionally installed solution.

When calling a room station, it can also call a mobile phone through the Hik-Connect mobile app. It also integrates to other Hikvision CCTV solutions and the Inner Range access control systems. This then provides a comprehensive building management solution that is unrivalled in the market today.

The HIK-KABV8113-RS-S shroud is also available from Hikvision for an added protective hood cover.

• Wi-Fi
• Card reader
• Calling, microphone on and door open LED indication
• 2MP HD camera
• Noise suppression and echo cancellation
• Low illumination
• True wide dynamic range
• Access control functions
• Tamper-proof
• Configuration remotely via web
• Flush mount
• Relay outputs

Datasheets

• HIK-KV8113-WME1x Datasheet.pdf

• Power: 12VDC or PoE, <10W
• Protection level: IK08
• Field of view: H: 129 degrees, V: 75 degrees
• Video compression: H.264
• Mainstream resolution: 1920 x 1080p
• Substream resolution: 704 x 576
• Network protocol: TCP/IP, RTSP
• Card reader: 13.56MHz Mifare CSN
• Working Temperature: -40 to 53 degrees Celsius
• Dimensions: 174mm, 91mm, 30mm (protrudes 12mm from wall)
• Material: aluminium
• Relay: 2 outputs
