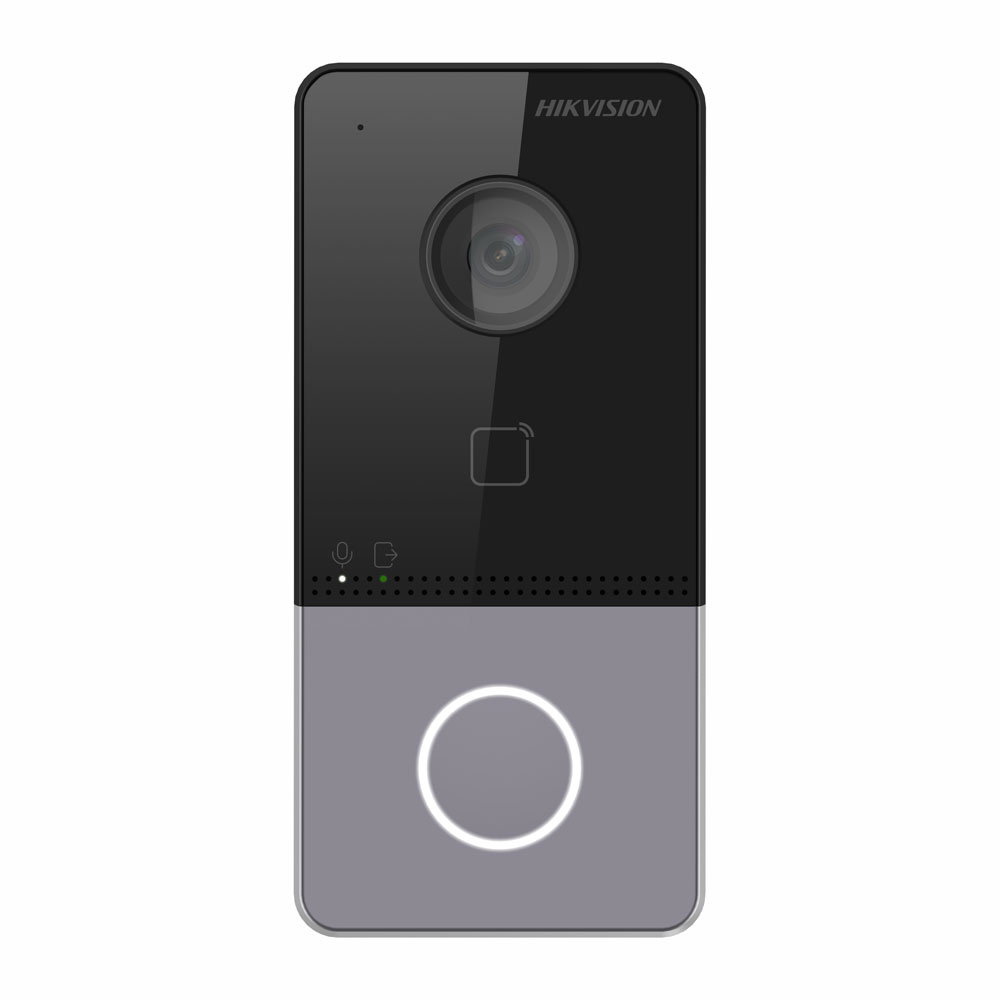

Hikvision 2nd Gen IP Villa Door Station, 1 Button, 2MP, 12VDC/POE, Wi-Fi, Mifare

The Hikvision HIK-KV6113-WPE1 is a single button, apartment door entry solution that incorporates the sleek and modern Gen2 look. The cutting-edge feature of this door station is onboard Wi-Fi. Simply supply power to the unit and add a Wi-Fi connection to the router - then you will have a professionally installed solution.

This range suits the Hik-Connect app with a room station. It also integrates to other Hikvision CCTV solutions and the Inner Range access control systems, which then provides a comprehensive building management solution that is unrivalled in the market today.

• WiFi
• Relay output
• Microphone and door LED indication
• Card reader
• 2 MP HD camera
• Noise suppression and echo cancellation
• Single button
• Low illumination
• Access control functions
• Tamper-proof
• Configuration remotely via web

Datasheets

• HIK-KV6113-WPE1 Datasheet.pdf

• Power: 12VDC or PoE, <10W
• Relay: 1 output
• Field of view: H: 129 degrees, V: 75 degrees
• Video compression: H.264
• Mainstream resolution: 1920 x 1080p
• Substream resolution: 704 x 576
• Network protocol: TCP/IP, RTSP
• Card reader: 13.56MHz Mifare CSN
• Working temperature: -40 to 53 degrees Celsius
• Dimensions: 138mm x 65mm x 27mm
