Hikvision 2nd Gen Concierge Master Intercom Station, 10" Screen, Camera, POE/12VDC

HIK-KM9503
AVAILABLE TO ORDER
Hikvision 2nd Gen Concierge Master Intercom Station, 10" Screen, Camera, POE/12VDC

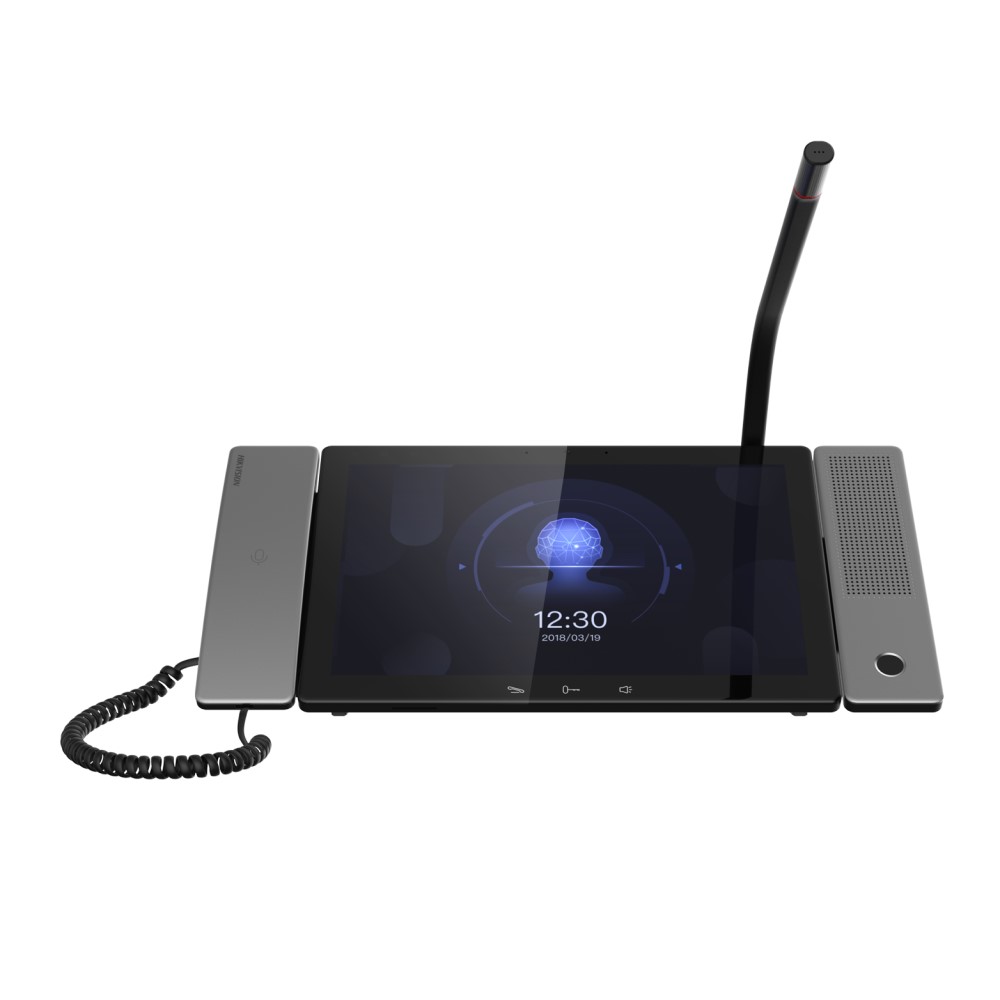

The Hikvision HIK-KM9503 concierge master station comes equipped with a handset, foldable stand and extendable gooseneck microphone as well as mounting plates that offer various installation options for wall or desk surfaces. It can also be utilised to configure an outer door station that can call two or more separate buildings or systems. The loudspeaker, fingerprint reader, 10.1” touch screen, HDMI output and alarm inputs and outputs make this a feature packed intercom solution.

  • Resolution: 1280 x 800
  • Power: 12V DC or PoE (LAN 1 only)
  • Operating system: (based on) Android 7.1
  • Alarm inputs: 2
  • Relay outputs: 2
  • Ethernet ports: 2
  • Dimensions: 292mm W (excluding loudspeaker/fingerprint module) x 166mm H x 31mm D
  • Weight: 1.286kg

  • 10.1-inch touch screen
  • 3.5mm audio output jack for external speakers
  • Goose neck microphone
  • HDMI output for larger screen monitoring
  • Sturdy foldable stand
  • Power over Ethernet (PoE)
  • Alarm inputs
  • Relay outputs
  • Desk or wall mount options
  • Camera

Datasheets
