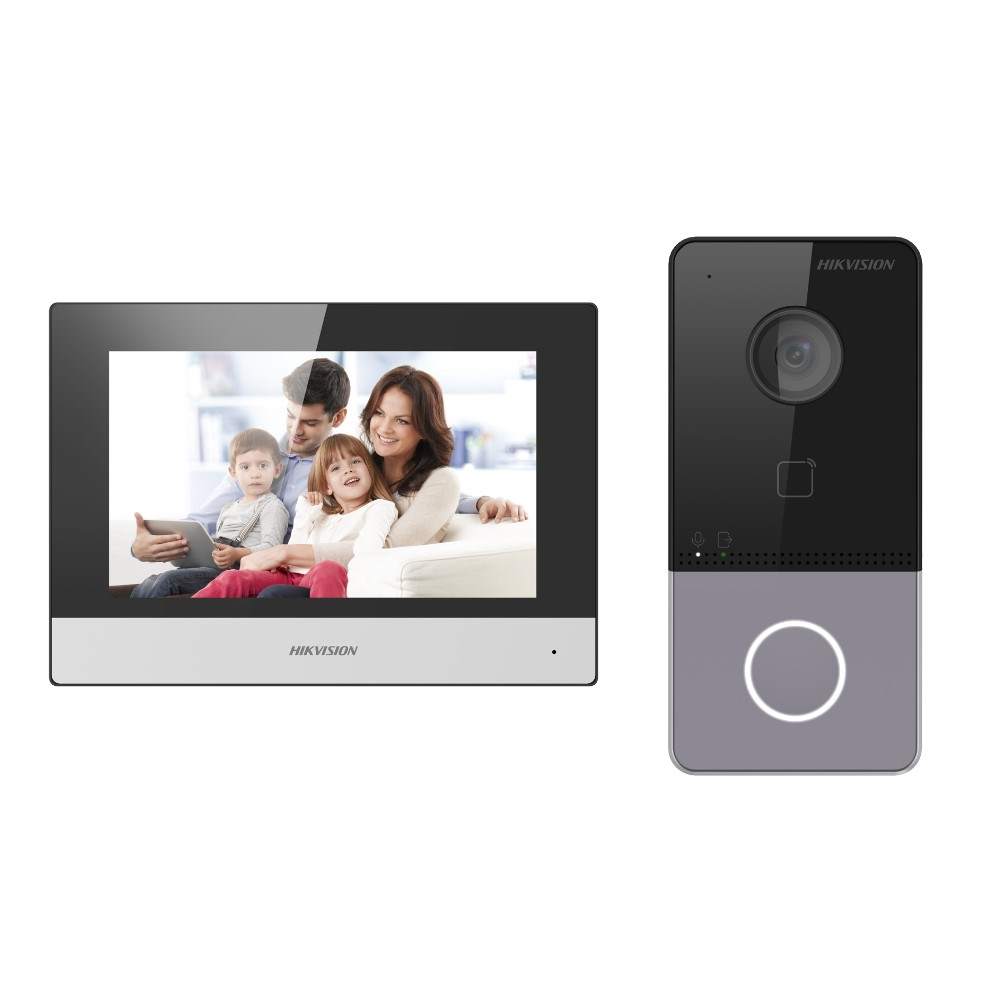

Hikvision 2nd Gen IP Intercom Kit, 1 to 1 Villa, Wi-Fi, Plastic, Surface Mount

The Hikvision HIK-KIS603-P is a one-to-one IP villa bundle from the 2nd generation range. This bundle is made up of one villa door station and one 7 inch room station, both enabled with Wi-Fi. It also includes the required power supplies, simplifying the ordering process and ensuring a smooth setup. If required, the bundles can be expanded by adding individual Hikvision intercoms for larger systems.

Bundle inclusions:

• 1x HIK-KH6320-WTE1
• 1x HIK-KV6113-WPE1
• 2x Power supplies

IP Villa Door Station

• 2MP HD camera
• Single button
• Card reader
• Two way audio
• Built-in omnidirectional microphone
• Built-in loudspeaker
• Supports wireless network (Wi-Fi)
• Microphone and door LED indication
• Noise suppression and echo cancellation
• Low illumination
• Access control functions
• Tamper proof
• Web-based interface

IP Room Station

• 7 inch colour touch screen
• Built-in omnidirectional microphone
• Built-in loudspeaker
• Noise suppression and echo cancellation
• Stores messages and captured pictures in the TF card (if inserted)
• Remote unlocking via client software or mobile client
• View live videos of door stations and linked cameras
• Supports wireless network (Wi-Fi)

Includes two power supplies

Datasheets

• HIK-KIS603-P Datasheet.pdf

IP Villa Door Station

• Video resolution: 1920 x 1080p, 704 x 576
• Video coding: H.264
• Relay output: 1
• Lens: H: 129 degrees, V: 75 degrees
• RS-485: for secure door module
• Network protocol: TCP/IP, RTSP
• Weatherproof rating: IP65
• Mount: Surface
• Power: 12V DC
• Power draw: less than 10W
• Dimensions: 138 x 65 x 27mm

IP Room Station

• Display resolution: 1024 x 600
• Display size: 7 inch
• Alarm input: 8 channels
• Relay output: 2
• Dimensions: 200 x 140 x 15.1mm
